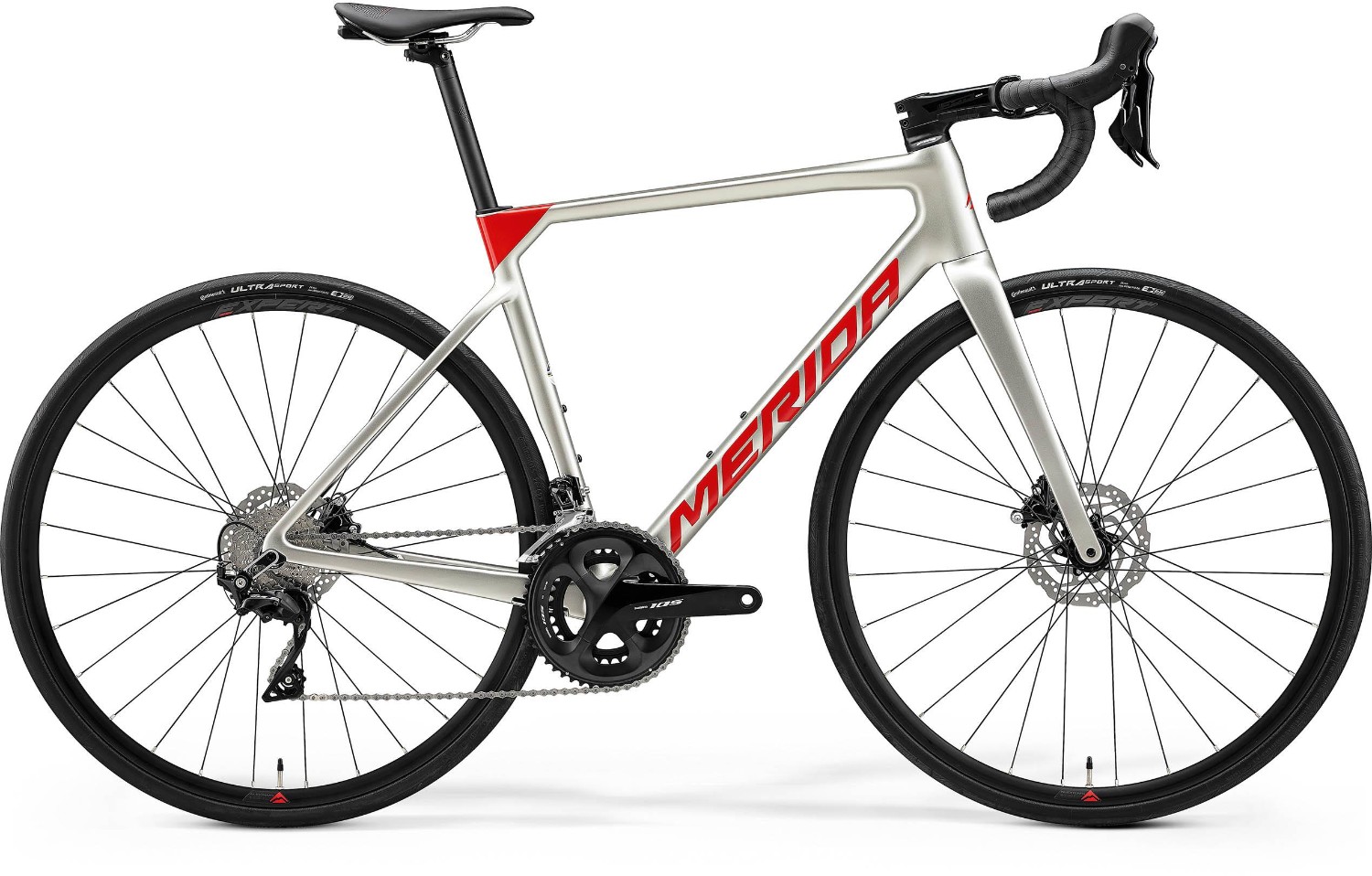

Merida Scultura 4000 2023 - Road Bike
- Frame: CF3 carbon, race geometry, internal cable routing, 12mm through axles, flat mount rear brakes, and disc cooler technology.
- Fork: Scultura CF3 disc with carbon material, disc cooler technology, and a max tyre size of 700 x 30c.
- Drivetrain: Shimano 105 22-speed drivetrain with a 50-34 tooth chainset for versatile performance.
- Brakes: Shimano 105 hydraulic disc brakes with 160mm rotors for precise stopping power.
- Wheels: Merida Expert SL rims with 17mm inner rim width, 22mm depth, and tubeless-ready capability.
- Tyres: Continental Ultra Sport III, 700 x 28c, featuring Kevlar bead for durability and folding convenience.
- Seat Post: Merida Expert CC carbon seat post with a 27.2mm diameter and 15mm layback.
- Saddle: Merida Expert SL V-mount saddle, including a Merida minitool.
- Additional Feature: FSA ACR headset, Shimano 105 shifters, and a pressfit 86.5 bottom bracket for enhanced performance.
- Finance Option: Available with 0% APR finance, making it accessible for all riders.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF3 carbon, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c |
| Fork | Scultura CF3 Disc; Material - carbon; Max. tyre size: 700 x 30c; Disc cooler technology |
| Headset | FSA ACR |
| Stem | FSA SMR ACR; aluminium; -6 degree rise. Stem length: 90mm (XXS/XS), 100mm (S), 110mm (M), 120mm (L/XL) |
| Bars | Merida Expert SL; aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL) |
| Front Brake | Shimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano 105 |
| Front Mech | Shimano 105 |
| Rear Mech | Shimano 105; GS |
| Shifters | Shimano 105 disc |
| Speed | 22 |
| Rims | Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | VP CLK170F; 100x12mm; 28 spokes, Center lock. With Merida Expert SL axle |
| Rear Hub | VP CLK270R; 142x12mm; 28 spokes; Center lock. With Merida Expert SL axle; including removable lever; 6/4mm allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Continental Ultra Sport III; 700 x 28c; Kevlar bead, folding; |
| Rear Tyre | Continental Ultra Sport III; 700 x 28c; Kevlar bead, folding; |
| Seat Post | Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back |
| Saddle | Merida Expert SL; V-mount; including Merida minitool |
| Chainset | Shimano 105; 50-34 tooth chainset. Crank length: 165mm (XXS,XS), 170mm (S), 172.5mm (M), 175mm (L,XL) |
| Bottom Bracket | Shimano BB71-41B, Pressfit 86.5 |
| Chain | KMC X11 |
| Cassette | Shimano CS-R7000 11-30 teeth |
| Pedals | Resin Platform |
See the table below to find the right size.
Road Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
|
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
