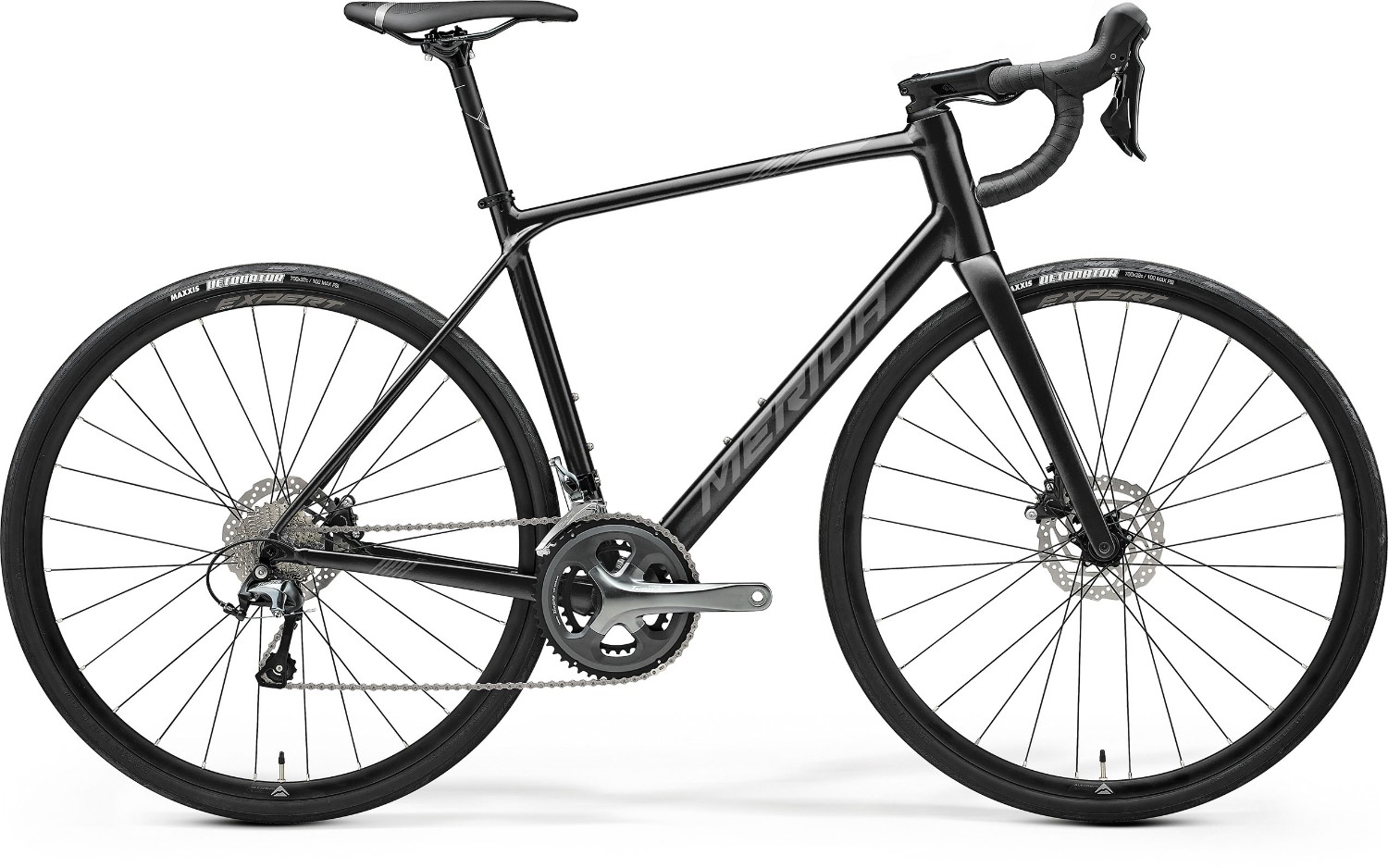

Merida Scultura Endurance 300 2024 - Road Bike
- Frame: Lite aluminium, endurance geometry, internal cable routing, 12mm through axles, bb86, flat mount rear brakes.
- Fork: Scultura endurance cf3 disc; full carbon, tapered steerer, disc cooler; max tyre size: 700 x 35c.
- Drivetrain: Shimano Tiagra, 20-speed.
- Brakes: Shimano Tiagra hydraulic disc, calipers with CNC'd aluminium Disc Cooler fins.
- Wheels: Merida expert slii; 23mm inner rim width; 25mm rim depth; aluminium; tubeless ready.
- Standout Feature: Comfort-oriented design, flat mount hydraulic disc brakes.
- Finance: Available with 0% APR.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite Aluminium, endurance geometry. Internal cable routing, 12mm through axles, BB86, flat mount rear brakes, 1 1/2" headtube. Max tyre - 35c, (32c with mudguards) |
| Fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard) |
| Headset | Merida-8158 Semi Integrated HS |
| Stem | Merida Expert CW; aluminium; 31.8mm diameter; -7 degree rise. Length 80mm (XXS), 90mm (XS), 100mm (S,M), 110mm (L), 120mm (XL) |
| Bars | Merida Expert SLII; aluminium; Width: 380mm(XXS), 400mm (XS,S), 420mm (M,L), 440mm (XL) |
| Front Brake | Shimano Tiagra hydraulic disc brake caliper with Shimano RT10 160mm rotor |
| Rear Brake | Shimano Tiagra hydraulic disc brake caliper with Shimano RT10 160mm rotor |
| Brake Lever | Shimano Tiagra |
| Front Mech | Shimano Tiagra |
| Rear Mech | Shimano Tiagra; GS |
| Shifters | Shimano Tiagra disc |
| Speed | 20 |
| Rims | Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Joytech D981SB; 100x12mm; 28 spokes; Centerlock with Merida Comp SL axle |
| Rear Hub | Joytech D872SB; 12x142mm; 28 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Detonator; 700 x 32C; Kevlar bead, folding |
| Rear Tyre | Maxxis Detonator; 700 x 32C; Kevlar bead, folding |
| Seat Post | Merida Comp CC; aluminium; 27.2mm diameter; 5mm lay back |
| Saddle | Merida Comp SL with V-mount |
| Chainset | Shimano Tiagra; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (M,L), 175mm (XL) |
| Bottom Bracket | Shimano BB71-41B, Pressfit 86.5 |
| Chain | KMC X10 |
| Cassette | Shimano CS-HG500; 12-28 teeth; 10 speed |
| Pedals | Not Included |
See the table below to find the right size.
Road Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
|
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
