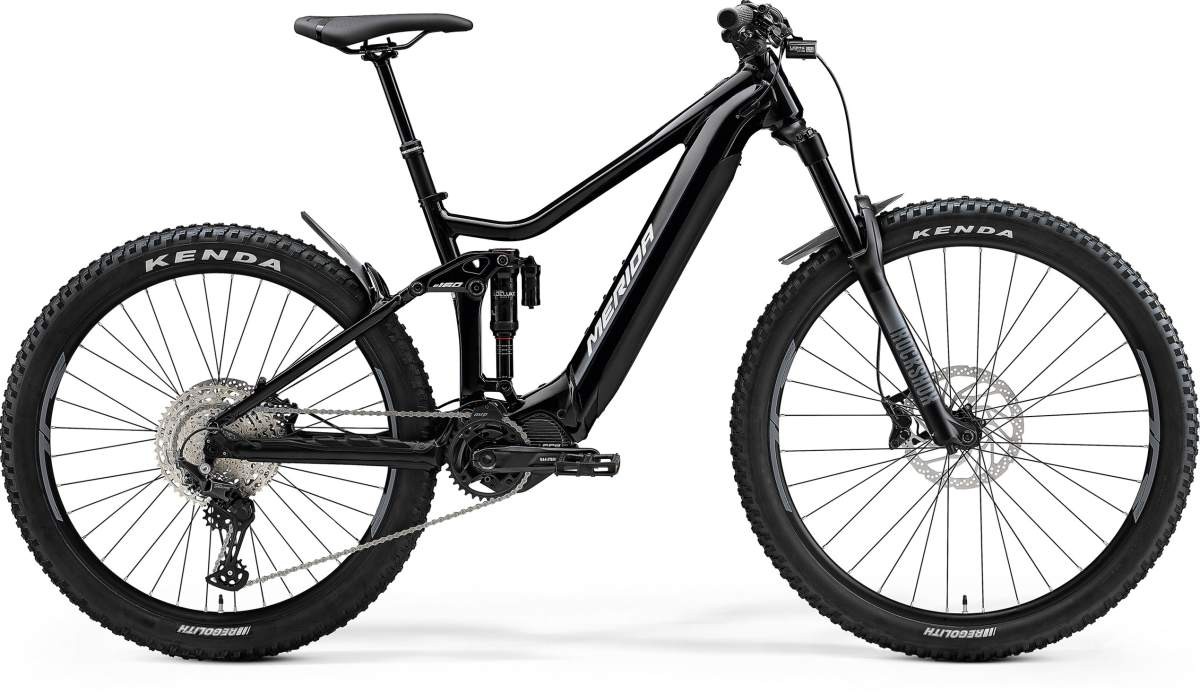

Merida eOne-Sixty 500 SE 2024 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
| Fork | Rock Shox 35 Gold RL; Air; 160mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.8" |
| Rear Shock | RockShox Deluxe Select+; platform |
| Headset | Merida-8152 |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor |
| Rear Brake | SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor |
| Brake Lever | SRAM DB8 |
| Rear Mech | SRAM NX Eagle |
| Shifters | Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed |
| Speed | 12 |
| Rims | Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt |
| Rear Hub | Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Front Tyre | Kenda Regolith; 29" x 2.4"; wire bead |
| Rear Tyre | Kenda Regolith; 27.5" x 2.6"; wire bead |
| Seat Post | JD Components; 30.9mm diameter; in-line; XS/S 100mm - M/L 125mm - XL 150mm seat post travel |
| Saddle | Merida Comp SL with V-mount |
| Chainset | SAMOX EMA04; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | SRAM SX Eagle |
| Cassette | SRAM PG-1210 Eagle; 10-50 teeth; 12 speed |
| Pedals | VP Components - VPE-537 |
| Battery Size (WH) | 630Wh |
| Motor | Shimano EN806; 630Wh internal battery, Shimano Steps EP6; 85Nm |
| User Interface | Shimano SC-EN600 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
