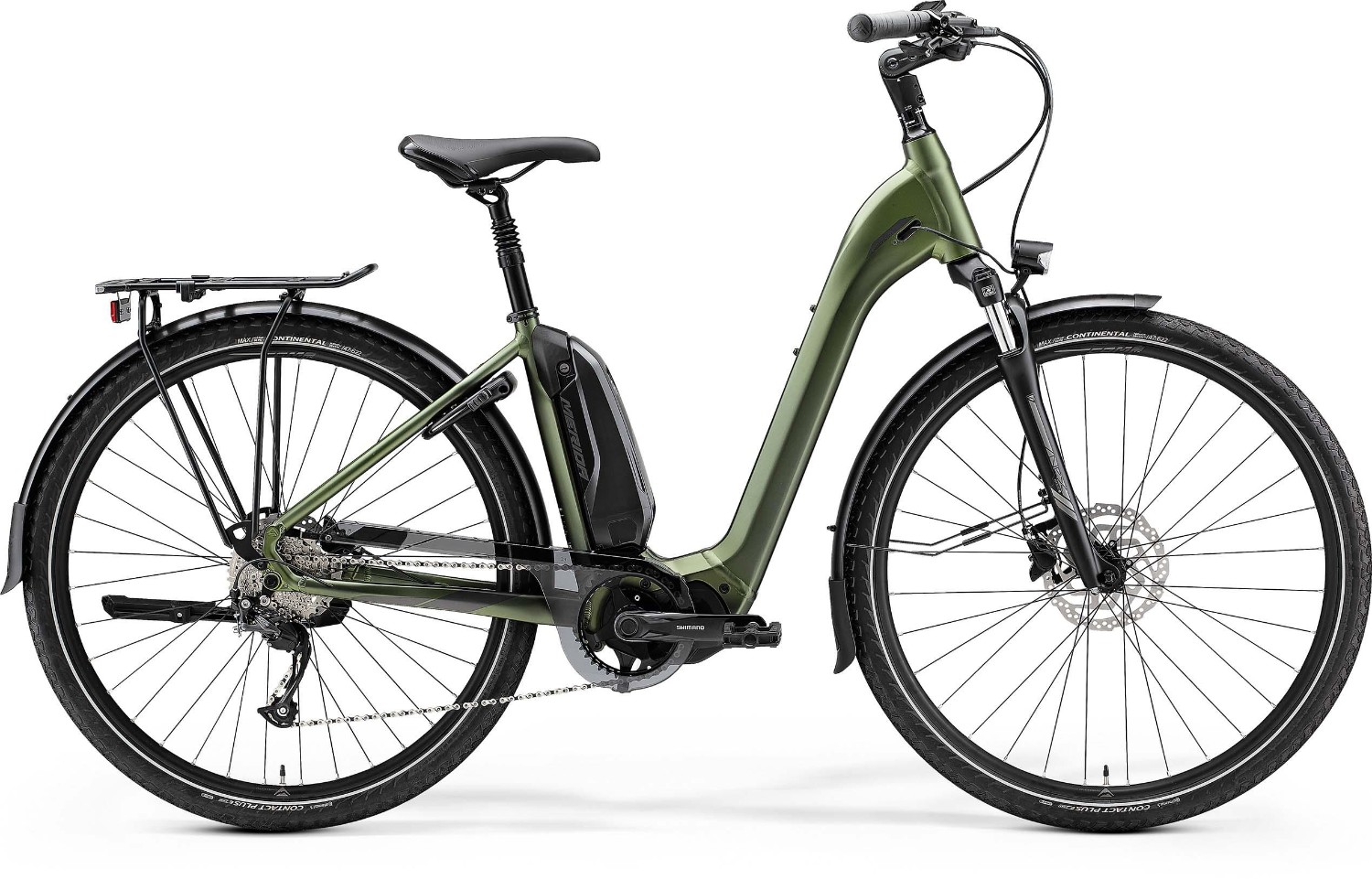

Merida eSpresso City 300SE EQ 2023 - Electric Hybrid Bike
The Merida eSpresso City electric hybrid bike has one of the lowest, widest step throughs available. It's the perfect partner for urban riding, offering comfort and practicality.
Key features:
- Hydroformed 6066 triple butted aluminium frame
- Suntour NEX forks with 63mm of travel to smooth out the road
- Shimano 9-speed gears give smooth and consistent shifting
- Shimano hydraulic disc brakes offer all weather stopping power
- Sizes: XS (41.5cm) , S (45cm) , M (49cm) , L (53cm)
- Colours: Green/Grey
- The Merida Espresso City 300SE EQ is available with 0% APR finance
Drive information:
- Motor: Shimano E8014; 418Wh battery, Shimano Steps E5000; 40Nm
- Battery: 418 Wh
- Interface: Shimano SC-E5000
Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
All use a Powerful Shimano STEPS drive unit with a semi integrated battery that's mounted low to aid balance and emulate a natural riding feel. Integrated battery versions are available.
Strong but controllable hydraulic disc brakes help you to stop with ease.
A tapered head tube delivers confidence inspiring handling.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | City Lite- Hydroformed 6066 triple butted aluminium, external battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 42c with mudguards |
| Fork | Suntour NEX-PM-DS; Coil; 63mm travel. Max. tyre size: 700 x 48c |
| Headset | Merida 2346 Neck |
| Stem | Merida Expert; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (XS/S/M), 110mm (L/XL) |
| Bars | Merida Expert; aluminium; 640mm wide; 35mm rise |
| Front Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor |
| Rear Brake | Shimano BR-MT200 hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano MT-200 |
| Rear Mech | Shimano Altus M2000; SGS |
| Shifters | Shimano Altus rapidfire |
| Speed | 9 |
| Rims | Merida Comp TK; 20mm inner rim width; aluminium |
| Front Hub | Shimano TX505; 100x9mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400; 142x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Spokes | Black stainless |
| Front Tyre | Continental Contact Plus; 622-47; wire bead; reflective stripe |
| Rear Tyre | Continental Contact Plus; 622-47; wire bead; reflective stripe |
| Seat Post | JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel |
| Saddle | Merida Expert TK; V-mount |
| Chainset | Shimano CRE50; 38 tooth chainring with Shimano FC-E5010; 170mm length crank and chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC e9S |
| Cassette | Shimano HG400 11-36 teeth |
| Pedals | VP Components, VPE-891 |
| Battery Size (WH) | 418 Wh |
| Motor | Shimano E8014; 418Wh battery, Shimano Steps E5000; 40Nm |
| User Interface | Shimano SC-E5000 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
