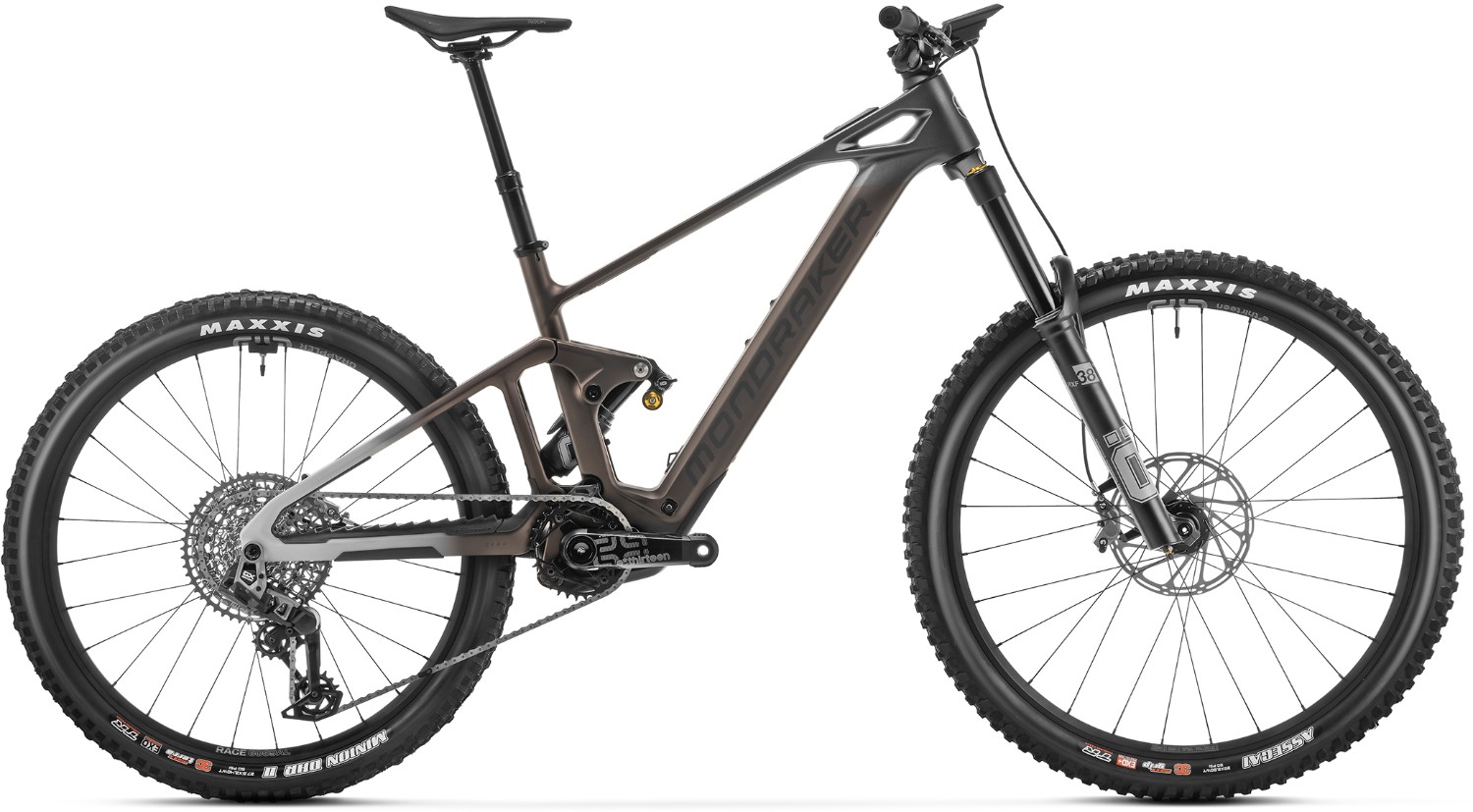

Mondraker Dune RR Mountain Bike 2025 - MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel |
| Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm |
| Rear Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Bars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake Lever | Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust |
| Rear Mech | Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
| Shifters | Sram Eagle AXS Pod MMX, 12s |
| Speed | 12 |
| Rims | e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Saddle | Fizik Terra Aidon Slim X5 |
| Chainset | E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
Dune Sizing
See the table below to find the right size Mondraker Dune Mountain Bike.
|
Height |
<165cm |
165 – 170cm |
170 – 175cm |
175-180cm |
180 – 185cm |
185 -190cm |
190 – 195cm |
>195cm |
|
Size |
Small |
Small/Medium |
Medium |
Medium/Large |
Large |
Large/X Large |
X Large |
X Large |
Read our bike size guide for more information on sizing.
Dune Geometry
|
Frame Size |
Small |
Medium |
Large |
X Large |
|
Seat Tube Length |
380mm |
420mm |
470mm |
510m |
|
Top Tube Length |
610mm |
636mm |
659mm |
680mm |
|
Bottom Bracket Drop |
-1mm |
-1mm |
-1mm |
-1mm |
|
Bottom Bracket Height |
347mm |
347mm |
347mm |
347mm |
|
Chain Stay Length |
434mm |
434mm |
434mm |
434mm |
|
Seat Tube Angle, Actual |
68.5 Degrees |
68.5 Degrees |
68.5 Degrees |
68.5 Degrees |
|
Seat Tube Angle, Effective |
74.5 Degrees |
74.5 Degrees |
74.5 Degrees |
74.5 Degrees |
|
Head Tube |
65.5 Degrees |
65.5 Degrees |
65.5 Degrees |
65.5 Degrees |
|
Fork Offset |
37mm |
37mm |
37mm |
37mm |
|
Wheelbase |
1190mm |
1215mm |
1240mm |
1264mm |
|
Head Tube Length |
110mm |
110mm |
120mm |
120mm |
|
Reach |
455mm |
470mm |
490mm |
510mm |
|
Stack |
595mm |
595mm |
603mm |
612mm |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
