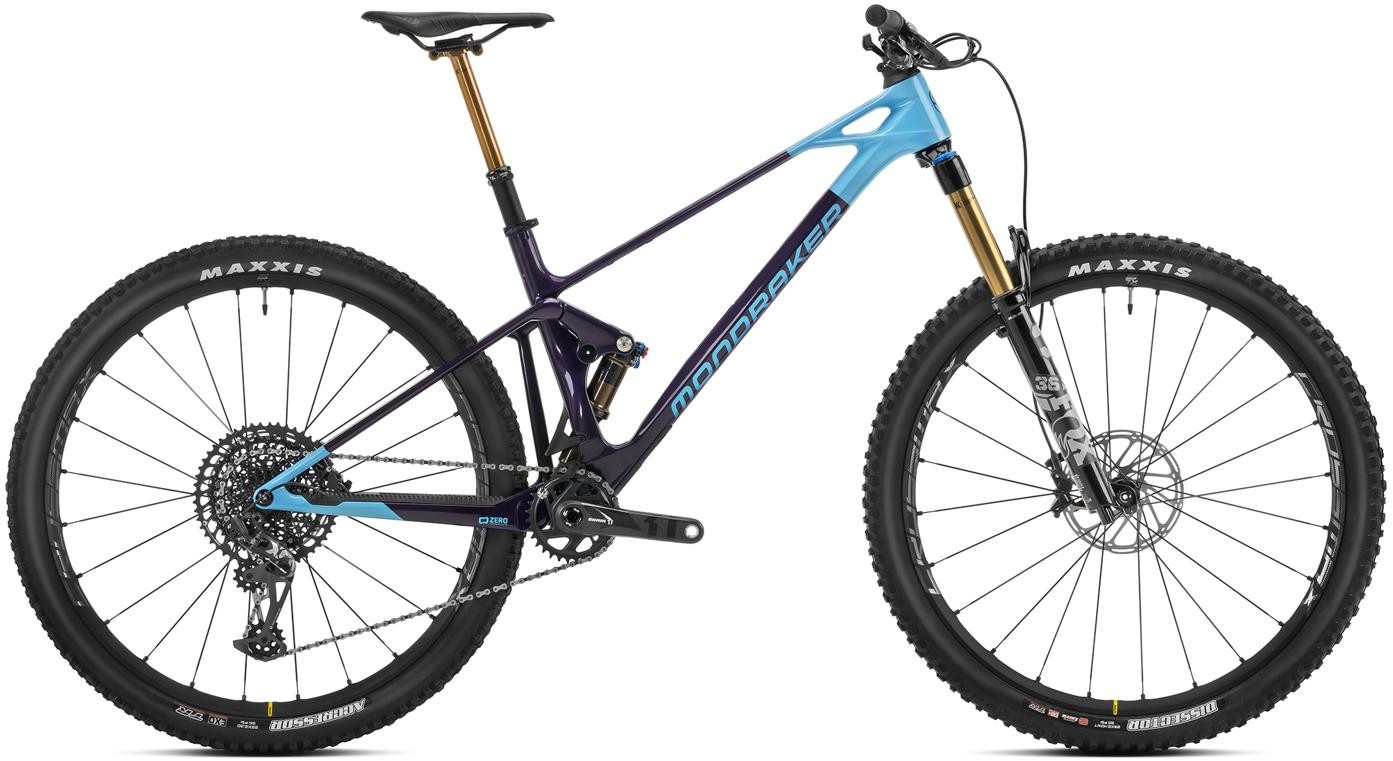

Mondraker Raze Carbon RR Mountain Bike 2023 - Trail Full Suspension MTB
With 150mm of travel up front and 130mm at the rear, the Mondraker Raze Carbon RR is no ordinary trail bike. Its kinematics and the specific settings of its suspensions give it capabilities never seen before in the discipline. What’s more it boasts the market leading technologies only found on our range-topping bikes: Stealth Air Full Carbon, Zero Suspension System, Forward Geometry and Mind. Its carbon frame is hand built using layers which are carefully arranged, depending on the area of the frame in question, to achieve specific purposes and objectives thus achieving a stylized structure that provides maximum comfort and vibration damping along with an extremely light weight combined with very high strength. Last season it was chosen as the best trail bike of 2022 by the prestigious MBR (Mountain Bike Rider) magazine in the United Kingdom.
Key features:
- Raze 29 Stealth Air full Carbon frame
- Fox 36 29 Float GRIP2 Factory Kashima forks with 150mm of bump soaking travel
- Fox Float DPS Factory Kashima shock takes care of the 130mm of rear travel
- Sram 1x12 gears give enough range to climb anything
- Sram G2 brakes offer all-weather stopping power
- Sizes: S, M, L, XL
- Colours: Dark purple/Light blue
- The Mondraker Raze Carbon RR is available with 0% APR Finance
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, dedicated 1x drivetrain design, HHG internal cable routing |
| Fork | Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Rear Shock | Fox Float DPS Factory Kashima evol LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Bars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram G2 RS, SwingLink, tool-free reach adjust |
| Rear Mech | Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Speed | 12 |
| Rims | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Front Hub | Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts |
| Spokes | 24 straight-pull double butted spokes |
| Front Tyre | Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Seat Post | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm |
| Saddle | Fizik Antares R7 |
| Chainset | Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm . 32T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | Sram GX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
