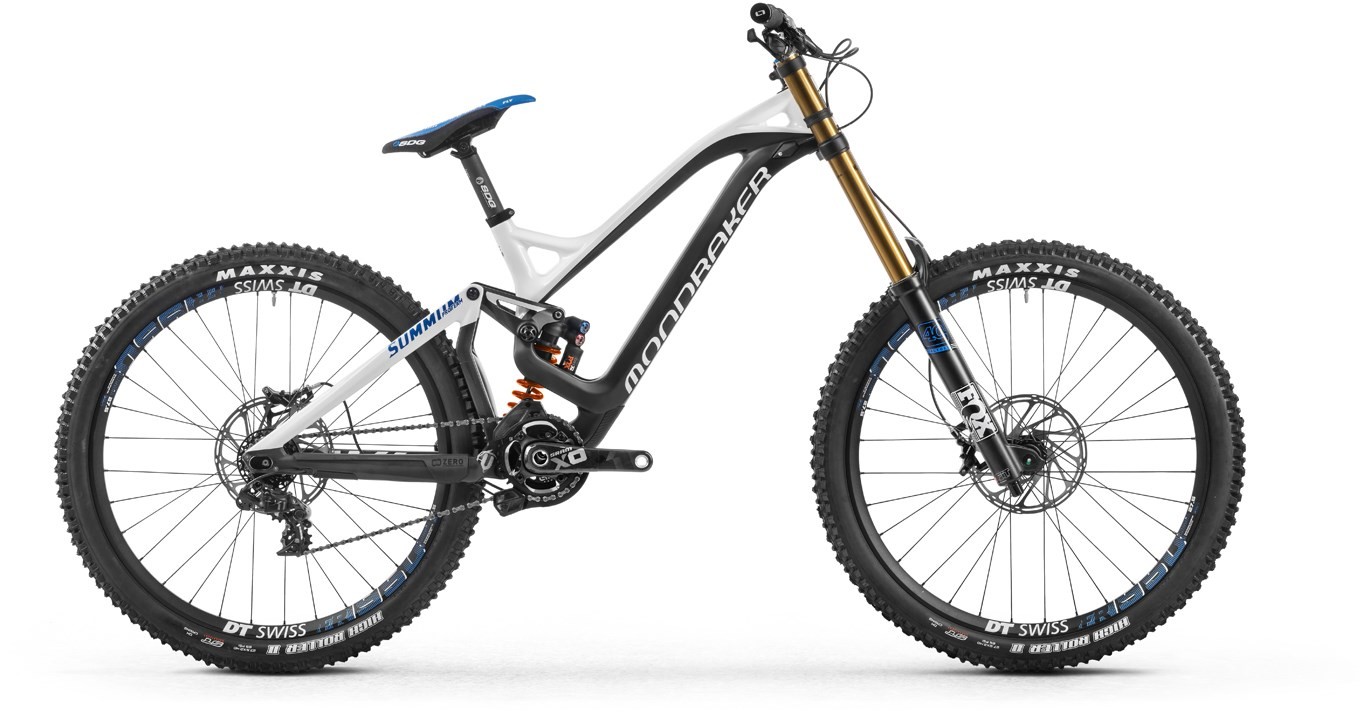

Mondraker Summum Carbon Pro Team 27.5" Mountain Bike 2016 - Full Suspension MTB
More Than Fast
The beating heart of Mondraker's aggresive carbon lineup, the Summum sets the benchmark for other carbon DH rigs to follow.
When the Mondraker Summum first appeared on the start line of the World Cup downhill circuit a new standard in performance was immediately set. Designed to be fast and win races the original Summum was constructed around a cleverly designed aluminium main frame which delivered riders a strong, high performance downhill bike which was not only blisteringly fast but out-of-the-box offered an overall bike weight thought previously to be the reserve of the long travel trail bikes crowd.
New bearings, oversized axles and a new lower linkage are held in place with conical expansion bolts for maximum stiffness while out back Mondraker’s proven Zero Suspension System keeps the 205mm of rear wheel travel in check.
Constructed from Stealth profile carbon fibre the latest Summum draws on everything the Alicante based brand has learned from years racing on the World Cup circuit and takes into account everything they have learnt in developing carbon fibre bicycles.
The Summum also features Mondraker’s forward thinking, Forward Geometry concept which offers riders more control and stability at all speeds by lengthening the top tube and shortening the bikes stem length. This radical geometry development originally set Mondraker apart from the crowd when it was released several seasons ago and has been used on award winning trail bikes and World Cup winning machines since that date.
As ridden by Danny Hart and the MS Mondraker World Cup DH Team .
Key Features:
- Exclusive Stealth Carbon Fibre frame construction
- Optimised Zero Suspension System – 205mm Rear travel
- Forward Geometry with FG 20-30 stem
- 27.5” wheels
- Adjustable Head angle (63 degree with +/1.5 degree adjustment cups)
- Adjustable wheel base (445, 450, 455, 460mm)
- Internal Cable routing – HHG Hidden Housing Guide
- BB83
- New lower linkage
- CNC Machined linkage plates
- Oversized pivot axles
- Rear shock fender integrated into frame design
- Post Mount 8 Disc Mount
- Strategically placed frame protectors
- 150x12mm Rear Axle
- Sizes – S/M/L
- Weight - 15.1kg
The Mondraker Summum Carbon Pro Team 27.5 2016 Features are:
Frame: Summum 27.5 Stealth Full Carbon Zero Suspension System FG 205mm
Rear Shock: Fox DHX2 Factory Kashima SLS Spring 222x70mm
Fork: Fox 40 27.5 Float FIT HSC LSC Factory Kashima 20mm 1-1/8” 203mm
Headset: FSA N¼9 1-1/8” w/Adjustable Geometry kit
Bars: Renthal Fatbar 30mm rise, 780mm length
Stem: Onoff Stoic DH Integrated FG 20-30mm
Speed: 7
Front Mech: Chainguide E.13 LG1R Carbon
Rear Mech: Sram X01 DH Type2.1 1x7s
Shifters: Sram Trigger X0 DH 7s
Chainset: Sram X0 DH 1.1 165mm 34T
Bottom Bracket: Sram GXP TM 83mm
Cassette: Sram XG-795 10-24T 7s
Chain: Sram PCX1 11s
Front Brake: Sram Guide RSC 200mm
Rear Brake: Sram Guide RSC 200mm
Rims: DT Swiss FR1950 27.5 wheelset
Front Hub: DT Classic 240 20mm
Rear Hub: DT Classic 240 12X150mm XXD freehub
Tyres: Maxxis Minion DHR II SuperTacky compound 27.5x2.4 Front, Maxxis Minion DHR II SuperTacky compound 27.5x2.4 Rear
Seatpost: SDG I-Beam SP-951 Carbon 31.6 300mm
Pedals: Not Included
Weight: 15.1 kg
Occasionally, without notice, manufacturers change product design and/or specifications.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Mondraker Summum Carbon Pro Team 27.5" Mountain Bike 2016 - Full Suspension MTB.
This product is no longer available.
