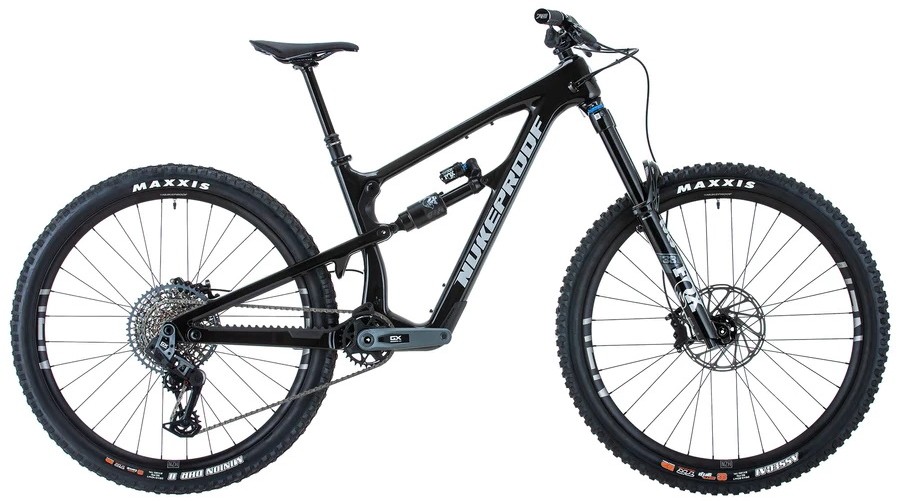

Name: Nukeproof Mega 290 Elite Carbon Mountain Bike 2023 - Enduro Full Suspension MTB
Brand: Nukeproof

The MegaV4: born through Evolution, not revolution. The Nukeproof Mega: an “enduro bike” that was ahead of it’s time. Originally developed and later named after the race it was designed for on the infamous trails of Alp D’Huez. To date the Mega platform is one of the most highly decorated race bikes on the market: with the 2017, 2018 (x2) and 2019 Enduro World Series Titles; a Downhill World Championship top 10 and a Silver Medal at the 4x World Championship to its name. (As well as a host of other national and international victories and titles!)

Since 2009 the Nukeproof Mega has been constant path of development to meet the evolving demands of our riders and customers alike. Our team are relentlessly striving for improvements and with each generation the Mega has been chiselled and shaped into today’s thoroughbred Enduro race bike. With the launch of the 2020 Carbon Mega 290c, you could forgive our designers for resting on their laurels. However, as Nukeproof products are developed between the tapes, there is a constant desire to hone and refine in order to give our athletes and riders the best possible chance of standing on top of the podium. Designed as an evolution of the ultimate Enduro bike, the Mega V4 has been fully reimagined to offer optimised sizing/fit, improved Geometry and suspension kinematics. Most importantly you can now fit a water bottle inside the main front triangle!

Frame Construction: To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The carbon swingarms helps reduce the unsprung weight on the rear of the bike. It is available for 27.5”, 297 or 29” wheel sizes. These are totally different, compromise free frames that were designed and developed at the same time. Each frame is simply tailored around each wheel size so that you can get the most out of every ride.

Updated Sizing/Geometry: Whilst humans may not have changed size much in recent years; the bikes they choose to ride most certainly have. To ensure a perfectly dialled fit we now offer the 297 bikes in S, M, or L sizes and the 290 bikes in M, L, XL or XXL. Lower, longer, steeper and slacker! Our new geometry is now designed around the saddle offset for each size to optimise seated weight distribution. This results in steeper seat angles across the board but especially on larger sizes for taller riders. This in turn results in longer reach figures to ensure a comfortable cockpit on each size. To further aid the perfect fit we have also used shorter seat tubes which are designed to maximise seat post insertion depths. Finally, all new Mega bikes are now designed to use short offset forks to further improve both climbing and descending capabilities.

Suspension Design: To step-change the Mega’s suspension design we went back to the drawing board and started afresh. We redesigned the Mega 4 bar horst linkage to be super supple over small bumps, progressive and supportive throughout the mid stoke for support when pedalling, cornering and pumping, with increased end stroke leverage to allow more tuning options with volume spacers. The kinematic is designed to have higher levels of anti-squat for climbing gears but this reduces as you drop down the cassette. The result is a bike that is more confidence inspiring everywhere on the hill. It behaves itself on the climbs; yet can still be thrashed through the roughest and most technical terrain on the way back down.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Mega 290 Carbon
Fork	Fox 38 Float Performance Elite Grip 2 170mm
Rear Shock	Fox Float X2 Performance
Headset	Nukeproof
Stem	Nukeproof Horizon 45mm
Bars	Nukeproof Horizon
Front Brake	Sram DB8 200mm
Rear Brake	Sram DB8 200mm
Brake Lever	SRAM DB8
Rear Mech	Sram GX Eagle T-Type
Shifters	Sram POD T-Type
Speed	12
Rims	Nukeproof Horizon v2
Front Hub	Nukeproof Horizon v2
Rear Hub	Nukeproof Horizon v2
Front Tyre	Maxxis Assegai MaxxGrip DD TR
Rear Tyre	Maxxis Minion DHR MaxxTerra DD TR
Seat Post	Brand-X Ascend
Saddle	Nukeproof
Chainset	Sram GX Eagle T-Type 170mm 30t
Chain	Sram T-Type
Cassette	Sram GX T-Type 11-52t
Pedals	Resin Platform

Height	Bike Size	Mountain Bike Size
4’8” – 5’1” 143 – 155 cm	XXS	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	22” (56 cm)
