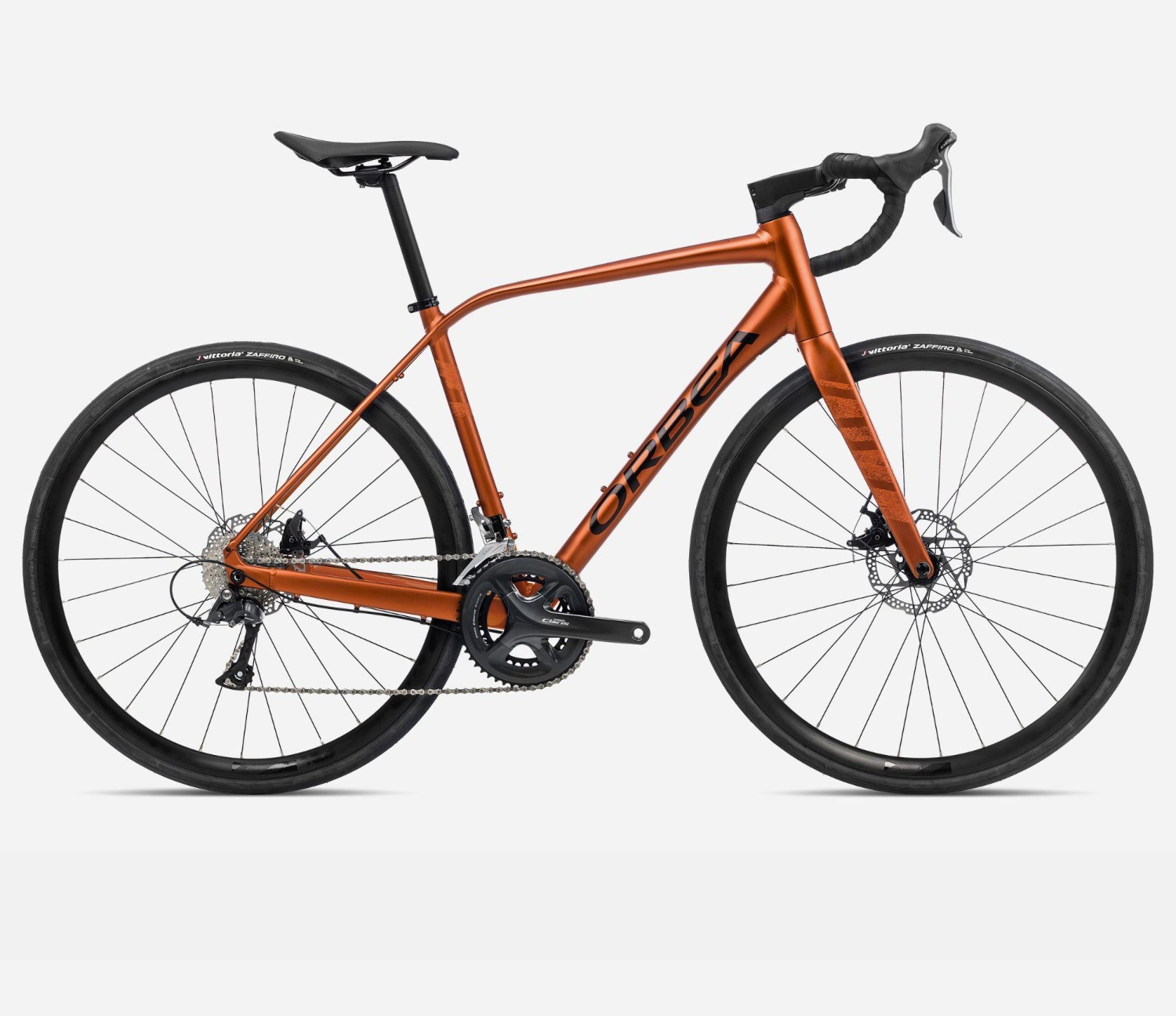

Orbea Avant H60 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system. |
Fork | Orbea carbon fork 2021, aluminum steerer, 1-1/8" head tube |
Headset | Acros Alloy 1-1/2" Internal Cable Routing |
Stem | OC Road Performance RP21, -6º |
Bars | OC RP30-R Road Performance Riser, Reach 70, Drop 125, Rise 15, Flare 5º |
Front Brake | Jagwire RideRever Mechanical Disc |
Rear Brake | Jagwire RideRever Mechanical Disc |
Front Mech | Shimano Claris FD-R2000-F |
Rear Mech | Shimano Claris RD-R2000-GS |
Shifters | Shimano Claris ST-R2000 |
Speed | 16 |
Rims | Orbea R19 alloy TLR |
Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Solid |
Front Tyre | Vittoria Zafiro V Rigid bead 700x28c |
Rear Tyre | Vittoria Zafiro V Rigid bead 700x28c |
Seat Post | Alloy 27.2 Offset 20 |
Saddle | Fizik Aliante R5 |
Chainset | Shimano Claris R2000 34x50t |
Chain | KMC X8 |
Cassette | Shimano HG50 11-32t 8-Speed |
Avant Sizing
See the table below to find the right size Orbea Avant.
Size |
47 |
49 |
51 |
53 |
55 |
57 |
60 |
Height in CM |
155-160 |
160-166 |
167-172 |
173-179 |
180-185 |
186-191 |
192-207 |
Height in Inches |
61.1”-63.0” |
63.0”-65.4” |
65.7”-67.7” |
68.1”-70.5” |
70.9”-72.8” |
73.2”-75.2” |
75.6”-81.5” |
Read our bike size guide for more information on sizing.
Avant Geometry
|
47 |
49 |
51 |
53 |
55 |
57 |
60 |
Seat Tube |
410 |
440 |
470 |
490 |
510 |
530 |
560 |
Top Tube |
508 |
520 |
533 |
547 |
559 |
578 |
592 |
Head Tube |
108 |
121 |
138 |
158 |
181 |
200 |
221 |
Chainstay |
415 |
415 |
415 |
415 |
415 |
415 |
415 |
BB Height |
270 |
270 |
270 |
272 |
272 |
272 |
272 |
BB Drop |
75 |
75 |
75 |
73 |
73 |
73 |
73 |
Wheelbase |
978 |
979 |
989 |
992 |
1002 |
1013 |
1025 |
Head Angle |
71 |
71.5 |
71.9 |
72.4 |
72.6 |
72.8 |
73 |
Seat Angle |
74.5 |
74 |
73.75 |
73.5 |
73.5 |
73 |
73 |
Reach |
727.5 |
750 |
771.6 |
797.3 |
814 |
832,4 |
857,3 |
Standover |
520 |
535 |
553 |
572 |
595 |
614 |
635 |
Stack |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
Read our Road Bike Geometry Explained guide for more information on Road geometry.
