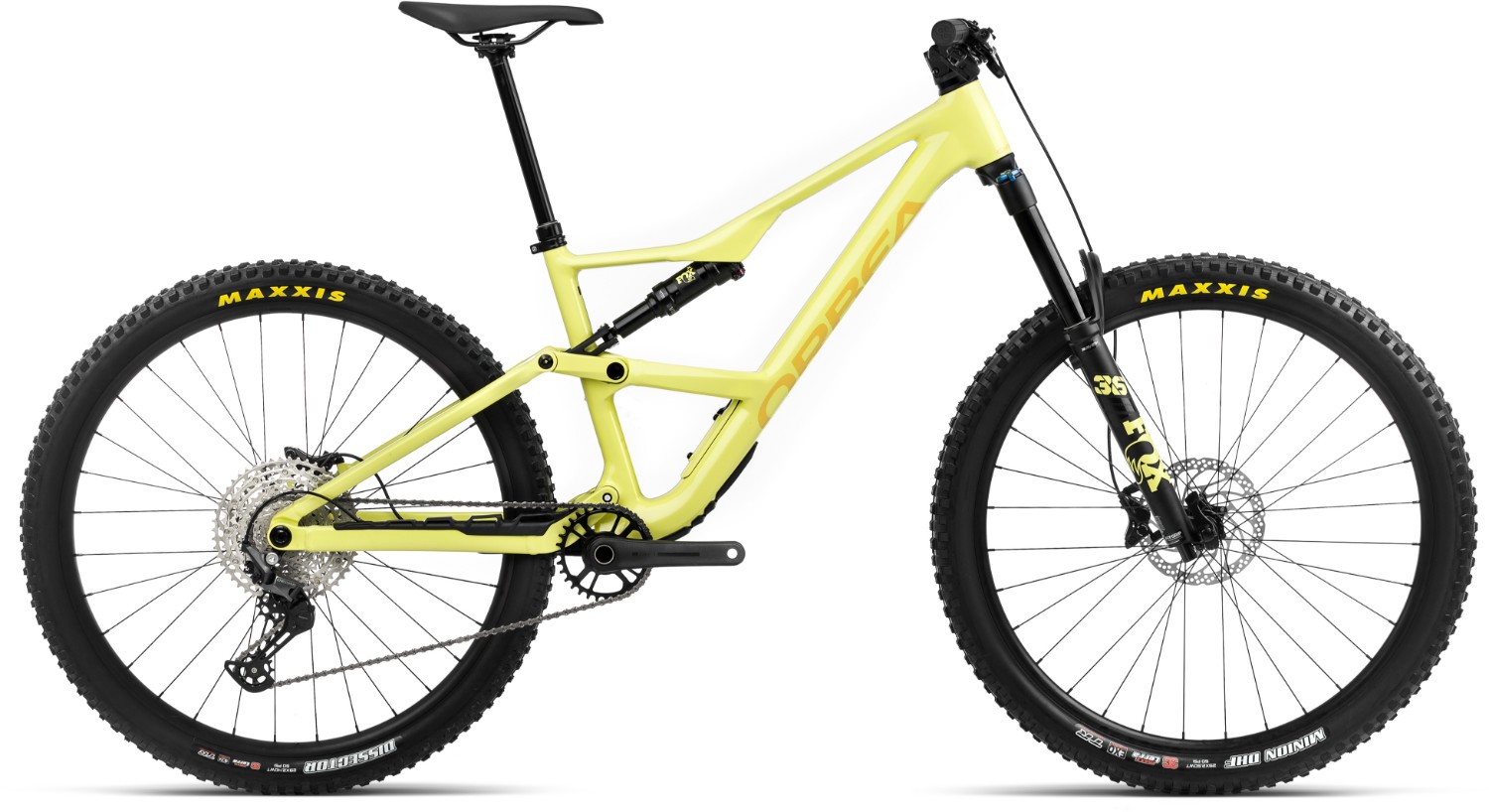

Orbea Occam LT H30 Mountain Bike 2024 - Trail Full Suspension MTB
The Orbea Occam LT H30 full-suspension MTB is your ticket to an incredible trail experience. Crafted with precision, this mountain bike is ready to conquer a wide range of terrains. The Orbea Occam Hydro frame features Concentric Boost 12x148 rear axle, ensuring stability and control on the trails. Its pure trail geometry, internal cable routing, and asymmetric design make for a sleek, efficient ride. With a Fox 36 Float Performance fork, providing 160mm of front suspension travel, and a Fox Float Performance 2-position rear shock with custom tune and 210x55mm dimensions, this bike offers a smooth and responsive ride.
Key Features:
- Frame: Orbea Occam Hydro with Concentric Boost 12x148 rear axle, pure trail geometry, and internal cable routing.
- Front Suspension: Fox 36 Float Performance 160 with Grip 3-position QR15x110 for precise handling.
- Rear Suspension: Fox Float Performance 2-position Evol with custom tune and 210x55mm dimensions.
- Drivetrain: Shimano Deore M6100 components for reliable gear changes.
- Brakes: Shimano MT420 hydraulic disc brakes for confident stopping power.
- Wheels: Alloy, tubeless-ready 29" rims ensure durability and control.
- Tyres: Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra EXO TR tires for exceptional traction.
- Standout Feature: Versatile design for tackling diverse terrains.
- Finance Options: Available with 0% APR finance for your convenience.
The Orbea Occam LT H30 is tailor-made for riders who crave versatility and performance. It can handle 140mm or 150mm of front and rear travel, allowing you to conquer challenging trails with ease. Whether you prefer an air or coil shock, this bike's progressive rear suspension is up for the task.
This bike is your ultimate companion for taking on technical descents, powering through steep climbs, and enjoying the flow of the trails. With precision engineering and adaptability, the Occam LT H30 is the perfect choice for riders seeking an exceptional all-around trail experience.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool |
| Fork | Fox 36 Float Performance 160 Grip 3-Position QR15x110 |
| Rear Shock | Fox FLOAT Performance 2-Position Evol custom tune 210x55mm |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano MT420 Hydraulic Disc |
| Rear Brake | Shimano MT420 Hydraulic Disc |
| Brake Lever | Shimano MT420 |
| Rear Mech | Shimano Deore M6100 SGS Shadow Plus |
| Shifters | Shimano Deore M6100 I-Spec EV |
| Speed | 12 |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Tyre | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
| Rear Tyre | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Selle Royal 2058 DRN |
| Chainset | Forged alloy, 32t |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M6100 10-51t 12-Speed |
| Pedals | Resin Platform |
Orbea Occam LT 2024 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| S | 150 | 165 | 4'11" | 5'5" |
| M | 160 | 175 | 5'3" | 5'9" |
| L | 170 | 185 | 5'7" | 6'1" |
| XL | 180 | 195 | 5'11" | 6'5" |
What size frame do I need if I am between sizes? - read here
Orbea Occam LT 2024 Geometry
|
Size |
S (high) |
S (low) |
M (high) |
M (low) |
L (high) |
L (low) |
XL (high) |
XL (low) |
|
Seat Tube (C-T) |
405 |
405 |
415 |
415 |
430 |
430 | 460 | 460 |
|
Top Tube (Eff) |
571 |
572 |
597 |
598 |
624 |
625 | 651 | 653 |
|
Head Tube |
95 |
95 |
100 |
100 |
110 |
110 | 120 | 120 |
|
Chainstay |
440 |
440 |
440 |
440 |
440 |
440 | 440 | 440 |
|
Bb Height |
350 |
342 |
350 |
342 |
350 |
342 | 350 | 342 |
|
Bb Drop* |
28 |
36 |
28 |
36 |
28 |
36 | 28 | 36 |
|
Wheelbase |
1199 |
1200 |
1226 |
1227 |
1255 |
1257 | 1285 | 1286 |
|
Head Angle |
64.5° |
64° |
64.5° |
64° |
64.5° |
64° | 64.5° | 64° |
|
Seat Angle |
77.5° |
77° |
77.5° |
77° |
77.5° |
77° | 77.5° | 77° |
|
Reach |
435 |
430 |
460 |
455 |
485 |
480 | 510 | 505 |
|
Stack |
616 |
621 |
621 |
625 |
630 |
635 | 639 | 644 |
|
Fork Length |
575 |
575 |
575 |
575 |
575 |
575 | 575 | 575 |
|
Rake |
44 |
44 |
44 |
44 |
44 |
44 | 44 | 44 |
|
Seatpost min insertion |
410 |
410 |
420 |
420 |
435 |
435 | 460 | 460 |
