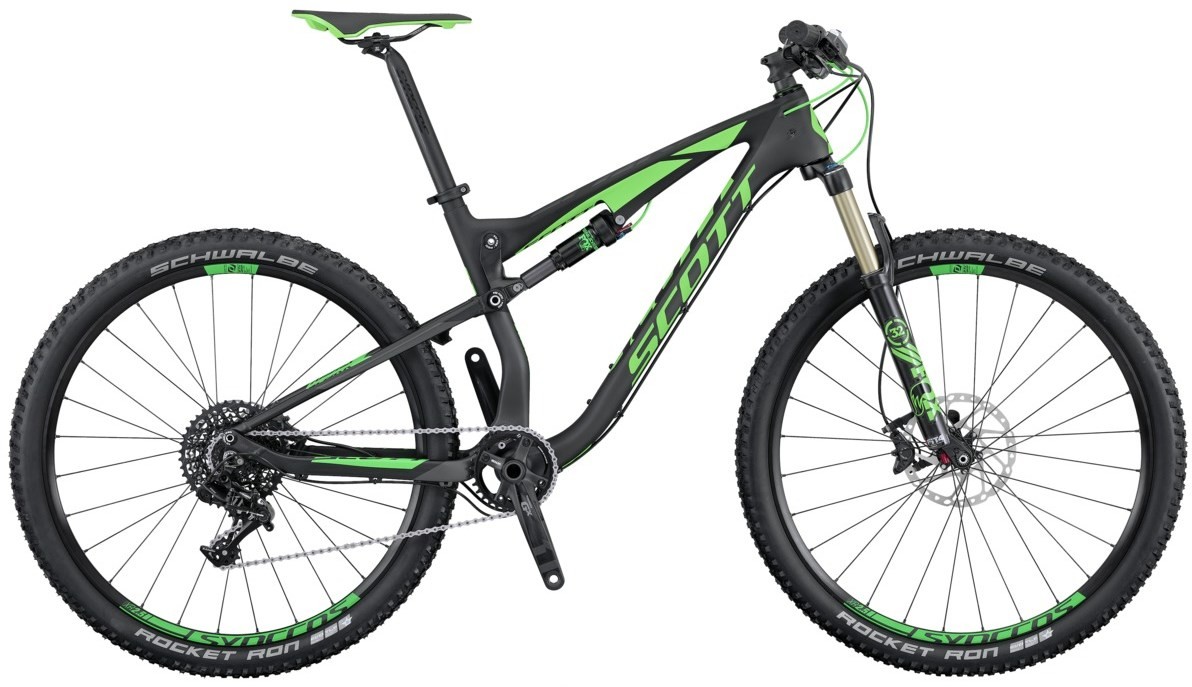

The SCOTT Spark 720 boasts a super light HMF Carbon Fiber mainframe with an Alloy swingarm. The 720 comes equipped with a custom FOX Nude shock, and our Patented TwinLoc technology, in combination with Traction Control, allowing for three travel/geometry settings to always optimize your ride. It's the perfect partner for marathons, stage races, and all day fun.'
Key Features :
Nude Shock by FOX
Our new FOX Nude is the result of our successful partnership with FOX. The Nude project is a combination of both, SCOTT's unique patents and technology as well as FOX's suspension performance and experience. The goal was to create a rear shock that gains maximum performance in every riding situation while remaining lightweight. The FOX Nude works exclusively with our patented TwinLoc system and comes stock on both 27.5" and 29" versions.
When discussing the pros and cons of the big wheeled bikes, shorter riders find themselves in an ambivalent situation. They want to benefit from the 29” wheels, but suffer from the negative effects when fit is considered. Additionally, the increase in rotational weight challenges many lower watt producing riders, so the performance gains are negated when the rider cannot accelerate the wheel system as quickly. The solution for many riders is 27,5”. The new wheelsize standard combines the best of both worlds, 29” and 26”.
Adjustable BB Height
The Spark, Genius and Genius LT employ an adjuThe Spark, Genius and Genius LT employ an adjustable geometry by way of a shock mount chip in the linkage. By changing the shock mount chip--simply removing it and flipping it in either mounting position--you affect the bottom bracket height by 7mm, which also affects the head tube angle by 0.5 degrees.
TwinLoc Lever System
Our patented Twin Loc technology now offers simultaneous control of rear shock travel and fork lockout. The open position allows full travel, front and rear. One click switches the rear shock to Traction mode, while the fork remains fully active. Click again and rear shock and fork lock at the same time. No other bike in the world offers this user friendly system. Found on the Spark & Genius and Genius LT models. Only available for Nude2 shocks on 2013 or previous year models.
IMP Carbon Mainframe
Our engineers have developed IMP™, the newest technology applied to carbon production. Our proprietary process allows for lighter construction by removing 11% of the material from the headtube intersection while increasing strength by utilizing high modulus stressed fibers for more precise fiber placement in critical areas. To compliment the IMP™ process, our frames benefit from our Naked External Tubeset™, which eliminates the cosmetic carbon layer to shave precious grams. Both HMX and HMF fibers are used in our carbon frames ensuring the utmost durability, security, and longevity for the frame.
The Scott Spark 720 2016 Features are:
Frame: Spark Carbon / IMP technology / HMF /
BB92 / Alloy swingarm with 160PM
U-Mono Link / Tapered Headtube
IDS SL DM dropouts for 142 × 12mm
BB height adj. Front 120mm
Rear 120 - 85 - Lockout / Shock 190X50
Rear Shock: FOX Nude / SCOTT custom w. travel / geo adj
DPS 3 modes: Lockout - Traction Control -
Descend / reb. Adj.
Fork: FOX 32 Float Performance Air
15mm QR axle / tapered steerer
Lockout / reb. Adj. 120mm
Headset: Syncros Pro / Tapered 1.5" - 1 1/8" semi integ. OD 50/61mm / ID 44/55mm
Bars: Syncros FL1.5 T-Bar Alloy 7050 D.B. / T shape Flat / 9° / 720mm Syncros Pro lock-on grips
Stem: Syncros FL1.5 700 Series: +6° / 900 Series: -6° 7050 Alloy / 31.8mm / 1 1/8"
Rear Mech: SRAM GX1 11 Speed
Shifters SRAM GX1 Trigger right only
Chainset: SRAM Custom GX1 GXP PF 700 Series: 34T
Bottom Bracket: SRAM GXP PF integated / shell 41x89.5mm
Cassette: SRAM XG1150 10-42 T
Chain: KMC X11L
Front Brake: Shimano SLX M675 Disc 180mm SM-RT64 CL Rotor
Rear Brake: Shimano SLX M675 Disc 160mm SM-RT64 CL Rotor
Rims: Syncros XR2.5 28H / Tubeless ready
Front Hub: Syncros XR2.5 CL / 15mm made by DT Swiss
Rear Hub: Syncros XR2.5 CL / 12x142mm / RWS axle made by DT Swiss /XD
Tyres: Schwalbe Rocket Ron EVO / 2.25 27EPI Kevlar Bead Tubeless Easy / PaceStar compound Front,
Schwalbe Rocket Ron EVO / 2.25 27EPI Kevlar Bead Tubeless Easy / PaceStar compound Rear
Seatpost: Syncros FL1.5 / 31.6mm
Occasionally without notice, manufacturers sometimes change product specifications
