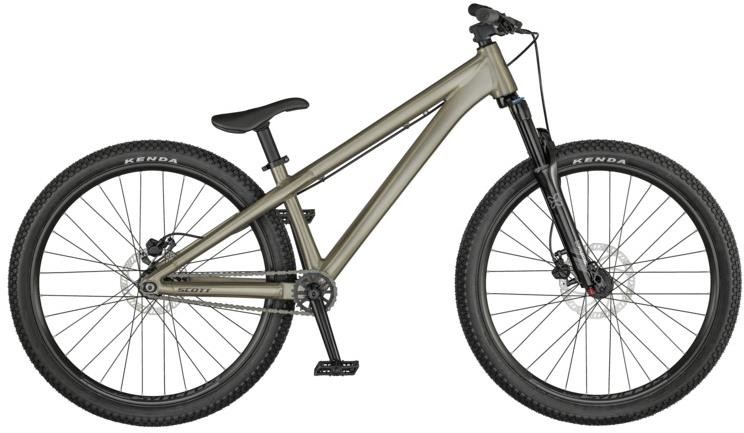

Scott Voltage YZ 0.1 2022 - Jump Bike
The SCOTT Voltage YZ 0.1 is our Pro riders replica bike built around a high-end Alloy dirtjump frame. Equipped with ultashort adjustable chain stays, a tapered headtube and high-end components, this bike is perfect for hitting the pumptrack, the dirtjumps, or jibbin' through the streets.
Key Features:
- Voltage Alloy Frame
- X-Fusion Slant DJ 100mm
- Singlespeed
- Tektro HDM275 Disc brakes
- Kenda K-RAD 26"x 2.3 Tires
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Voltage YZ DJ 6061 Alloy Hydroformed tubing Disc Dropout / horizontal for 135x10mm singleSpeed |
| Fork | X-Fusion Slant DJ 100mm travel / Air / Lo Comp / Rebound |
| Headset | Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm |
| Stem | Syncros XM1.5 31.8mm / 40mm / 0° |
| Bars | Syncros Hixon 2.0 Rise 31.8mm / 800mm / 20mm Rise Syncros Pro DH lock-on grips |
| Front Brake | Tektro HDM275 Hydr. Disc Tektro / 6 Bolt / 160mm |
| Rear Brake | Tektro HDM275 Hydr. Disc Tektro / 6 Bolt / 160mm |
| Speed | 1 |
| Rims | Syncros MD25 Disc / 32H |
| Front Hub | Formula DC-51 / 15x100mm / thru axle |
| Rear Hub | Formula DC42-N w/tracknut / single Speed |
| Spokes | Stainless 14G / black / 2.0mm |
| Front Tyre | Kenda K905 K-RAD 30TPI / wire / 26x2.3" |
| Rear Tyre | Kenda K905 K-RAD 30TPI / wire / 26x2.3" |
| Seat Post | Syncros DJ1.5 / Pivotal / 31.6mm |
| Saddle | Syncros DJ1.5 / Pivotal |
| Chainset | SCOTT Cr-Mo 3-piece cranks 170mm / 25T Alloy BMX sprocket |
| Bottom Bracket | Jien-Yuan BB92 / 19mm Axle |
| Chain | KMC Z510 |
| Cassette | Sprocket / 12 T |
| Pedals | Wellgo B107.N flat |
Scott Voltage YZ Geometry
| M | ||
| HEAD TUBE ANGLE | 68.5 ° | |
| HEAD TUBE LENGTH | 120.0 MM | 4.7 IN |
| TOP TUBE HORIZONTAL | 600.0 MM | 23.6 IN |
| STANDOVER HEIGHT | 702.0 MM | 27.6 IN |
| BB OFFSET | -15.0 MM | -0.6 IN |
| BB HEIGHT | 324.0 MM | 12.8 IN |
| WHEEL BASE | 1,047.0 MM | 41.2 IN |
| BB CENTER TO TOPTUBE CENTER | 261.1MM | 10.3 IN |
| BB CENTER TO TOP OF SEATTUBE | 315.0 MM | 12.4 IN |
| SEAT ANGLE | 71.0 ° | |
| CHAINSTAY | 380.0 MM | 15.0 IN |
| REACH | 403.4 MM | 15.9 IN |
| STACK | 507.9 MM | 22.5 IN |
| STEM LENGTH | 40.0 MM | 1.6 IN |
