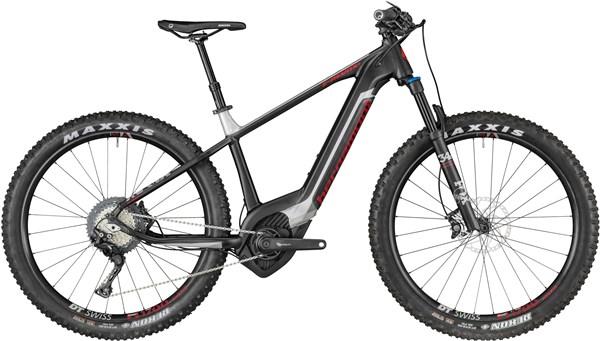

Bergamont E-Revox Elite Plus 27.5"+ 2018 - Electric Mountain Bike

Bergamont E-Revox Elite Plus 27.5"+ 2018 - Electric Mountain Bike

Out of Stock Sorry, you missed it. But you still have options...

Recommended alternatives We've found some items that may interest you...

Top Rated

Best Deals

New in Electric Mountain Bikes

Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

The new E-REVOX makes just as strong an impression with its looks as with its technology. The attractive E-MTB HARDTAIL is based on the UNIVERSAL CHASSIS CONCEPT, making it possible to select from the new, fully integrated Bosch PowerTube and the tried-and-tested PowerPack without making any compromises. The E-REVOX is in its element when ridden off-road. The sophisticated, field-tested geometry ensures the handling is spectacularly confident. The new Bosch eMTB mode offers top performance and control through intelligent power metering. The drive unit is perfectly protected when riding thanks to the engine cover we have developed in-house. To ensure you have even more in reserve on any type of subsurface, the Plus version completes the E-REVOX portfolio.

Universal Chassis Concept
We always made an extra effort when creating frame geometries and features to achieve superior riding capabilities. Using this knowledge we created a universal e-bike frame platform that perfectly integrates modern batteries and drive units.

Clever Enginge Cover
We always aim to make what is good even better. This led us to design our very own, unique motor housing and bash guard for our e-bikes.

Finite Element Method
To simulate and analyze individual frame components even before the first samples are fabricated, the Bergamont engineers use the latest FEM computer software

E.Drive System:
  • Motor: Bosch Drive Unit Performance Line CX, 250W, 36V, max. 25 km/h
  • Display: Bosch Purion
  • Battery: Bosch 36 V Li Ion, 500 Wh, frame-type
  • Range: 500Wh: 40-215km, depending on assistance mode and riding conditions
  • Assistance Modes: Eco (+50%), Tour (+120%), Sport (+210%), Turbo (+300%), Walk Assist (-5km/h)

Specification

Frame: 27.5" PLUS E-MTB, AL-6061 ultra lite butted tubing, T4/T6 heat treated, double butted, 3D-dropout, Through-Axle 12x142mm, tapered headtube, internal cable routing, Powertube Battery, E-bike-sport geometry
Fork: Fox 34 Float Performance, 27.5" Plus, tapered, 120mm, 3-position micro adjust, 15x110mm axle
Headset: BGM Pro, A-Headset, semi integrated, tapered
Stem: BGM Pro, 7°
Bars: BGM Pro, riser bar, backsweep: 9°, rise: 15 mm, width: 740 mm
Front Brake: Shimano Deore XT, BR-M8000, hydraulic disc brake, SM-RT66 rotor: 180mm
Rear Brake: Shimano Deore XT, BR-M8000, hydraulic disc brake, SM-RT66 rotor: 160mm
Brake Lever: Shimano Deore XT, BL-T8000, hydraulic disc brake
Rear Mech: Shimano Deore XT, RD-M8000, Shadow Plus
Shifters: Shimano SLX, SL-M7000, rapidfire plus
Speed: 11
Rims: DT Swiss H 1700 Spline, disc, eyelets, width: 30mm
Front Hub: DT Swiss H 1700 Spline, 6-bolt, disc, 15x110mm axle
Rear Hub: DT Swiss H 1700 Spline, 6-bolt, disc, 12x148mm axle
Spokes: DT Swiss
Front Tyre: Maxxis Rekon Plus, folding, 120 TPI, 27,5x2,8"
Rear Tyre: Maxxis Rekon Plus, folding, 120 TPI, 27,5x2,8"
Seat Post: BGM dropper post, 125mm travel, remote
Chainset: BGM Delta Pro, with alloy cover, 15t
Bottom Bracket: Bosch, Isis
Chain: KMC X11E
Cassette: Shimano SLX, CS-M7000, 11-46t
Pedals: Wellgo C128
Weight: 21.50kg

Occasionally without notice, manufacturers sometimes change product specifications.
