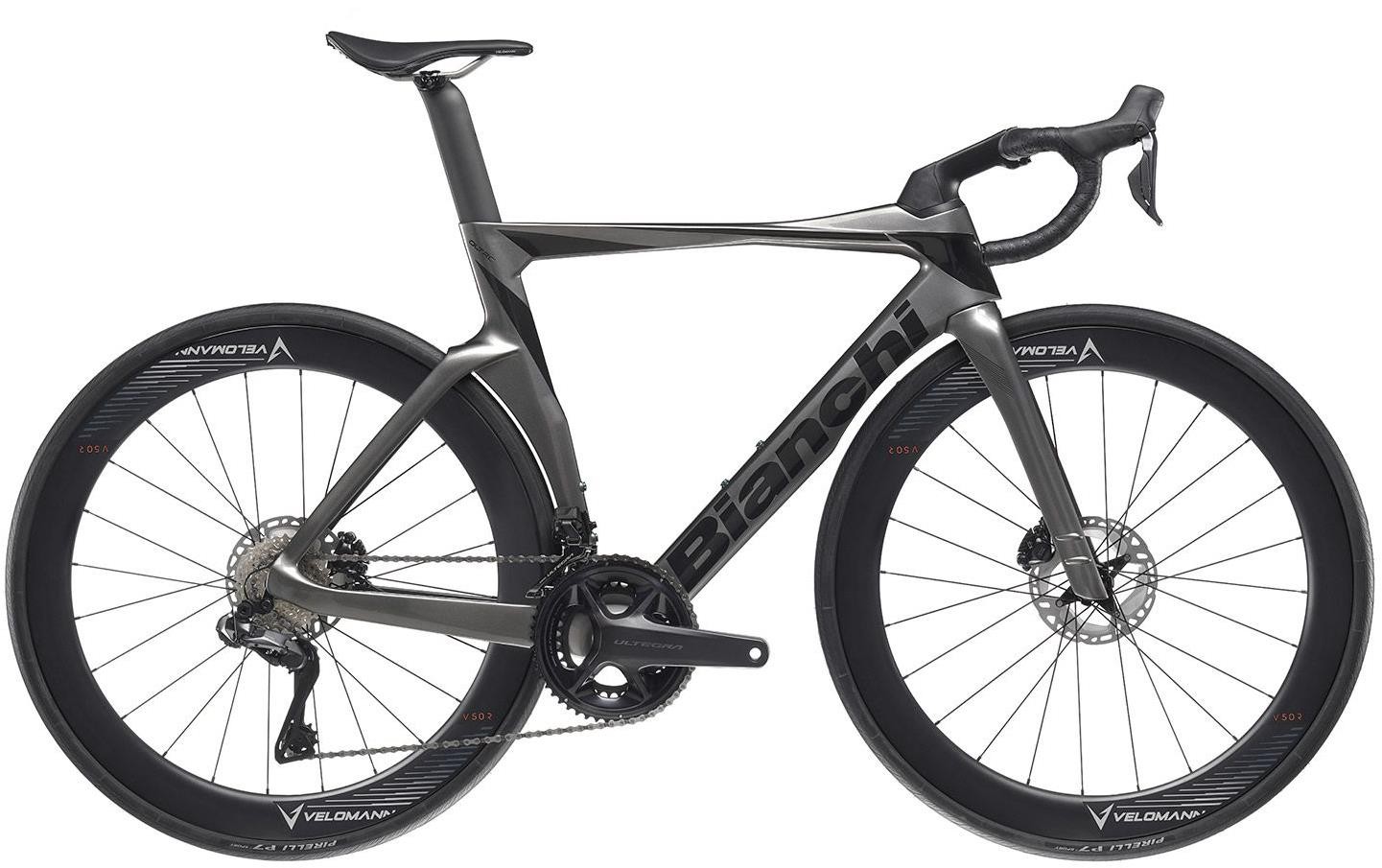

Bianchi Oltre Comp Ultegra Di2 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Oltre Comp, carbon, disc brakes, electronic and mechanical shifting compatible, internal cable routing 1.5-1.5 headset, BB-PressFit 86,5x41, flat mount brakes, thru axle 12x142mm sizes 47-50-53-55-57-59cm |
Fork | Full Carbon aero, disc brakes integrated head |
Headset | Fsa ACB 1.5" 51.8x40x8 |
Stem | Velomann Aero stem, material alloy, Oversize, 1.1/8", size: 90-47/50cm, 100-53cm, 110-55/57cm, 120mm-59cm, w/Oltre custom top cap stem cover w/magnet |
Bars | Velomann Aero Compact handlebar, alloy diam. 31,8mm, reach 70mm, drop 120mm, Size: 400mm-47/53cm, 420mm-55/59cm |
Front Brake | Shimano BR-R8170 Hydraulic disc brake included in the shifter, 160mm |
Rear Brake | Shimano BR-R8170 Hydraulic disc brake included in the shifter, 160mm |
Brake Lever | Shimano Ultegra Di2 hydraulic disc brake for road |
Front Mech | Shimano Ultegra Di2 12sp, FD-R8150, brazed-on type, down swing, top gear 50-54T |
Rear Mech | Shimano Ultegra Di2 12sp, RD-R8150, top normal shadow design, direct attachment, W/TL-EW300, 34T Max Low Sprocket |
Shifters | Shimano Ultegra Di2 hydraulic disc brake for road |
Speed | 24 |
Rims | Velomann V50R, 50mm profile front and rear, weight per set 1630g, ASTM 2, UD carbon fiber |
Front Hub | Aluminium alloy 6061, width: 100-142 mm, sealed cartridge bearings, Brake interface: Center Lock |
Rear Hub | Aluminium alloy 6061, width: 100-142 mm, sealed cartridge bearings, Brake interface: Center Lock |
Front Tyre | Pirelli P7, 700 x 28c, 60TPI, Nylon breaker, Folding |
Rear Tyre | Pirelli P7, 700 x 28c, 60TPI, Nylon breaker, Folding |
Seat Post | Velomann Oltre Full Carbon Aero special dimension, 20mm offset, length: 280mm-47cm, 300mm-50/53cm, 350mm-55/59cm |
Saddle | Velomann Mitora, weight 215g, Lenght: 250mm, Wide: 139mm |
Chainset | Shimano Ultegra 12sp, FC-R8100, Ultegra hollowtech 2, for rear 12- speed, 170-172mm, 50x34T w/o BB parts, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm |
Bottom Bracket | Shimano, press fit for road, right & left adapter, bearing, inner cover |
Chain | Shimano Ultegra 12sp |
Pedals | Resin Platform |
Bianchi Road Bike 2023 Size Chart
Size |
Height (cm) |
Height (inches) |
44cm |
156-158 |
5’1”-5’2” |
46cm |
158-160 |
5’2”-5’3” |
49cm |
160-162 |
5’3”-5’3.8” |
50cm |
162-164 |
5’3.8”-5’4.6” |
51cm |
164-166 |
5’4.6”-5’5.4” |
52cm |
167-169 |
5’5.7”-5’6.5” |
53cm |
169-171 |
5’6.5”-5’7.3” |
54cm |
171-173 |
5’7.3”-5’8.1” |
55cm |
172-175 |
5’7.7”-5’8.9” |
56cm |
175-177 |
5’8.9”-5’9.7” |
57cm |
177-179 |
5’9.7”-5’10.5” |
58cm |
179-183 |
5’10.5”-6’ |
59cm |
184-186 |
6’0.4”-6’1.2” |
60cm |
185-187 |
6’0.8”-6’1.6” |
61cm |
186-190 |
6’1.2”-6’2.8” |
62cm |
190-194 |
6’2.8”-6’4.4” |
63cm |
194-200 |
6’4.4”-6’6.7” |
What size frame do I need if I am between sizes? - read here
