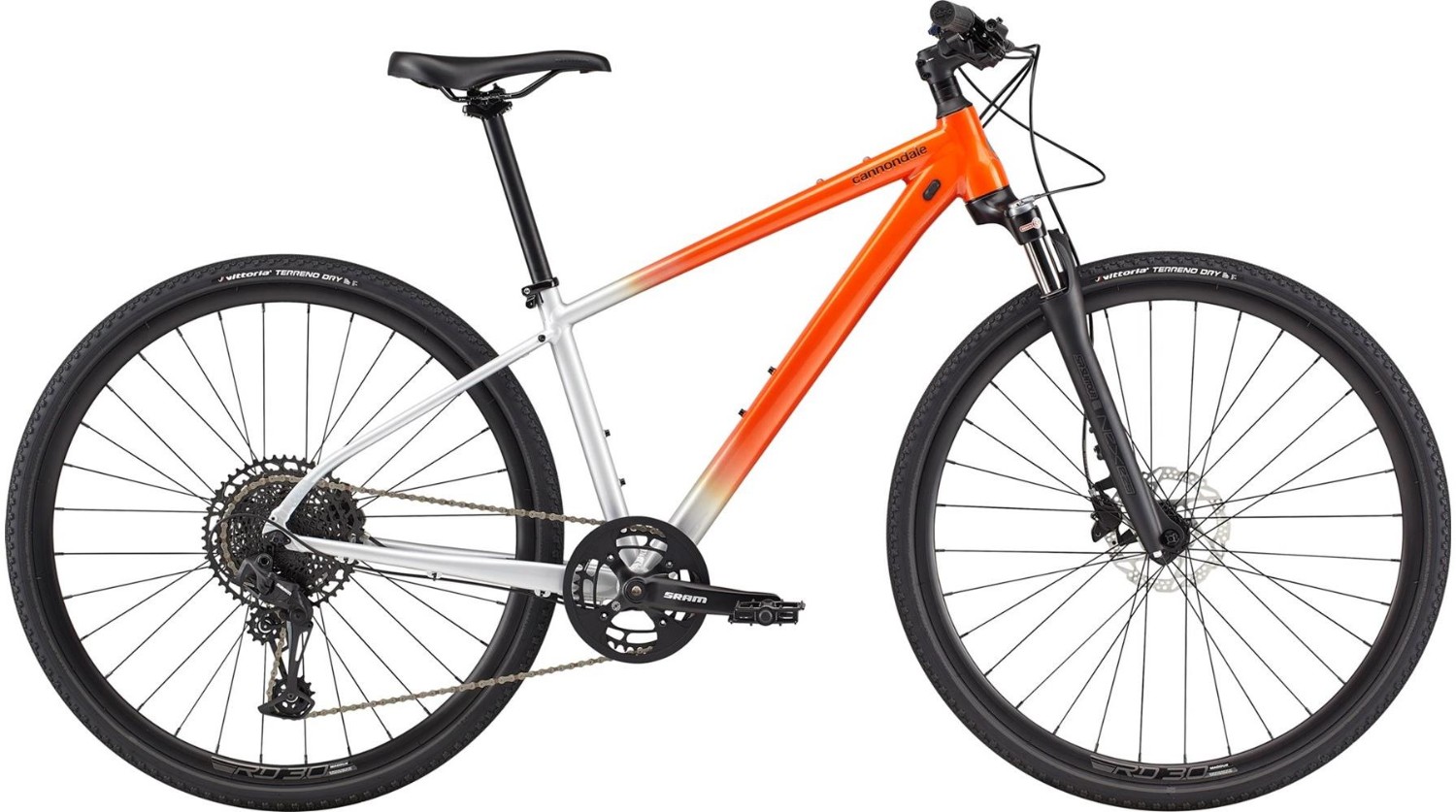

Cannondale Quick CX 1 Womens 2023 - Hybrid Sports Bike
All Ways, All Days.
An urban-adventure bike for cities and town pathways, open countryside and everything else. Expand your horizons on one bike to do it all.
Key Features:
- Smooth Lines
Quick CX has been redesigned with a custom fork crown that seamlessly flows into the headtube for a refined and classy look.
- Connect
An integrated wheel sensor helps track your activity (like speed, distance and calories burned), registers your bike, reminds you of needed service and more, all through the free Cannondale app.
- Intellimount Stem
A convenient mount on the stem will securely hold any SP-Connect compatible smartphone case, creating a dashboard display for speed, mileage and more with the Cannondale App.
- Versatility Comes Standard
Wanna get serious? The Quick CX comes with fender brackets for foul weather and universal, easy-to-use rack mounts for grabbing groceries and life on the go.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All-New, SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Suntour NEX-E25, 63mm, tapered alloy steerer, coil, remote lockout, custom crown |
| Headset | Semi Integrated, Tapered |
| Stem | Cannondale 3 with Intellimount, alloy, 31.8mm clamp |
| Bars | Cannondale 3, 6061 double-butted, 20mm rise, 9° back, 660mm |
| Front Brake | Shimano MT210-UR300 hydro disc, 160mm RT56 rotors |
| Rear Brake | Shimano MT210-UR300 hydro disc, 160mm RT56 rotors |
| Brake Lever | Shimano MT210 |
| Rear Mech | SX Eagle |
| Shifters | SRAM SX Eagle, 12-speed |
| Speed | 12 |
| Rims | RD 3.0, double wall w/eyelet, 32h |
| Front Hub | Shimano HB-M4050 |
| Rear Hub | Shimano FH-M4050 |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Vittoria Terreno Dry, 700 x 40, reflective strip |
| Rear Tyre | Vittoria Terreno Dry, 700 x 40, reflective strip |
| Seat Post | Cannondale 3 6061 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Chainset | SRAM SX Eagle Power Spline, 38T |
| Bottom Bracket | Truvativ Power Spline |
| Chain | SRAM SX Eagle, 12-speed |
| Cassette | SRAM SX Eagle, 11-50, 12-speed |
| Pedals | Cannondale Platform |
Cannondale Quick CX Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick CX Geometry Chart
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack | 573 | 590 | 607 | 623 | 640 |
| Reach | 391 | 402 | 412 | 422 | 432 |
| Head Tube Length | 90 | 108 | 126 | 143 | 162 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Bottom Bracket Height | 293 | 293 | 293 | 293 | 293 |
| Bottom Bracket Drop | 64 | 64 | 64 | 64 | 64 |
| Trail | 78 | 78 | 78 | 78 | 78 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 648 | 666 | 682 | 698 | 715 |
| Chainstay Length | 450 | 450 | 450 | 450 | 450 |
| Wheelbase | 1091 | 1108 | 1124 | 1141 | 1158 |
| Top Tube Length (horizontal) | 566 | 582 | 597 | 612 | 628 |
| Standover Height | 677 | 725 | 764 | 802 | 840 |
| Seat Tube Length | 350 | 400 | 450 | 500 | 550 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
