(no reviews)Product ID: 264284

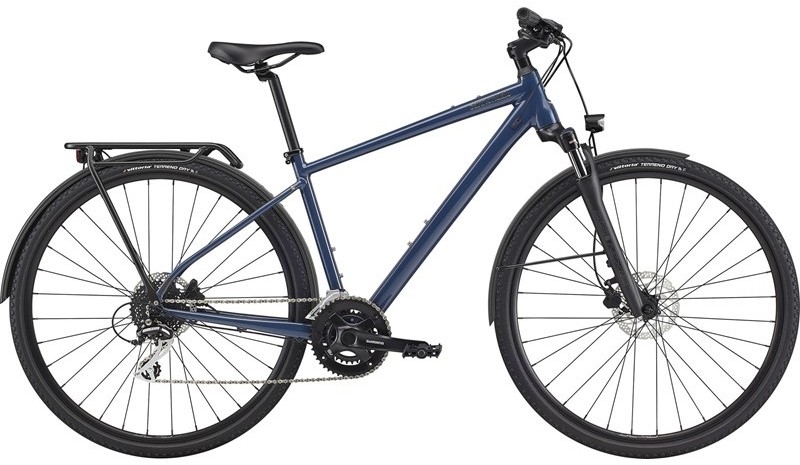

Cannondale Quick CX EQ 2023 - Hybrid Sports Bike
All Ways, All Days.
An urban-adventure bike for cities and town pathways, open countryside and everything else. Expand your horizons on one bike to do it all.
Where it thrives
In town, Leisurely rides, On crowded streets
What it's built for
Visibility, Handling, Agility, Comfort and ease
Key Features:
All-New light and durable SmartForm C3 Alloy frame w/ 63 mm travel fork
Rack / Fenders / Folding pedals and Stem / Dynamo Lights / Kickstand
Shimano Acera, 8-Speed with hydraulic disc brakes
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
| Fork | Suntour NEX-E25, 63mm travel, coil, lockout, custom crown |
| Headset | Semi-Integrated, Tapered, 1-1/2"-1-1/8" |
| Stem | 90 degree rotatable, 31.8, 7° |
| Bars | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm |
| Front Brake | Tektro HD-T275 hydraulic disc, 160mm rotor |
| Rear Brake | Tektro HD-R280 hydraulic disc, 160mm rotor |
| Brake Lever | Tektro hydraulic disc |
| Front Mech | Shimano Tourney, 31.8 Clamp |
| Rear Mech | Shimano Acera |
| Shifters | Shimano ST-EF505, 8-speed |
| Speed | 16 |
| Rims | Cannondale Disc, double wall w/eyelet, 32h |
| Front Hub | Shimano Dynamo DH-3D37 |
| Rear Hub | Shimano FH-TX505 |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Schwalbe Road Crusier, 700 x 32c, reflective strip |
| Rear Tyre | Schwalbe Road Crusier, 700 x 32c, reflective strip |
| Seat Post | 6061 Alloy, 27.2 x 350mm |
| Saddle | Cannondale Fitness Ergo Double Density |
| Chainset | Shimano Tourney, 46/30 |
| Bottom Bracket | Cartridge, square taper |
| Chain | KMC X8, 8-speed |
| Cassette | Sunrace, 11-34, 8-speed |
| Pedals | Reinforced folding nylon pedals |
Cannondale Quick CX Size Chart
|
SIZE |
HEIGHT (cm) |
HEIGHT (ft) |
|
S |
157 – 170 |
5’2” – 5’7” |
|
M |
165 – 177 |
5’5” – 5’10” |
|
L |
175 – 187 |
5’9” – 6’2” |
|
XL |
182 – 195 |
6’0” – 6’5” |
Cannondale Quick CX Geometry Chart
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack | 573 | 590 | 607 | 623 | 640 |
| Reach | 391 | 402 | 412 | 422 | 432 |
| Head Tube Length | 90 | 108 | 126 | 143 | 162 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Bottom Bracket Height | 293 | 293 | 293 | 293 | 293 |
| Bottom Bracket Drop | 64 | 64 | 64 | 64 | 64 |
| Trail | 78 | 78 | 78 | 78 | 78 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 |
| Front Centre | 648 | 666 | 682 | 698 | 715 |
| Chainstay Length | 450 | 450 | 450 | 450 | 450 |
| Wheelbase | 1091 | 1108 | 1124 | 1141 | 1158 |
| Top Tube Length (horizontal) | 566 | 582 | 597 | 612 | 628 |
| Standover Height | 677 | 725 | 764 | 802 | 840 |
| Seat Tube Length | 350 | 400 | 450 | 500 | 550 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
