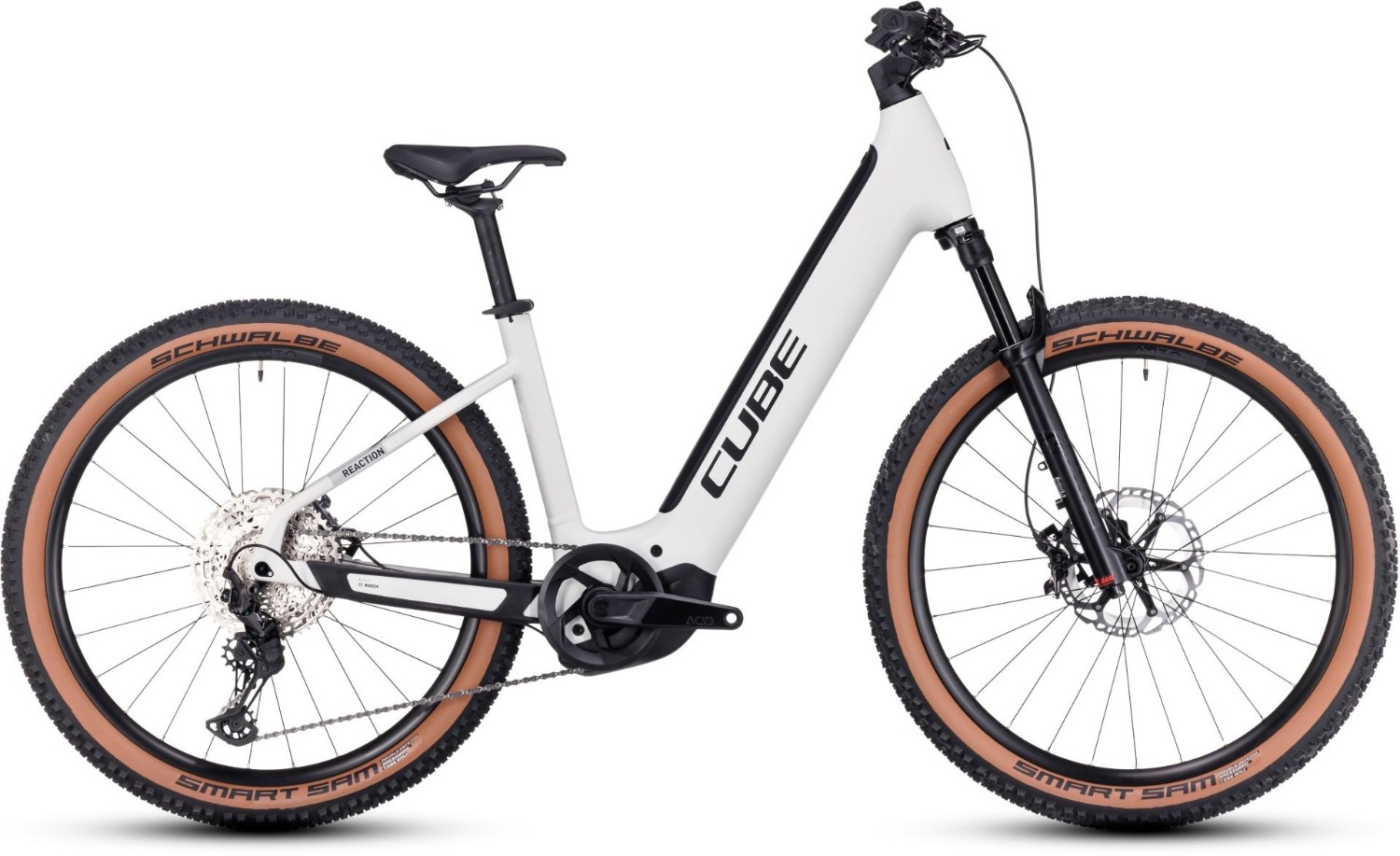

Cube Reaction Hybrid SLT 750 Easy Entry 2023 - Electric Mountain Bike
It's all in the detail. So neat is the Reaction Hybrid's frame design, you'll barely notice the high-capacity Bosch battery – now up to 750Wh, even for smaller frame sizes – and powerful fourth-generation, Smart System-equipped Bosch CX motor. But you'll definitely notice the power. Agile Ride Geometry delivers confidence-inspiring handling, as you'd expect. There's an Easy Entry frame option, and a new S frame with 27.5in wheels, so everyone can find their ideal Reaction Hybrid. And, with internally routed cables including a stealth dropper post upgrade option, we've reduced the need for maintenance so that you can just enjoy the ride
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
| Fork | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Bars | CUBE Rise Trail Bar Pro, 740mm |
| Front Brake | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
| Rear Brake | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
| Rear Mech | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano XT SL-M8100-IR, Direct Attach |
| Speed | 12 |
| Rims | Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Hub | 15x110mm |
| Rear Hub | 12x148mm |
| Front Tyre | Schwalbe Smart Sam, Performance, Double Defense, 2.6, Next Gen |
| Rear Tyre | Schwalbe Smart Sam, Performance, Double Defense, 2.6, Next Gen |
| Seat Post | CUBE Performance Post, 30.9mm |
| Saddle | Natural Fit Sequence |
| Chainset | ACID MTB Hybrid Pro Crank, 38T, 175mm |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Pedals | ACID PP MTB |
| Battery Size (WH) | Bosch PowerTube 750 |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| User Interface | Bosch Kiox 300 |
Cube Reaction Hybrid Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S - 15" |
160 - 170 |
5'5" - 5'7" |
|
M - 17" |
168 - 175 |
5'6" - 5'9" |
|
L - 19" |
175 - 185 |
5'9" - 6'1" |
|
XL - 21" |
185 - 190 |
6'1" - 6'3" |
|
XXL - 23" |
190 - 196 |
6'3" - 6'5' |
What size frame do I need if I am between sizes? - read here
Cube Reaction Hybrid Geometry Chart
|
|
S - 15" |
M- 17" |
L-19" |
XL-21" |
XXL-23" |
|
SEAT TUBE |
375 |
405 |
450 |
495 |
545 |
|
SEAT TUBE CENTER-CENTER |
316 |
347 |
393 |
439 |
490 |
|
TOP TUBE HORIZONTAL |
580 |
580 |
600 |
620 |
640 |
|
SEAT TUBE ANGLE |
74 |
74 |
74 |
74 |
74 |
|
HEAD TUBE ANGLE |
67 |
68 |
69 |
69 |
69 |
|
CHAIN STAYS |
460 |
460 |
460 |
460 |
460 |
|
HEAD TUBE |
110 |
115 |
120 |
131 |
146 |
|
WHEELBASE |
1097 |
1141 |
1150 |
1170 |
1191 |
|
STANDOVER HEIGHT |
743 |
765 |
799 |
832 |
870 |
|
REACH |
406 |
403 |
420 |
437 |
452 |
|
STACK |
618 |
628 |
638 |
648 |
662 |
|
WHEELSIZE |
29 |
29 |
29 |
29 |
29 |
|
BB-HEIGHT TO HUB |
-65 |
-65 |
-65 |
-65 |
-65 |
