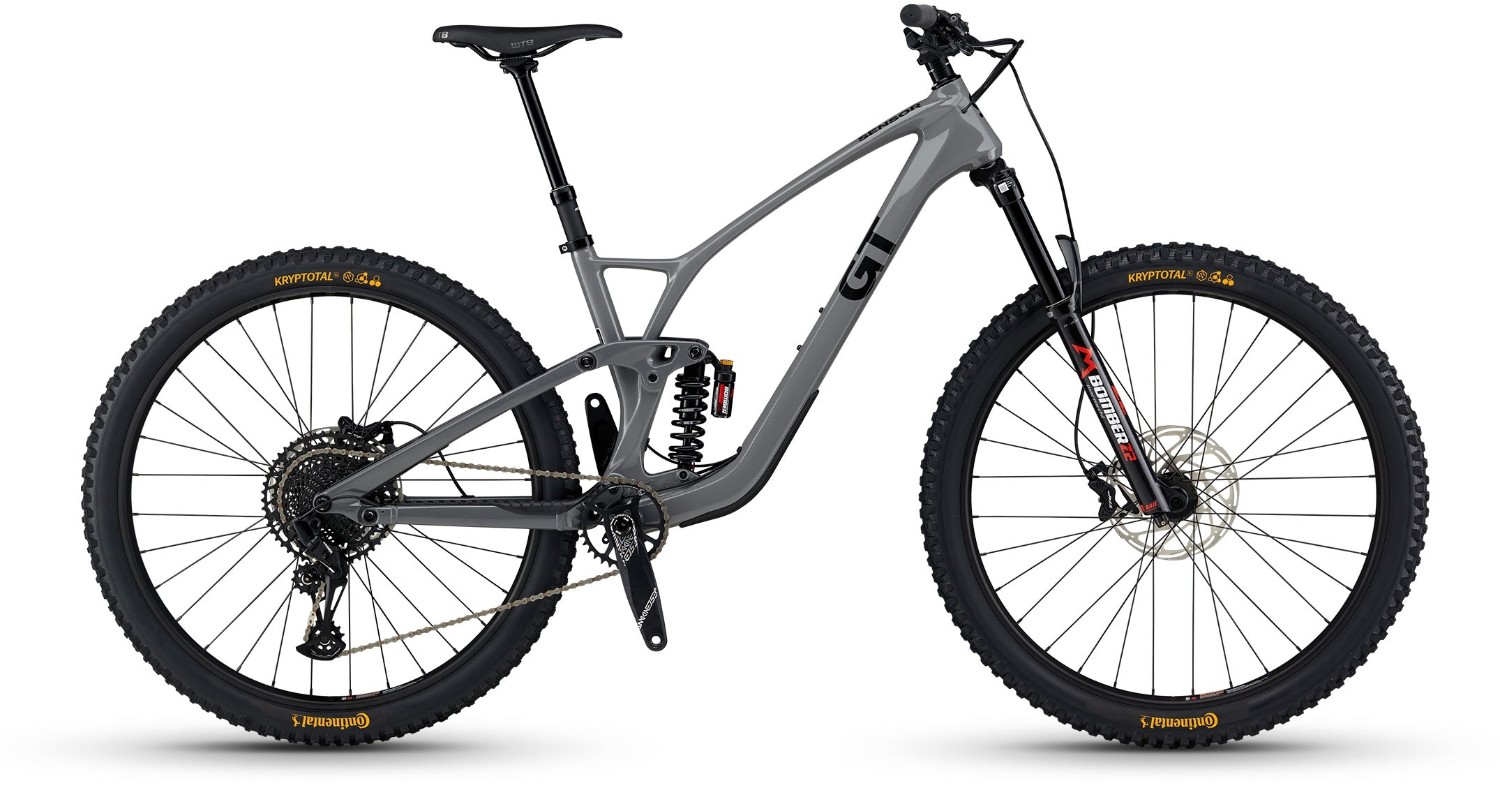

GT Sensor Carbon Elite Mountain Bike 2024 - Enduro Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Sensor Carbon 29” Frame, 140mm Travel, 12x148mm Thru-Axle, UDH |
Fork | Marzocchi Bomber Z2, 150mm, 15x110 Boost, 44mm Offset |
Rear Shock | Marzocchi Bomber CR Coil, 185x55mm |
Headset | FSA No.42 |
Stem | GT Alloy, 31.8mm Clamp, 35mm Length |
Bars | GT Alloy Riser Bar, 30mm Rise, 780mm Wide, 5° Rise, 8° Back |
Front Brake | TRP Slate T4 Hydro Disc, 203/180mm Rotors |
Rear Brake | TRP Slate T4 Hydro Disc, 203/180mm Rotors |
Brake Lever | Null |
Front Mech | Null |
Rear Mech | SRAM SX Eagle |
Shifters | SRAM SX Eagle, 12-speed |
Speed | 12 |
Rims | WTB ST i30 TCS 2.0, 32h, Tubeless Ready |
Front Hub | Formula, 15x110mm |
Rear Hub | Formula 12x148mm, HG Freehub Body |
Spokes | Null |
Front Tyre | Maxxis Assegai, 29 x 2.5", EXO |
Rear Tyre | Maxxis Dissector, 29 x 2.4", EXO |
Seat Post | GT DropKick, 31.6mm, (S - 125mm, M - 150mm, L/XL - 170mm) |
Saddle | WTB Silverado |
Chainset | Truvativ Descendent 6K, Dub, 32t |
Bottom Bracket | SRAM DUB BSA |
Chain | SRAM SX Eagle, 12-speed |
Cassette | SRAM PG-1210, 11-50T |
Pedals | Not Included |
Sensor Carbon Sizing
See the table below to find the right size GT Sensor Carbon Mountain Bike.
Frame Size |
Recommended Height |
|
Size |
Feet and Inches |
Centimetres |
Small |
5’ 2 - 5’ 6” |
158 – 168cm |
Medium |
5’ 6 - 5’ 10” |
168 – 178cm |
Large |
5’ 10” - 6’ 2” |
178 – 188cm |
X Large |
6’ 2” - 6’ 5” |
188 – 196cm |
Read our bike size guide for more information on sizing.
Sensor Carbon Geometry
Size |
XS (Low) |
XS (High) |
S (Low) |
S (High) |
M (Low) |
M (High) |
L (Low) |
L (High) |
XL (Low) |
XL (High) |
Seat Tube Length |
392 |
392 |
400 |
400 |
430 |
430 |
480 |
480 |
520 |
520 |
Horizontal Top Tube Length |
542 |
540 |
567 |
565 |
593 |
592 |
620 |
619 |
647 |
647 |
Stand over height |
742.5 |
743 |
750 |
750 |
760 |
760 |
770 |
770 |
805 |
805 |
Head Angle |
65.5 |
65.99 |
65.5 |
65.98 |
65.5 |
65.97 |
65.5 |
65.96 |
65.5 |
65.95 |
Seat Angle |
76 |
76.46 |
76 |
76.48 |
76 |
76.47 |
76 |
76.46. |
76 |
76.45 |
Chain Stay Length |
435 |
433.62 |
435 |
433.62 |
435 |
433.62 |
435 |
433.62 |
435 |
433.62 |
Head Tube Length |
102 |
102 |
102 |
102 |
110 |
110 |
118 |
118 |
126 |
126 |
Bottom Bracket Height |
349 |
356.56 |
349 |
356.56 |
349 |
356.72 |
349 |
356.8 |
349 |
356.9 |
Fork Offset (Rake) |
51 |
51 |
51 |
51 |
51 |
51 |
51 |
51 |
51 |
51 |
Wheel Base |
1141 |
1139.76 |
1166 |
1164.76 |
1194 |
1193.07 |
1222 |
1121.39 |
1251 |
1249.71 |
BB Drop |
27 |
20.94 |
27 |
20.86 |
27 |
20.78 |
27 |
20.7 |
27 |
20.62 |
FC |
707 |
706.95 |
732 |
731.94 |
760 |
760.24 |
789 |
788.54 |
817 |
816.84 |
Stack to HT |
587 |
584 |
587 |
583,86 |
595 |
591.97 |
602 |
598.54 |
609 |
605.36 |
Reach to HT |
395 |
400.02 |
420 |
424.91 |
445 |
449.86 |
470 |
478.8 |
495 |
499.75 |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
