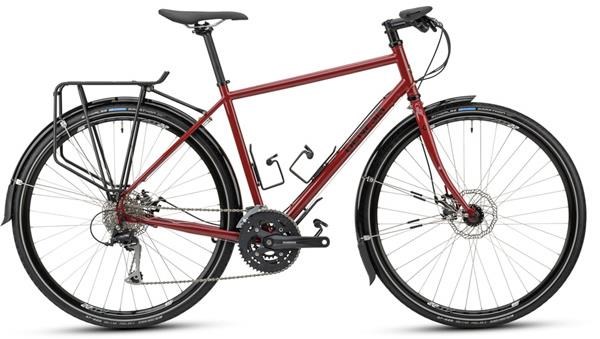

Genesis Tour De Fer 10 FB 2022 - Touring Bike
The Tour de Fer 10 represents our vision of affordable escapism; a bike designed for the sole purpose of carrying rider and luggage long distances efficiently and in comfort, without leaving a sizable dent in your pocket.
Our flat-bar variant takes every element of our country-crossing legend and matches it with a more upright position, perfect for those needing the ultimate comfort.
As our entry-level model, affordability is at the forefront of our considerations, without cutting corners that would've been detrimental to the ride or long-term ownership. This meant choosing rugged, reliable kit that will last the high mileage for which we intend the bike to be used.
Most of what makes it so good for touring is also 100% applicable to commuting. Everyday practicalities like large volume, puncture resistant Schwalbe Marathon tyres, tough 36H wheelset, powerful, controlled disc brakes, Tubus Cargo rear rack and custom length and extra-long Chromoplastic mudguards.
Tour de Fer 10 is just as suited as a daily commuter as it is a cross-continent tourer. Where will you take yours?
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Genesis Mjolnir seamless double-butted chromoly |
Fork | Genesis full Chromoly |
Headset | PT-1606 EC34 Upper / EC34 Lower |
Stem | Genesis Alloy, 31.8mm, -6 deg, 100mm |
Bars | Genesis Alloy 18mm rise, 8deg backsweep, XS = 580MM, S/M = 600MM, L/XL = 620MM |
Front Brake | PROMAX DSK-717RS |
Rear Brake | PROMAX DSK-717RS |
Brake Lever | Shimano BL-T4010 |
Front Mech | Shimano Alivio FD-T4000 |
Rear Mech | Shimano Alivio RD-T4000-SGS 9spd |
Shifters | Shimano Alivio SL-M4000 3X9spd |
Speed | 27 |
Rims | Jalco XCD22 |
Front Hub | KT-K08 |
Rear Hub | KT-K08 |
Spokes | Steel 14g |
Front Tyre | Schwalbe Marathon |
Rear Tyre | Schwalbe Marathon |
Seat Post | Genesis Alloy 27.2mm XS/S/M = 350mm, L/XL = 400mm |
Saddle | Genesis |
Chainset | Shimano FC-T4010 48/36/26T, XS/S/M = 170mm, L/XL = 175mm |
Bottom Bracket | Shimano BB-ES300 |
Chain | KMC X9 |
Cassette | Shimano CS-HG400-9 11-32T |
Pedals | NW-99K with cage |
Genesis Tour De Fer 2021 Size Chart
Size | Height (cm) | Height (Inches) |
XS | 150 - 160 | 4'11 - 5'3 |
S | 158 - 168 | 5'2 - 5'6 |
M | 166 - 176 | 5'5 - 5'9 |
L | 174 - 185 | 5'8 - 6'1 |
XL | 184 - 194 | 6'1 - 6'4 |
Genesis Tour De Fer 2021 Geometry
XS | S | M | L | XL | |
FRAME SEAT TUBE | 450 | 480 | 510 | 530 | 570 |
FRAME TOP TUBE | 533 | 547 | 578 | 604 | 636 |
FRAME REACH | 365 | 375 | 395 | 415 | 435 |
FRAME STACK | 566 | 580 | 599 | 618 | 637 |
FRAME HEAD TUBE | 125 | 140 | 160 | 180 | 200 |
FRAME HEAD ANGLE | 71 | 71 | 71 | 71 | 71 |
FRAME SEAT ANGLE | 73.5 | 73.5 | 73 | 73 | 72.5 |
FRAME BB DROP | 75 | 75 | 75 | 75 | 75 |
FRAME WHEEL BASE | 1041 | 1056 | 1083 | 1109 | 1136 |
FORK OFFSET | 55 | 55 | 55 | 55 | 55 |
STANDOVER | 758 | 778 | 799 | 807 | 843 |
What size frame do I need if I am between sizes? - read here
