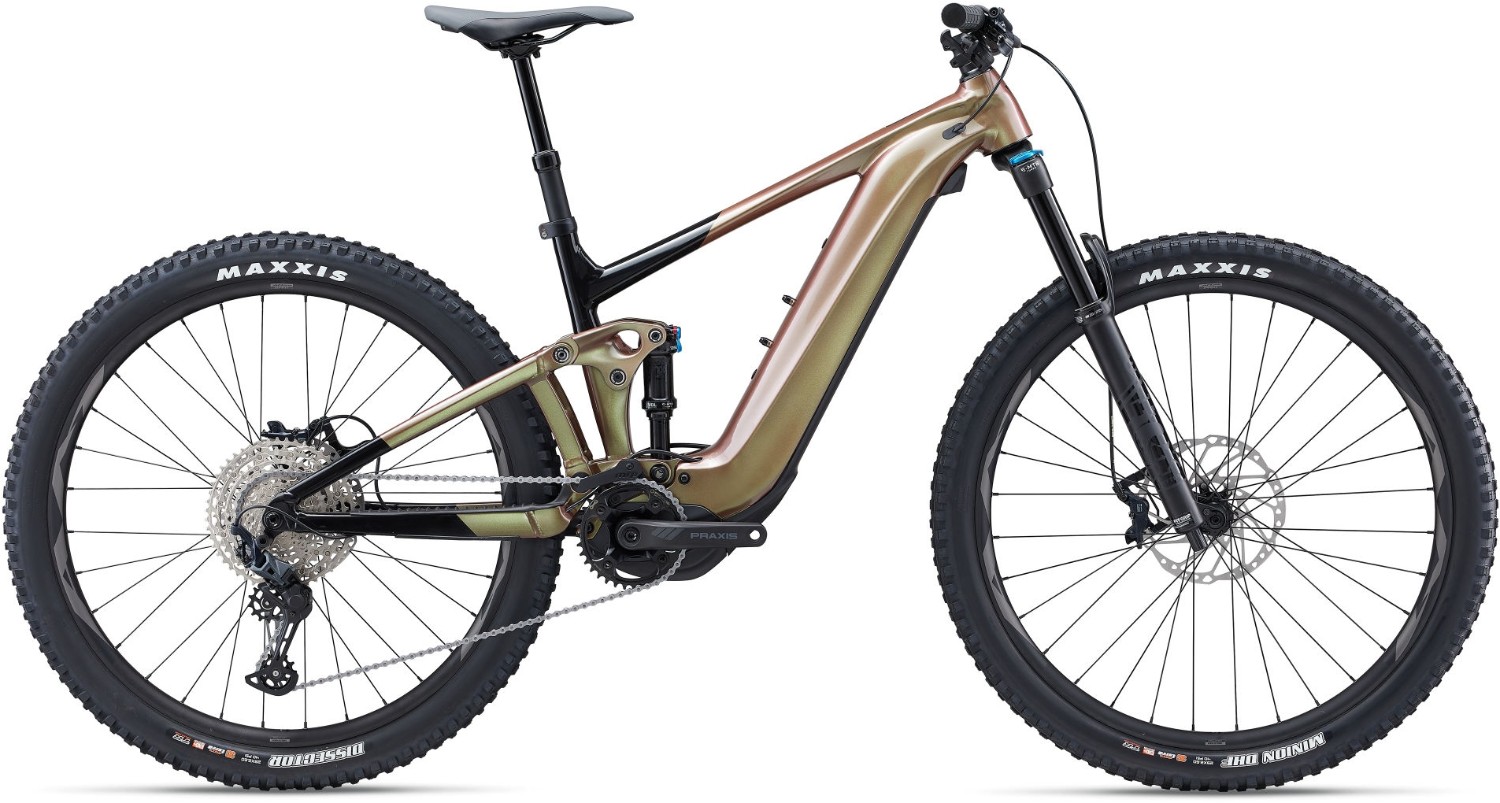

Giant Trance X E+ 2 2024 - Electric Mountain Bike
KEY PERFORMANCE FACTORS
Smooth, powerful support
SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
Trail-riding control
Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adaptable to the terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | ALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible |
Fork | Fox 36 Float Rhythm E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Sweep adjust, Boost 110x15QR |
Rear Shock | Fox Float Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
Stem | Giant Contact SL 35 |
Bars | Giant Contact 35 Trail, 35x780mm |
Front Brake | Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm |
Rear Brake | Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm |
Brake Lever | Shimano Deore |
Front Mech | MRP HD2 co-moulded chain guide |
Rear Mech | Shimano SLX, 12-speed, Shadow+ |
Shifters | SHIMANO SLX 1x12 |
Speed | 12 |
Rims | Giant AM 29", Tubeless ready, 30mm inner width |
Front Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
Rear Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
Spokes | Sapim E-Lite [r] Race [f], e-bike optimised |
Front Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
Rear Tyre | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
Seat Post | Giant Contact Switch, dropper, 30,9mm (S:125mm, M:150mm, L/XL:170mm) |
Saddle | Giant Romero |
Chainset | Praxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T |
Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
Pedals | Resin Platform |
Battery Size (WH) | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible |
Motor | Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology |
User Interface | Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display |
Giant Trance E Sizing & Geometry
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Trance E Geometry
S | M | L | XL | |
---|---|---|---|---|
SEAT TUBE LENGTH (mm) | 406 | 445 | 482 | 507 |
SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° |
TOP TUBE LENGTH (mm) | 585 | 610 | 630 | 655 |
HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 130 |
HEAD TUBE ANGLE | 66.5° | 66.5° | 66.5° | 66.5° |
FORK RAKE (mm) | 46 | 46 | 46 | 46 |
TRAIL (mm) | 109 | 109 | 109 | 109 |
WHEELBASE (mm) | 1184 | 1210 | 1231 | 1259 |
CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
BOTTOM BRACKET DROP (mm) | 15 | 15 | 15 | 15 |
STACK (mm) | 579 | 584 | 593 | 611 |
REACH (mm) | 418 | 442 | 460 | 479 |
STAND OVER HEIGHT (mm) | 739 | 740 | 772 | 792 |
HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
STEM LENGTH (mm) | 40 | 50 | 50 | 60 |
CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
