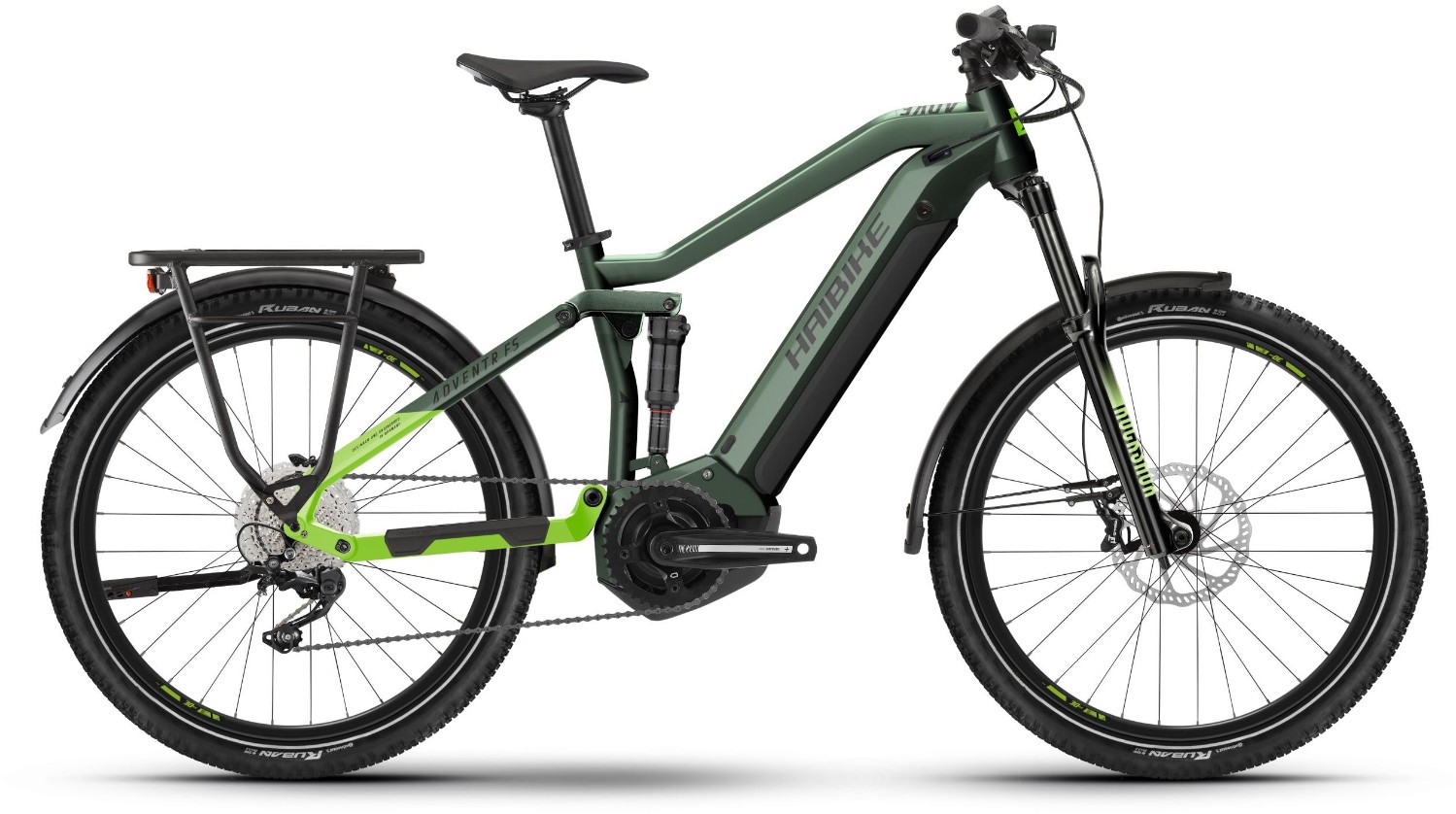

Haibike Adventr FS 8 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 140mm |
| Fork | RockShox 35 Silver, steel spring, Travel: 140mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | RockShox Deluxe Select Plus, air |
| Headset | A-Head Tapered |
| Stem | Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 7˚ |
| Bars | Haibike Components TheBar ++ 780mm |
| Front Brake | Tektro Orion M745, 203mm / Tektro Orion M745, 180mm |
| Rear Brake | Tektro Orion M745, 203mm / Tektro Orion M745, 180mm |
| Brake Lever | Tektro Orion M745, aluminium |
| Rear Mech | Shimano Deore M5100, 11-speed |
| Shifters | Shimano Deore M5100, trigger switch |
| Speed | 11 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
| Front Hub | Haibike Components TheHub ++ |
| Rear Hub | Haibike Components TheHub ++ Steckachse 12x148 |
| Spokes | Sapim Leader, black |
| Front Tyre | Continental Ruban, 65-584, reflex |
| Rear Tyre | Continental Ruban, 65-584, reflex |
| Seat Post | Haibike Components TheSeatpost ++, 31.6mm, aluminium |
| Saddle | Selle Bassano Reko R2 E-Sport |
| Chainset | Haibike Components, The Crank +, Aluminium, Samox, 38 teeth |
| Bottom Bracket | Integrated |
| Chain | KMC X11e |
| Cassette | Shimano M5100, 11-51 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | InTube 630Wh |
| Motor | Yamaha PW-ST System, 250W, 70Nm, 25km/h |
| User Interface | Yamaha Side Switch |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
