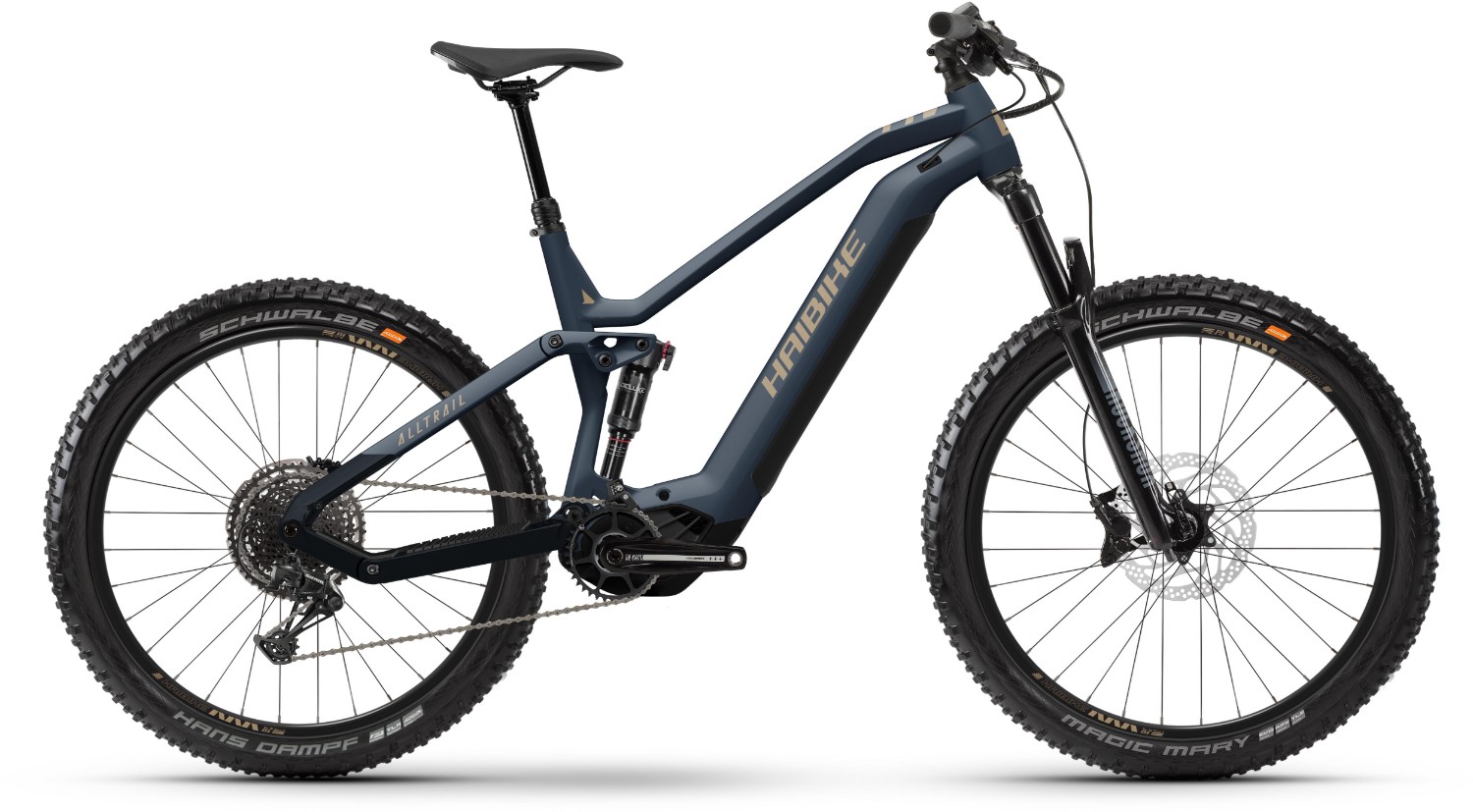

Haibike AllTrail 6 27.5 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 140mm |
Fork | RockShox 35 Gold RL, air, Travel: 140mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
Rear Shock | RockShox Deluxe Select Plus, air |
Headset | Acros BlockLock |
Stem | Alu, A-head |
Bars | Haibike Components TheBar ++ 780mm |
Front Brake | Shimano MT420, aluminium, 203mm |
Rear Brake | Shimano MT420, aluminium, 203mm |
Brake Lever | Shimano MT401, aluminium |
Rear Mech | Shimano Deore M6100, 12-speed |
Shifters | Shimano Deore M6100, trigger switch |
Speed | 12 |
Rims | WTB ST i35 TCS, double-walled rim |
Front Hub | Shimano MT400-B |
Rear Hub | Shimano MT410-B |
Spokes | Sapim Race, black |
Front Tyre | Schwalbe Magic Mary Evo TLE, 65-584 |
Rear Tyre | Schwalbe Hans Dampf Evo TLE, 65-584 |
Seat Post | Dropper-Post Remote, telescope, 34.9mm, aluminium |
Saddle | Selle Royal Vivo |
Chainset | steel, 38 |
Bottom Bracket | Integrated |
Chain | Shimano CN-M6100 |
Cassette | Shimano M6100, 10-51 teeth |
Pedals | Freeridepedal aluminium, mit Reflektor |
Battery Size (WH) | Intube, PW S2 720Wh |
Motor | Yamaha PW-S2, 250W, 75Nm, 25km/h |
User Interface | Yamaha Side Switch |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Haibike AllTrail 6 27.5 2023 - Electric Mountain Bike.
This product is no longer available.
