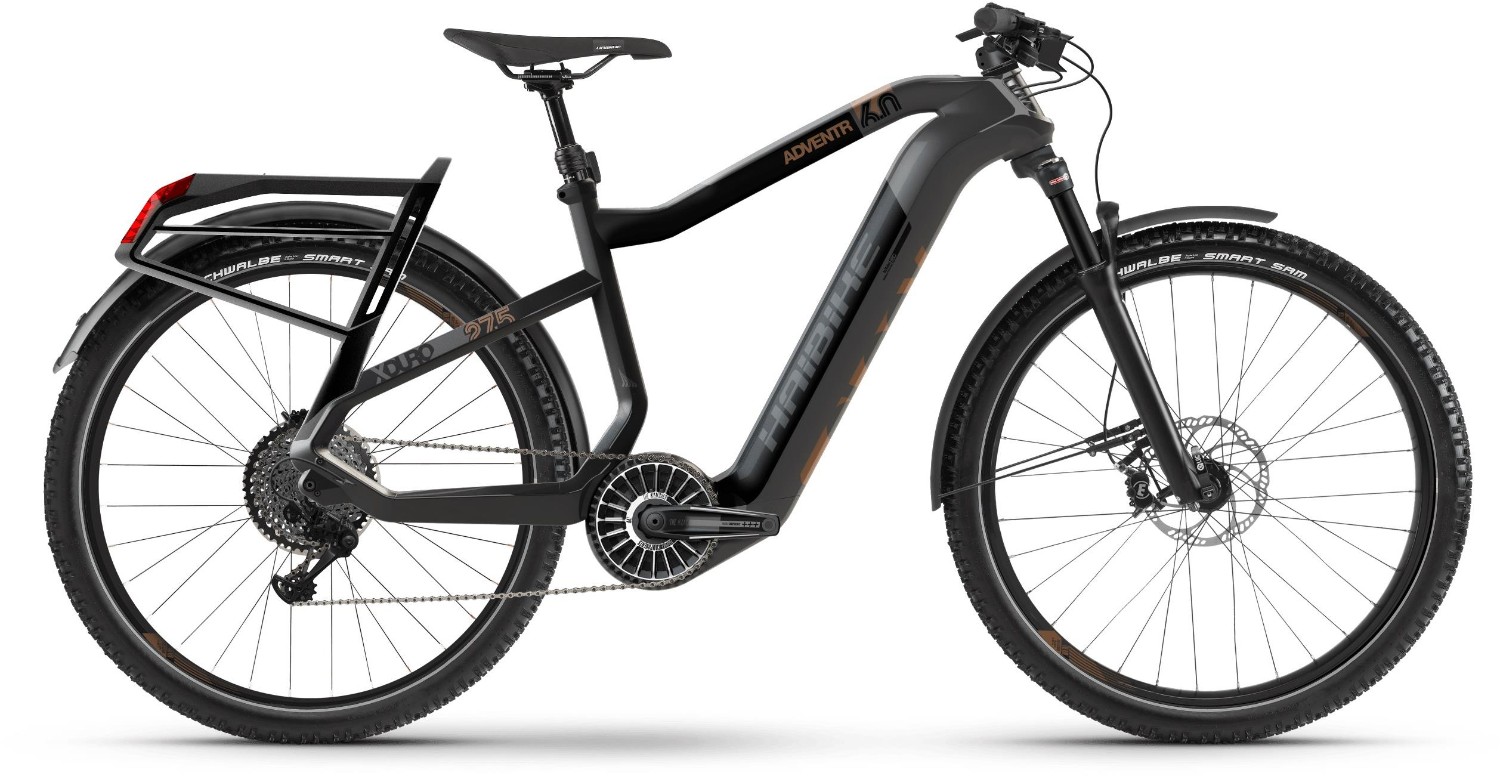

Haibike XDURO Adventr 6.0 FlyOn 27.5" 2021 - Electric Hybrid Bike
.png)
- ShowProduct Information The Haibike XDURO Adventr 6.0 FlyOn 27.5" represent the most extreme, cutting edge, innovation and p... read more
- Show Reviews & Q&As
- Show Electric Bike Size Guide
- Show Electric Urban Bike Guide
- Show Finance
- Show Delivery & Guarantee
- Show What's In The Box
Product Description
The Haibike XDURO Adventr 6.0 FlyOn 27.5" represent the most extreme, cutting edge, innovation and performance focused eBikes on the planet. The 2019 XDURO line up has been re-invented once again, offering a wider range of options than ever before.
From the renowned Yamaha PW-X e bike system, choice of experienced eMTBers everywhere, to the established Bosch CX platform, and now to the revolutionary FlyOn TQ equipped models – our Xduro models continue to set higher standards and push the boundaries of e-mountainbiking.
Spontaneity is the best kind of adventure, and with an all new XDURO ADVENTR at your disposal, you are always ready to go!
Life was meant for adventure and with panniers, integrated lights, 120mm of travel on the front and the new FLYON system what are you waiting for?
Thanks to it’s powerful motor, 630Wh battery and Weber connector for a trailer, the ADVENTR models can carry you and your cargo from the highest mountains to the deepest valleys.
From everyday adventures, to once in a lifetime journeys, our new ADVENTR model gives you the versatility to tackle a wide range of terrain and situations. A new world of possibilities beckons.
Drive Information:
- Motor: Haibike Flyon
- Battery: 630Wh
- User Interface/remote: Haibike HMI, System Control and Remote
- Connectivity: eConnect
Key Features:
- Haibike Frame: We designed and engineered a completely new frame platform around the FLYON models, made of high-quality carbon and utilising a strong and sturdy form language. The Haibike ePerformance system was designed with the goal of achieving a high level of integration through the development of a new, space-saving mounting system for the battery. The battery is inserted longitudinally into a closed profile down tube, which allows for a lighter and more stable construction.
- Haibike chain wheel: A specially constructed and designed Direct Mount chain ring is available with 38 or 42 teeth.
- Haibike Motor: Conquer steep ascents, “fly” over trails, explore new frontiers and extend them: An extra strong power package — made in Germany — ensures the necessary power when you need it, with perfect modulation possible through the five custom assist modes. Together with the technology supplier TQ we developed a dynamic motor that is the most powerful mid motor on the market at the moment providing up to 120 Nm torque. Thanks to it’s patented transmission the motor offers extreme power and efficiency in a compact package.
- Haibike speed sensor disc: A newly developed speed sensor disc sends 18 signals per rotation of the wheel to the system and measures the speed 18 times more accurately than any other system available on the market.
- Haibike display: The colour display centrally positioned above the stem is easy to read in every situation due to the transflective design.
- Haibike Skybeamer: With the skybeamer 5,000 we developed an independent system with daytime running light, which provides classic low beam as well as a high beam light with over 5,000 lumen
- Haibike twin tail lights: With the Haibike Twin Tail Lights you can keep on riding even after the sun sets.
- Haibike eConnect system: Haibike Connect networks your eBike and makes it even smarter: GPS-based anti-theft monitoring, automatic emergency function, bike tracking and route recording and export.
Occasionally, without notice, manufacturers change product design and/or specifications.
Specification
| Frame: | carbon, thru-axle M12 (1.75) x 148mm, disc brake Post Mount |
| Fork: | SR Suntour Aion35 RLR DS air 120 |
| Headset: | A-Head Tapered aluminium mit Lenkanschlag Feimin FP-H858B Alloy 1,5" IS41/28,6 - IS52/39,8 |
| Stem: | Haibike Components TheStem 2 A-head JD-ST202A |
| Bars: | Haibike Components The Bar +++ DI2 Holes 780 JD-MTB479AH.7 |
| Front Brake: | Shimano Deore XT M8020 |
| Rear Brake: | Shimano Deore XT M8000 |
| Brake Lever: | Shimano Deore XT M8000 aluminium |
| Rear Mech: | Shimano Deore XT M8000 Shadow Plus 11 Speed |
| Shifters: | Shimano Deore XT M8000 |
| Speed: | 11 |
| Rims: | Rodi Tryp 35 |
| Front Hub: | Haibike Components TheHub ++ thru-axle 15x110mm Formula DC-711 |
| Rear Hub: | Haibike Components TheHub ++ Steckachse 12x148mm Formula EHL148S |
| Spokes: | DT Swiss Industry black |
| Front Tyre: | Schwalbe Marathon Plus 57-584 |
| Rear Tyre: | Schwalbe Marathon Plus 57-584 |
| Seat Post: | XLC AllMtn, Remote aluminium telescope 34.9 JD-YSP39PL |
| Saddle: | Haibike Components TheSaddle 2058 |
| Chainset: | Haibike XDURO forged |
| Bottom Bracket: | Integrated In Motor |
| Chain: | Shimano HG601 |
| Cassette: | Shimano SLX M7000 11 46 |
| Pedals: | MTB Platform pedal aluminium Feimin FP-969 |
| Battery (Wh): | 630 Wh |
| Motor: | Flyon |
Electric Bike Size Guide
Electric Urban Bike Guide
Electric Urban Bike Guide
Is an Electric Urban Bike Right for Me?
If you are new to the world of cycling and ebikes, our electric bike buyers guide will give you a good overview of the different types of pedal assist bikes. This will help you decide if an electric urban bike is right for you.
E bikes are a great way to cycle further with less effort. Urban electric bikes are designed to be comfortable, practical and efficient on roads and cycle tracks. This means that urban e bikes are perfect for commuting and getting about town as well as effortless cycling on quiet roads and cycle tracks.
How do E Bikes Work?
All our ebikes are pedal assist models. This means that the electric motor adds to your natural pedalling power, making them easier to ride. The effect is seamless, and you will feel the extra boost from the first pedal stroke. The harder you pedal the more the power the motor gives you. When you stop pedalling the motor stops too.
You can vary the amount of power that the drive unit delivers when you pedal. All you need to do is select one of the different power modes using the display unit or power button. Some e bikes allow you to customize these modes through a smart phone app that connects to the bike through Bluetooth.
By law all pedal assist ebike are limited to only offer assistance up to 15.5mph. This means that you can ride an ebike everywhere that you can ride a regular bike. You can of course ride faster, but you will have to rely solely on your own natural pedalling power at speeds over 15.5mph.
Are the motors different?
Hub drive motors
Hub drive motors sit inside the wheel hub. These motors are lighter weight than crank drive units but are less powerful, and the power is applied more subtly. You still get enough power to climb the hills and accelerate from a standing start easily, and once up to speed these bikes are easier to pedal. Because they produce less power, hub drive ebikes tend to have smaller battery packs that can be hidden in the frame more easily.
Crank drive motors
Crank drives use a more powerful motor that sits in the bottom bracket area of the bike. The power is added directly to the drivetrain through the cranks. The added power is much more noticeable on a crank drive bike and you will be able to power up the climbs like a Pro athlete. Of course, you can always turn down the amount of power that the motor delivers. This means that you can extend the range and take advantage of the larger battery packs that these bikes are equipped with.
Batteries
Most e bikes use a lithium Ion battery pack. These hold plenty of charge, offer long lasting performance and are quick to charge. The capacity of the battery varies depending on the model. Battery capacity starts at 200Wh for hub drive bikes and goes up to 500Wh or more on high-end crank drive bikes. The batteries can usually be charged both on and off the bike. A 500Wh battery pack will usually take about 4 hours to charge fully from flat.
Display and Connectivity
All ebikes have some type of display that allows you to swap between the different power modes. On some bikes the display is minimal with LED lights to show the remaining battery capacity and power modes. Others have screen that show additional ride data as well. The very best displays act like a high-end cycling computer.
Which type of electric road bike is best for me?
There are a few different types of urban e bike and each is best for a certain type of cycling. Many come ready fitted with luggage racks and mudguards, but you can fit these accessories to all urban e bikes.
Dutch’ style e bikes
Offering an upright cycling position Dutch style e bikes are comfortable and easy to ride. These bikes are perfect for gentle rides around town. You can visit friends or nip to the shops without looking like a ‘cyclist’.
Hybrid’ style urban e bikes
These bikes are based around the classic hybrid look with a mountain bike style riding position combined with road bike wheels. Hybrid style e bikes offer a sportier riding position, so they are better for cycling on busy streets than a Dutch style e bike.
Flat bar road e bikes
Just like a road e bike but with flat handlebars these bikes offer a very sporty riding position. The flat handlebars mean that they are still easy to navigate through the urban jungle. Fit some mudguards and a rack and these bike are very practical too.
Cargo e bikes
If you want to carry lots of luggage then you can’t beat a cargo e bike for practicality. The pedal assist motor makes lot of sense with a cargo bike. Regular cargo bikes require a lot of muscle power, so this limits their use. You don’t get this problem with a cargo e bike, so everyone can ride one.
