Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

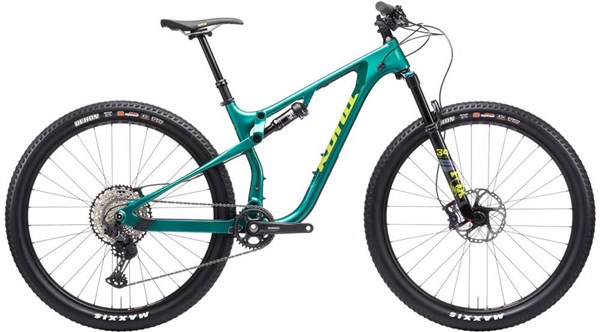

The Hei Hei CR marries practical and sleek to produce a workhorse of a bike. A Shimano XT/SLX 12-speed drivetrain provides reliable shifting across a broad 10-51t gear range. A Fox Float 34 SC Performance fork and DPS Evol Performance rear shock add 120mm of suspension front and rear. The Kona Race Light Carbon frame with updated geometry is the perfect base for riders whether they’re smashing lines between the tape or on their local singletrack.

Key Features:

  • Kona Carbon

Designed to be lightweight and built to demanding standards. Carbon fiber has long been praised for its weight and strength, but rather than chase grams, we place our efforts on the performance that is possible when the right high-modulus fibers are in the right places. Our designers work very closely with our manufacturer to ensure there is no compromise to the desired ride characteristics, durability and – finally – weight stipulations that we expect from our bikes.


  • Internal Headset

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.


  • Tapered Head Tube

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.


  • Tubeless Compatible Rims

Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.


  • 12x148mm Axle

12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.


  • Fuse Independent Suspension

The Fuse Independent Suspension is designed to be as lightweight and efficient as possible, oriented specifically for the demands of the modern XC trail rider. Like all of our suspension platforms, the Fuse IS is designed around a single pivot with a predictable leverage ratio for a responsive, snappy feel. Built for our Hei Hei platform, the frame features a seat stay that relies on small degrees of frame flex rather than a pivot at the seat and chainstay junction. The result is an efficient, laterally stiff suspension system that takes weight savings to a new level.

Occasionally, without notice, manufacturers change product design and/or specifications.


Frame:Kona Race Light Carbon 120mm Travel
Fork:Fox 34 Float SC Performance 120mm Tapered 110mm Spacing
Rear Shock:Fox Float DPS Evol Performance
Headset:FSA No.57E
Stem:Kona XC/BC 35
Bars:Kona XC/BC 35
Front Brake:Shimano RT76 180mm
Rear Brake:Shimano RT76 160mm
Brake Lever:Shimano SLX
Rear Mech:Shimano XT 12spd
Shifters:Shimano SLX 12spd
Rims:WTB KOM Light i27 TCS 2.0
Front Hub:DT Swiss 370 110x15mm
Rear Hub:DT Swiss 370 148x12mm
Spokes:Sandvik Stainless Black 2.0/1.8 Butted
Front Tyre:Maxxis Rekon EXO TR 3C 29x2.25"
Rear Tyre:Maxxis Rekon EXO TR 3C 29x2.25"
Seat Post:Fox Transfer 31.6mm
Saddle:WTB SL8
Chainset:Shimano SLX 12spd
Bottom Bracket:Shimano PF92
Chain:Shimano Deore 12spd
Cassette:Shimano SLX 10-51t 12spd
