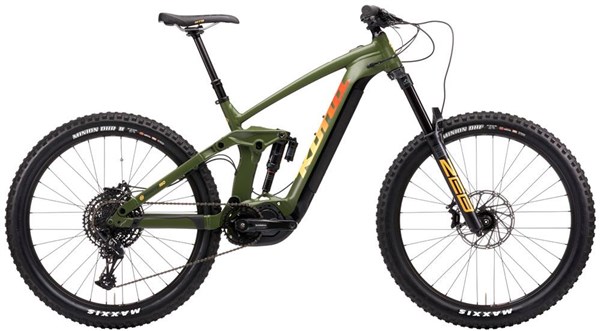

Kona Remote 160 2021 - Electric Mountain Bike
The Remote 160 brings the power of an e-MTB to the masses. After a successful 2020, it’s back and better than ever. Shimano’s E7000 motor with 504 Wh battery means bigger days than ever before. Process-derived geometry provides playful handling on the descents. A 160mm RockShox Zeb Charger R Debonair fork and Super Deluxe Select rear shock provide the perfect amount of squish. E-MTB-specific SRAM Guide RE brakes with 200mm rotors slow you down when you need. Running Maxxis Minion 27.5x2.8” tires give you excellent traction over the roughest terrain.
Key Features:
- Kona 6061 Aluminum
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing’s wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame’s strength and ride characteristics depending on its intended application.
- Internal Headset
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
- Tapered Head Tube
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.
- Tubeless Compatible Rims
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
- 12x148mm Axle
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.
- Beamer Independent Suspension
Built to be off-the-top progressive, Beamer Independent Suspension helps the bike to stay higher in the travel and recover from hits more quickly. The Operators are instilled with what our product managers like to call “pure shock movement,” whereby the shock is protected from side load. Designed to be highly tuneable and extremely durable, the Beamer IS is our version of greased lightning.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Kona 6061 Aluminum Butted 160mm Travel |
Fork | RockShox Zeb Charger R DebonAir 160mm Tapered 110 Spacing |
Rear Shock | RockShox Super Deluxe Select Trunnion |
Headset | FSA No.57E |
Stem | Kona XC/BC 35 |
Bars | Kona XC/BC 35 |
Front Brake | SRAM Centerline 200mm |
Rear Brake | SRAM Centerline 200mm |
Brake Lever | SRAM Guide RE |
Rear Mech | SRAM NX |
Shifters | SRAM SX Single Click |
Speed | 12 |
Rims | WTB KOM Trail i35 TCS |
Front Hub | Formula 110x15mm |
Rear Hub | Formula 157x12mm |
Spokes | Stainless Black 14g |
Front Tyre | Maxxis Minion DHF EXO+ TR 3C 27.5x2.8" |
Rear Tyre | Maxxis Minion DHR II EXO+ TR 3C 27.5x2.8" |
Seat Post | Trans-X Dropper Internal 31.6mm |
Saddle | WTB Volt |
Chainset | Shimano E8000 |
Chain | SRAM SX-Eagle |
Cassette | SRAM SX-Eagle 11-50t 12spd |
Battery Size (WH) | 504Wh |
Motor | Shimano E7000 25KPH |
User Interface | Shimano SC-E7000 Display |
Kona Sizing
ROAD/CX/ASPHALT
HEIGHT - INCH |
HEIGHT - CM |
ROAD/ROVE |
LIBRE |
CX/SUTRA |
DEWS |
COCO |
4'10"-5'1" |
147-155 cm |
46-48 cm |
46 cm |
46-48 cm |
N/A |
XS |
5'0"-5'3" |
152-160 cm |
48-50 cm |
46-49 cm |
48-50 cm |
Small |
Small |
5'2"-5'7" |
157-170 cm |
48-52 cm |
49-51 cm |
48-52 cm |
Small, Medium |
Small, Medium |
5'6"-5'10" |
168-178 cm |
52-54 cm |
51-54 cm |
52-54 cm |
Medium |
Medium |
5'9"-6'0" |
175-183 cm |
52-56 cm |
54-55 cm |
52-56 cm |
Medium, Large |
Medium, Large |
5'11"-6'2" |
180-188 cm |
54-58 cm |
54-55 cm |
54-58 cm |
Large, XL |
Large |
6'1"-6'5" |
185-196 cm |
56-58 cm |
55 cm |
56-58 cm |
XL |
N/A |
MTB/ALL MOUNTAIN/GRAVITY
HEIGHT - INCH |
HEIGHT - CM |
SPLICE |
MTB/XC TRAIL/FAT |
ALL MOUNTAIN/ENDURO |
GRAVITY/DH |
4'10"-5'1" |
147-155 cm |
Small |
XS |
XS |
N/A |
5'0"-5'3" |
152-160 cm |
Small |
Small |
Small |
N/A |
5'2"-5'7" |
157-170 cm |
Small, Medium |
Small, Medium |
Small, Medium |
Medium |
5'6"-5'10" |
168-178 cm |
Medium |
Medium |
Medium |
Medium |
5'9"-6'0" |
175-183 cm |
Medium, Large |
Medium, Large |
Medium, Large |
Medium, Large |
5'11"-6'2" |
180-188 cm |
Large, XL |
Large, XL |
Large, XL |
Large, XL |
6'1"-6'5" |
185-196 cm |
Large, XL |
Large, XL |
Large, XL |
Large, XL |
