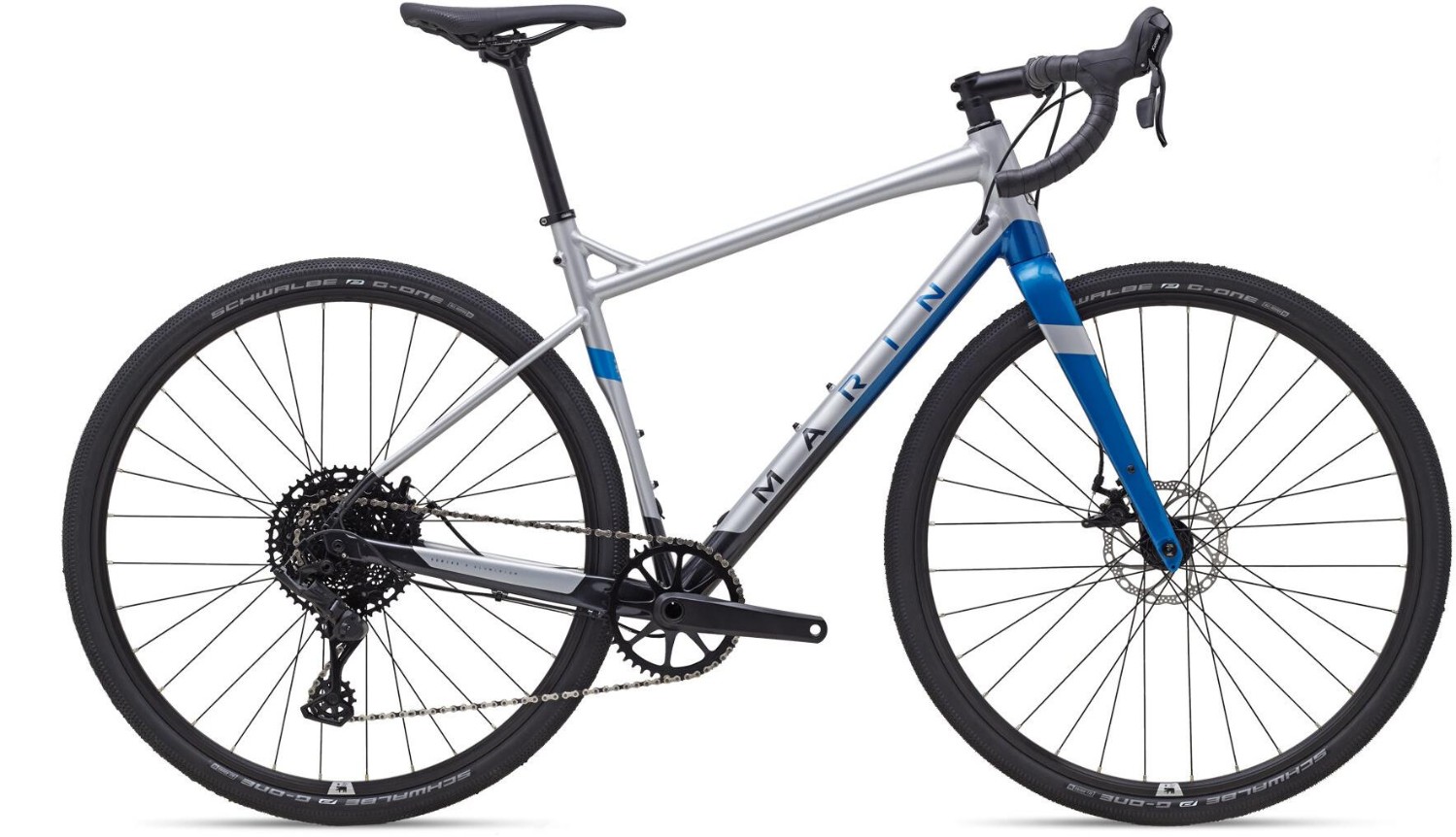

Marin Gestalt X10 2023 - Gravel Bike
Designed from Series 3 beyond road 6061 aluminum, the frame offers a perfect balance of durability and agility. The full carbon fork with a tapered steerer enhances control, and the bike's design features internal cable routing, mudguard, and rack mounts. The 1x10 drivetrain, with Microshift Advent X components, provides a reliable and simple gear-shifting experience, while the Marin alloy handlebars with a 16º flared drop offer comfort and control. The Tektro MD-C500 dual-piston road mechanical disc brakes ensure precise stopping power, and the Marin aluminum double-wall rims paired with WTB Riddler Comp tyres deliver a smooth and capable ride on any terrain.
Key Features:
- Adventure-Ready Frame: Series 3 beyond road 6061 aluminum frame with a tapered head tube, relieved BB, internal cable routing, and flat-mount disc, offering versatility for on and off-road exploration.
- Responsive Fork: Marin full carbon fork with a tapered steerer, 12mm thru-axle, and flat-mount disc, providing responsive handling and control.
- Reliable Drivetrain: Microshift Advent X 10-speed wide-range rear mech, shifter, and a 1x10 forged alloy crankset with a narrow-wide 42t chainring for reliable and efficient performance.
- Precise Braking: Tektro MD-C500 dual-piston road mechanical disc brakes with 160mm rotors for responsive and reliable stopping power.
- Capable Wheels: Marin aluminum double-wall rims, 19mm inner width, and 24mm tall, paired with WTB Riddler Comp tyres (700cx37) featuring a versatile tread pattern for optimal grip on diverse surfaces.
- Dropper Post Routing: Ready for off-road control, the Gestalt X10 comes with dropper post routing, enhancing stability during descents.
- Finance: Available with 0% APR finance
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Bars | Marin Butted Alloy, Compact 16º Flared Drop |
| Front Brake | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Rear Brake | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Brake Lever | microSHIFT Advent X |
| Rear Mech | MicroSHIFT Advent X 10-Speed Wide-Range |
| Shifters | MicroSHIFT Advent X 10-Speed |
| Speed | 10 |
| Rims | Marin Aluminum Double Wall, 19mm Inner, 24mm Tall. |
| Front Hub | Forged Aluminum Alloy, 100x12mm, 6-Bolt Disc, 32H |
| Rear Hub | Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | WTB, Riddler Comp, 700Cx37, Wire Bead |
| Rear Tyre | WTB, Riddler Comp, 700Cx37, Wire Bead |
| Seat Post | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Chainset | Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Chain | KMC X10 |
| Cassette | SunRace 10-Speed, 11-51T |
Marin Gestalt Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S |
160 - 168 | 5'3" - 5'6" |
|
M |
168 - 178 | 5'6" - 5'10" |
| L | 178 - 188 | 5'10" - 6'2" |
| XL | 188 - 193 | 6'2" - 6'4" |
What size frame do I need if I am between sizes? - read here
