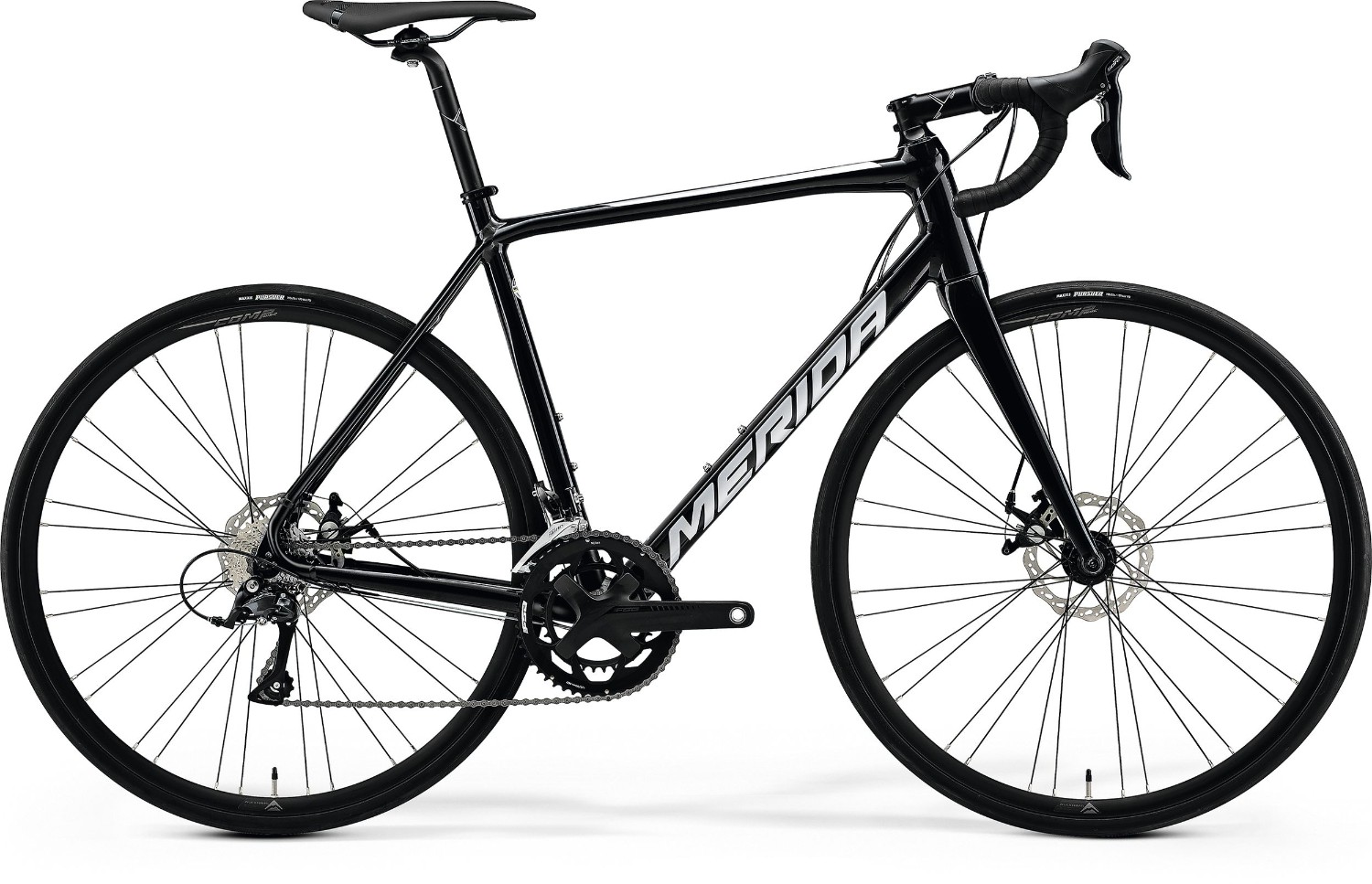

Merida Scultura 200 2024 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite - Hydroformed triple butted 6066 aluminium with smooth welding. Tapered head tube, Pressfit BB Standard, 142 x 12mm axle standard. Max tyre size 700 x 28c |
| Fork | Scultura CF2 Disc; Full carbon; tapered steerer. Max tyre size: 700 x 28c |
| Headset | Merida M2339 Neck |
| Stem | Merida Comp CC; 31.8mm diameter; aluminium; -7 degree rise. Length 80mm (XXS,XS), 90mm (S), 100mm (S/M, M/L) 110mm (L,XL) |
| Bars | Merida Expert SLII; aluminium; Width 380mm (XXS), 400mm (XS), 420mm (S,M,L), 440mm (XL) |
| Front Brake | Promax DSK-330R mechanical disc brake caliper with Promax 160G 160mm rotor |
| Rear Brake | Promax DSK-330R mechanical disc brake caliper with Promax 160G 160mm rotor |
| Brake Lever | Shimano Sora |
| Front Mech | Shimano Sora |
| Rear Mech | Shimano Sora; GS |
| Shifters | Shimano Sora |
| Speed | 18 |
| Rims | Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Joytech D981-12; 100x12mm; 28 spokes with Merida Expert SL axle |
| Rear Hub | Joytech D982TSE-R; 142x12mm; 28 spokes with Merida Comp SL axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead, folding |
| Rear Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead, folding |
| Seat Post | Merida Comp CC; aluminium; 27.2mm diameter; 5mm lay back |
| Saddle | Merida Comp SL with V-mount |
| Chainset | FSA Omega; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L,XL) |
| Bottom Bracket | FSA BB-AL86/Ø19 |
| Chain | KMC M99 |
| Cassette | Microshift CS-9S; 11-28 teeth; 9 speed |
| Pedals | Not Included |
Merida Scultura 2024 Sizing
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
Merida Scultura 2024 Geometry
| FRAME SIZE | XS | S | M | L | XL |
| TYRE SIZES | 28" | 28" | 28" | 28" | 28" |
| SEAT TUBES (mm) | 458 | 481 | 501 | 521 | 550 |
| TOP TUBES (mm) | 535 | 545 | 560 | 575 | 590 |
| CHAIN STAYS (mm) | 408 | 408 | 408 | 408 | 408 |
| HEAD TUBE ANGLE [°] | 72 | 72.5 | 73.5 | 73.5 | 74 |
| SEAT TUBE ANGLE [°] | 74 | 74 | 73.5 | 73 | 73 |
| BOTTOM BRACKET DROPS (mm) | 70 | 66 | 66 | 66 | 66 |
| HEAD TUBE LENGTHS (mm) | 112 | 128 | 140 | 155 | 176 |
| FORK LENGTHS (mm) | 385 | 385 | 385 | 385 | 385 |
| REACH (mm) | 383 | 390 | 395 | 400 | 409 |
| STACKS (mm) | 529 | 542 | 557 | 571 | 593 |
| WHEEL BASE (mm) | 982 | 989 | 990 | 1000 | 1010 |
| STAND OVER HEIGHT (mm) | 745 | 765 | 782 | 800 | 823 |
What size frame do I need if I am between sizes? - read here
