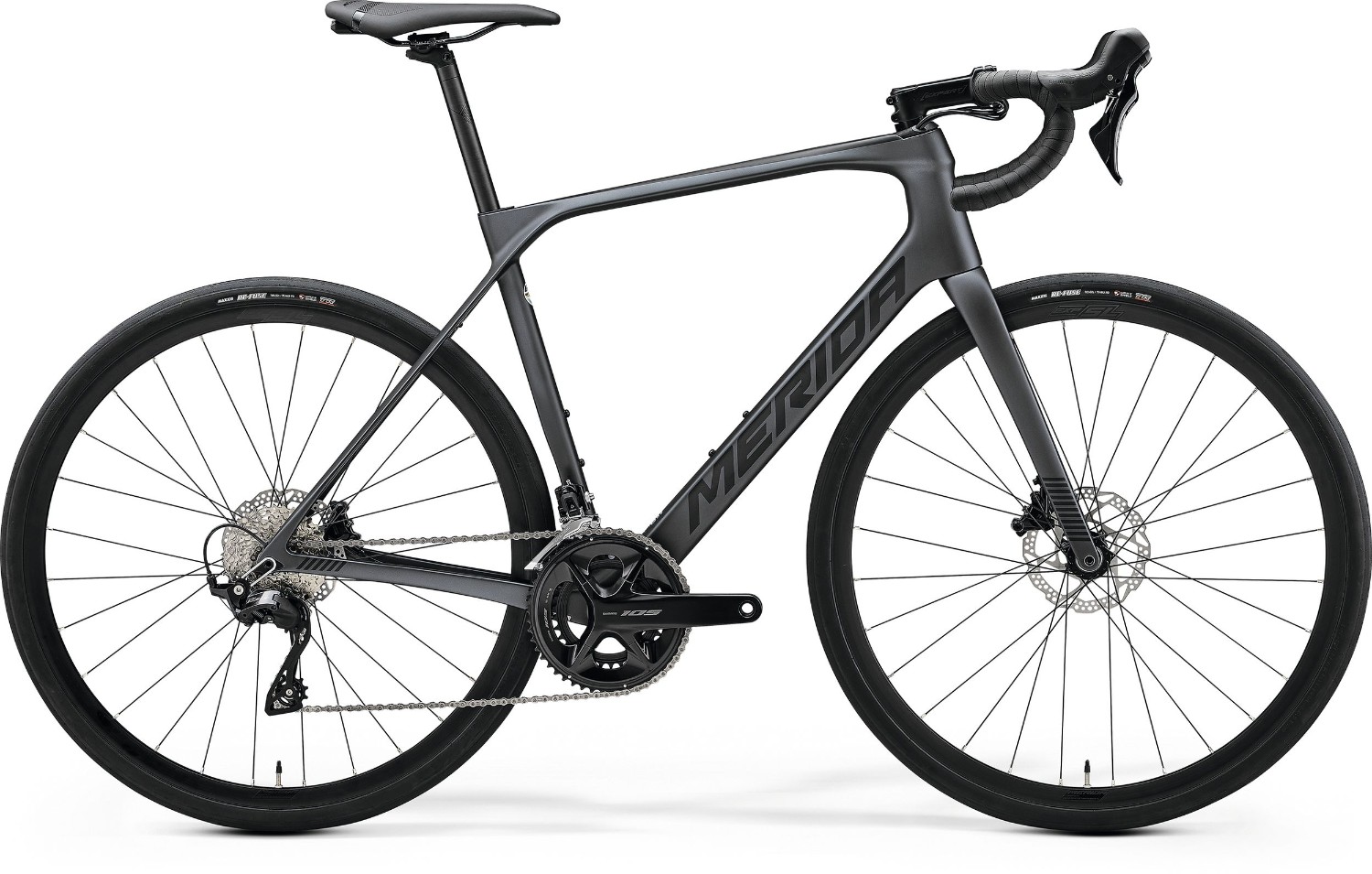

Merida Scultura Endurance 4000 2024 - Road Bike
The Merida Scultura Endurance 4000 is designed to provide a comfortable and relaxed riding experience without compromising on performance. Its CF3 carbon frame, with nano matrix for impact resistance, ensures a lightweight and responsive ride, while internal cable routing maintains a clean aesthetic. Paired with a full carbon fork, tapered steerer, and 12mm through axle, the bike delivers enhanced frame stiffness and steering precision.
Key Features:
- Frame: CF3 carbon frame with internal cable routing and fully integrated seat clamp for a sleek appearance.
- Fork: Full carbon, tapered steerer, with disc cooler for improved heat dissipation during braking.
- Drivetrain: Shimano 105 12-speed groupset for accurate shifting and efficient power transfer.
- Brakes: Shimano 105 hydraulic disc brakes provide reliable stopping power in all conditions.
- Wheels: Merida Expert SLII rims with tubeless-ready design, paired with Maxxis Re-Fuse tyres for excellent grip and puncture protection.
- Other Standout Feature: Wide tyre clearance (up to 35c) for added comfort on rough roads, longer head tube for a relaxed riding position, and flat mount rear brake with disc cooler for optimal braking performance.
- Available with 0% APR finance.
The Scultura Endurance 4000 strikes the perfect balance between comfort and performance, making it an ideal choice for riders seeking adventure on tarmac roads. With its modern frame design, comfort-oriented geometry, and high-quality components, this bike ensures a smooth and enjoyable ride, allowing you to explore new routes and enjoy long hours in the saddle with confidence and ease.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 12mm through axle, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard) |
| Fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard) |
| Headset | Merida-8151 Semi integrated HS |
| Stem | Merida Expert CW; aluminium; 31.8mm diameter; -7 degree rise. Length 80mm (XXS), 90mm (XS), 100mm (S,M), 110mm (L), 120mm (XL) |
| Bars | Merida Expert SLII; aluminium; Width: 380mm(XXS), 400mm (XS,S), 420mm (M,L), 440mm (XL) |
| Front Brake | Shimano 105 hydraulic disc brake caliper with Shimano RT54 160mm rotor |
| Rear Brake | Shimano 105 hydraulic disc brake caliper with Shimano RT54 160mm rotor |
| Brake Lever | Shimano 105 |
| Front Mech | Shimano 105 |
| Rear Mech | Shimano 105; GS |
| Shifters | Shimano 105 disc |
| Speed | 24 |
| Rims | Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Joytech D981SB; 100x12mm; 28 spokes; Centerlock with Merida Comp SL axle |
| Rear Hub | Joytech D872SB; 12x142mm; 28 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Maxxis Re-Fuse; 700 x 32C; Kevlar bead, folding |
| Rear Tyre | Maxxis Re-Fuse; 700 x 32C; Kevlar bead, folding |
| Seat Post | Merida Expert CC; 27.2mm diameter; 15mm lay back; Carbon |
| Saddle | Merida Comp SL with V-mount; including Merida minitool |
| Chainset | Shimano 105; FCR7100, 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (M,L), 175mm (XL) |
| Bottom Bracket | Shimano BB71-41B, Pressfit 86.5 |
| Chain | Shimano CN-M6100-12 |
| Cassette | Shimano CS-R7101; 11-34 teeth; 12 speed |
| Pedals | Resin Platform |
Merida Scultura Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
What size frame do I need if I am between sizes? - read here
