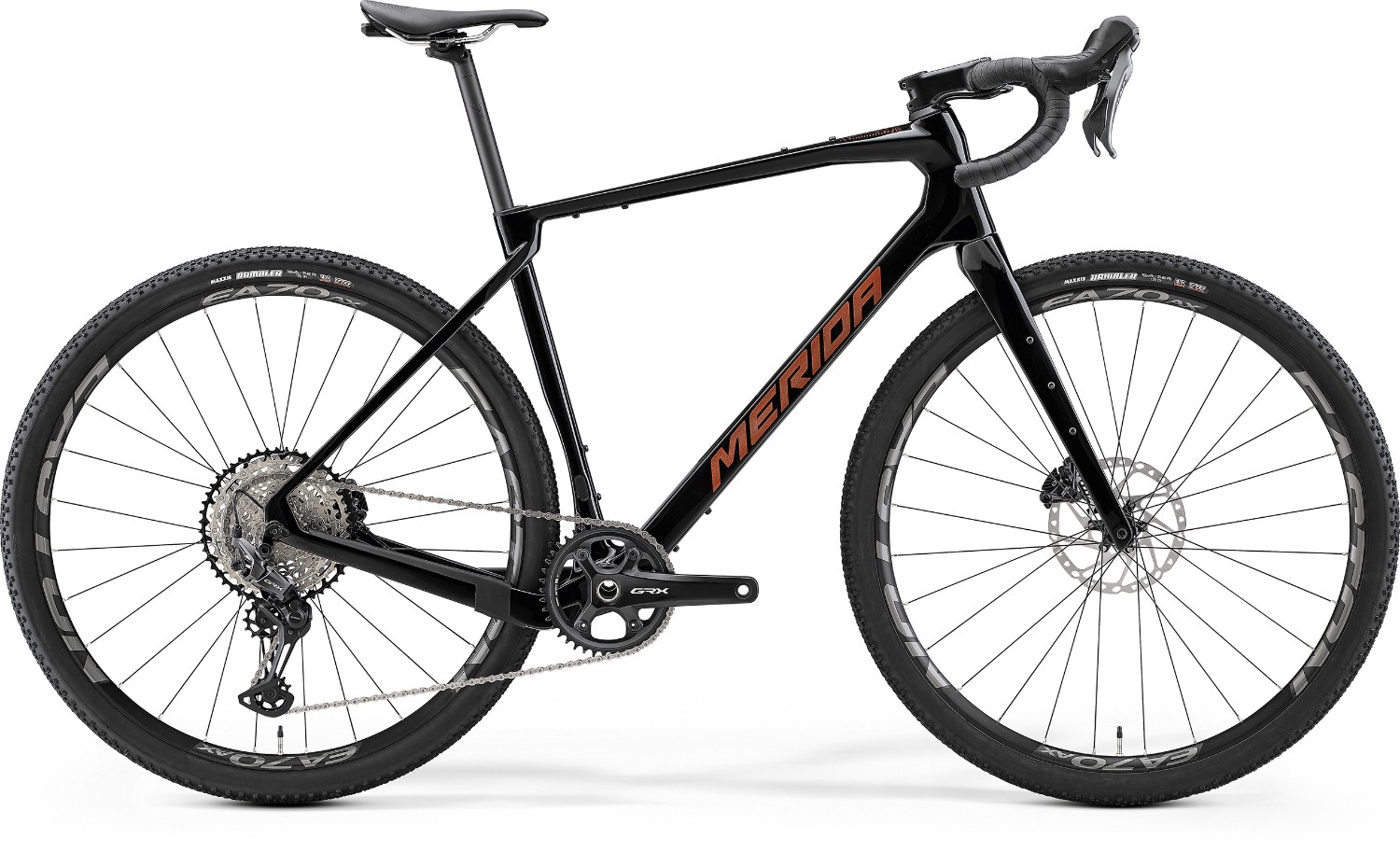

Merida Silex 7000 2024 - Gravel Bike
- CF2 carbon II frame with gravel geometry
- Full carbon fork with tapered steerer and 100 x 12mm axle standard
- Shimano GRX820 1x12-speed with 42-tooth chainset, ensuring smooth shifting and efficient power transfer
- Shimano GRX820 hydraulic disc brakes with 160mm front and 180mm rear rotors, offering reliable stopping power
- Easton EA70 AX wheelset with 24mm inner rim width, providing stability and durability
- Maxxis Rambler 45mm tyres with Kevlar bead and EXO technology, ensuring superior grip and puncture resistance
- Available with 0% Finance
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF2 carbon II, gravel geometry for stable but nimble handling. Tapered head tube Inboard disc mounts. Threaded BB, 142 x 12mm axle standard, disc cooler technology, Max tyre size 700 x 45c (42c with mudguards) |
| Fork | Silex CF2 II; Full carbon; tapered steerer, 100 x 12mm axle standard; Max tyre size: 700 x 45c (42c with mudguards) |
| Headset | Merida-8158 Semi Integrated HS |
| Stem | Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise. Stem length: 80mm all sizes with Garmin + GoPro/Light Mount |
| Bars | Merida Expert GRII; aluminium; Width: 400mm (XS,S), 420mm (M) , 440mm (L/XL) |
| Front Brake | Shimano GRX820 hydraulic disc brake caliper with Shimano RT64 160mm rotor |
| Rear Brake | Shimano GRX820 hydraulic disc brake caliper with Shimano RT64 180mm rotor |
| Brake Lever | Shimano GRX820 |
| Rear Mech | Shimano GRX822 |
| Shifters | Shimano GRX820 |
| Speed | 12 |
| Rims | Part of wheelset - Easton EA70 AX; 24mm inner rim width; 20mm rim depth; aluminium |
| Front Hub | Part of wheelset - Easton EA70 AX; 100x12mm; Centerlock; aluminium with Merida Expert TR axle |
| Rear Hub | Part of wheelset - Easton EA70 AX; 42x12mm; Centerlock; aluminium with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | part of wheelset |
| Front Tyre | Maxxis Rambler; 700 x 45C; Kevlar bead, folding; TR; EXO |
| Rear Tyre | Maxxis Rambler; 700 x 45C; Kevlar bead, folding; TR; EXO |
| Seat Post | MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, material: Carbon |
| Saddle | Merida Expert SL with V-mount; including Merida minitool |
| Chainset | Shimano GRX820; 42 tooth chainset. Crank length: 170mm (XS,S), 172.5mm (M), 175mm (L,XL) |
| Bottom Bracket | Shimano SM-BBR60 |
| Chain | Shimano M7100 |
| Cassette | Shimano CS-M7100; 10-51 teeth; 12 speed |
| Pedals | Resin Platform |
Merida Silex 2024 Sizing
|
|
XS |
S |
M |
L |
XL |
|
Rider Height (Inch) |
5’3" – 5’5” |
5’4" – 5’9” |
5’7" – 5’11” |
5’10" – 6’2” |
6'1" – 6’5” |
|
Ride Height (cm) |
162 - 167 |
165 - 177 |
173 - 185 |
181 - 192 |
188 - 200 |
Merida Silex 2024 Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| TYRE SIZE | 28" | 28" | 28" | 28" | 28" |
| SEAT TUBE LENGTH | 440mm | 470mm | 500mm | 530mm | 560mm |
| TOP TUBE LENGTH | 550mm | 565mm | 580mm | 600mm | 620mm |
| CHAIN STAY LENGTH | 430mm | 430mm | 430mm | 430mm | 430mm |
| HEAD TUBE ANGLE | 69.5 deg | 69.5 deg | 69.5 deg | 69.5 deg | 69.5 deg |
| SEAT TUBE ANGLE | 74.5 deg | 74.5 deg | 74.5 deg | 74.5 deg | 74.5 deg |
| BOTTOM BRACKET DROP | 75mm | 75mm | 75mm | 75mm | 75mm |
| HEAD LENGTH | 130mm | 150mm | 170mm | 190mm | 210mm |
| FORK LENGTH | 415mm | 415mm | 415mm | 415mm | 415mm |
| REACH | 392mm | 402mm | 412mm | 426mm | 441mm |
| STACK | 570mm | 588mm | 607mm | 626mm | 645mm |
| WHEEL BASE | 1048mm | 1065mm | 1082mm | 1104mm | 1126mm |
| STAND OVER HEIGHT | 744mm | 771mm | 798mm | 825mm | 852mm |
