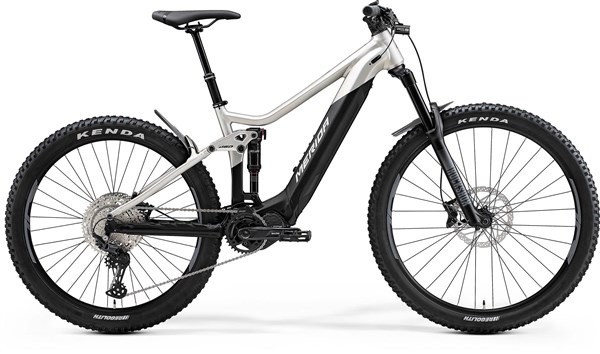

Merida eOne-Sixty 500 2021 - Electric Mountain Bike
Aluminium full suspension eBike powered by the new mopre powerful 85NM Shimano Steps EP8 motor with a Shimano 630w battery. Rock Shox Suspension, Shimano hydraulic brakes and 11 speed Shimano Deore transmission.
After 3 years of fantastic reviews, awards and accolades we distilled the essence of the ‘old’ eOne-Sixty to create an innovative new carbon frame with easy access internal battery that can be charged on or off the bike.
After a huge investment in technology, we were able to replicate the frame in aluminium. The new laser cutting machine can perform all the process previously done by 6 CNC machines in a matter of minutes.
The new eOne Sixty is perfect for e-enduro riding with its perfectly tuned MTB geometry and ""mullet"" wheel standard it feels incredibly planted when descending the most demanding of trails.
Our design ethos perfectly mirrors Shimano, creating eBike products that mirror normal riding.
We use the brand new Shimano EP8 motor delivering 85NM but in a very smooth and natural manner powered by the the new Shimano 630w battery to keep you riding longer.
The eOne-Sixty 500 features Rock Shox Suspension, Shimano hydraulic brakes and 11 speed Shimano Deore transmission
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lite III - Hydroformed 6066 series triple butted aluminium tubing with intergrated battery technology and internal cable routing via Smart entry ports for rattle free running. Aggressive enduro geometry delivers 150mm of rear wheel travel. |
Fork | Rock Shox 35 Gold RL; Air; 160mm travel; Tapered; 51mm fork offset |
Rear Shock | Rock Shox Deluxe Select+ |
Headset | Merida-8152 |
Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length : 40 mm all sizes |
Bars | Merida Expert eTR; 780mm wide; 20mm rise |
Front Brake | Shimano M4100; 4 piston hydraulic disc brake with Shimano RT30; 203 mm rotor |
Rear Brake | Shimano M4100; 4 piston hydraulic disc brake with Shimano RTEM300; 203 mm rotor |
Rear Mech | Shimano Deore RDM5100 11 |
Shifters | Shimano Deore M5100 11 |
Speed | 11 |
Rims | Merida Comp TR; 29mm inner rim width; Material: aluminium |
Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Centerlock |
Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key |
Spokes | Black stainless |
Front Tyre | Kenda Regolith; 29" x 2.4"; wire bead |
Rear Tyre | Kenda Regolith; 27.5" x 2.6"; wire bead |
Seat Post | Merida Comp TR; 30.9mm diameter; in-line; XS 100mm drop - S/M 125mm drop - L/XL 150mm drop with Shimano SL -MT500-IL lever |
Saddle | Merida Comp CC; V-mount |
Chainset | Shimano CRE70B; 34 teeth chainwheel with Shimano FCEM600; 165mm length crank |
Bottom Bracket | Part of Shimano Steps motor |
Chain | Shimano CN-HG601-11 speed |
Pedals | VP Components, VPE-537 |
Battery Size (WH) | Shimano E8036; 630Wh battery |
Motor | Shimano EP8; 85Nm motor |
Merida eOne-Sixty 2021 Size Chart
Size |
Height cm |
Height feet & Inches |
XS (41cm) |
157 – 165 |
5’1” – 5’5” |
S (42cm) |
165 -171 |
5’5” – 5’7” |
M (44cm) |
171 - 179 |
5’7” – 5’11” |
L (47cm) |
179 - 187 |
5’11” – 6’2” |
XL (50cm) |
187 - 198 |
6’2” – 6’6” |
Merida eOne-Sixty 2021 Geometry
Frame Size |
XS |
S |
M |
L |
XL |
Tire Sizes |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
Frame Size cm |
41 |
42 |
44 |
47 |
50 |
St Seat Tube mm |
405 |
420 |
440 |
470 |
500 |
Top Tube mm |
563 |
584 |
605 |
629 |
652 |
Chain Stay Length mm |
439.5 |
439.5 |
439.5 |
439.5 |
439.5 |
Head Tube Angle |
65.5 |
65.5 |
65.5 |
65.5 |
65.5 |
Seat Tube Angle |
75.5 |
75.5 |
75.5 |
75.5 |
75.5 |
Bottom Bracket Drop mm |
17.05.20 |
17.5 |
17.5 |
17.5 |
17.5 |
Head Tube mm |
110 |
115 |
120 |
135 |
150 |
Fork Length mm |
571 |
571 |
571 |
571 |
571 |
Reach mm |
400 |
420 |
440 |
460 |
480 |
S Stack mm |
628.5 |
633 |
637.5 |
651.5 |
665 |
Wheelbase mm |
1168 |
1190 |
1212 |
1238.5 |
1265 |
Stand Over Height mm |
742 |
737 |
733 |
740 |
754 |
What size frame do I need if I am between sizes? - read here
