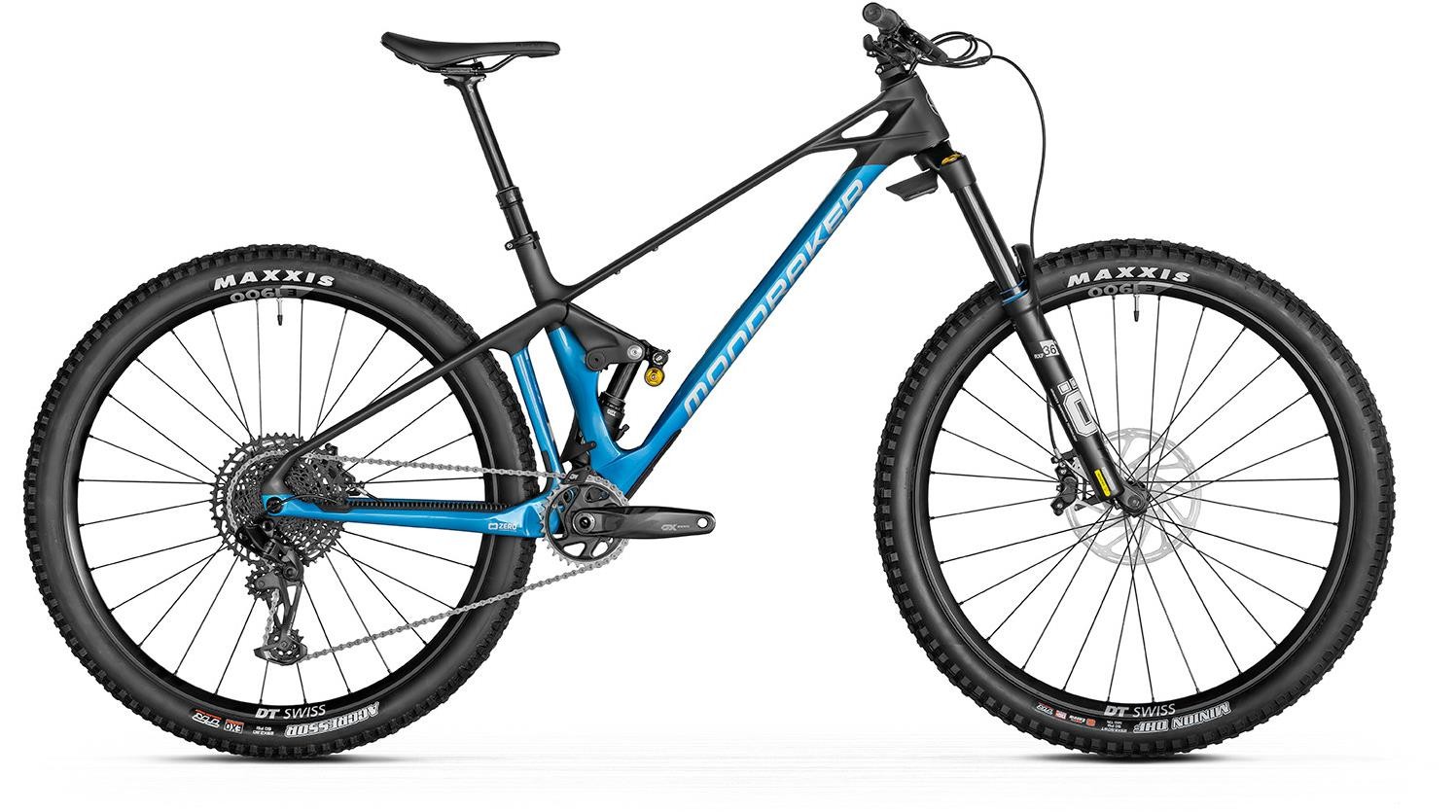

Mondraker Foxy Carbon RR 29" Mountain Bike 2022 - Enduro Full Suspension MTB
- Carbon frame with Forward Geometry for a confident ride
- Öhlins TTX air shock offers 150mm of tuneable rear travel
- Öhlins RXF 36 fork offers 160mm of suspension capability
- SRAM 4 piston G2 brakes for confident stopping power
- 29” DT Swiss wheels with Maxxis Minions offer grip where you need it most
- Colours: Marlin Blue-Carbon
- Sizes: S, M, L, XL
- The Mondraker Foxy RR is available with 0% APR finance
You’re one of those riders who enjoys going up, but what you really, really love are the flowy trails on the way back down, taking full advantage of everything ridable in the area. You live every second of the ride, pushing your limits as far as you can, and when you get to the bottom, that buzz as you tell your mates about that curve you nailed, that jump that you have been wanting to clear forever and which at last you finally sent ... Without a doubt you’re one us, you have Mondraker DNA, and we love that! That’s why our Enduro and All Mountain bikes offer you FORWARD GEOMETRY, our ZERO SUSPENSION SYSTEM, and some of them even have MIND, technology to let you set up your suspension absolutely perfectly. And best of all yet, is that with any one of them you’ll feel like the most amazing rider on the planet.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free cycle insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design |
Fork | Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
Rear Shock | Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Stem | Onoff Sulfur FG 30mm, 6061 forged alloy, 31.8mm barbore |
Bars | Onoff Sulfur Carbon 1.0, rise: 25mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Front Brake | Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Rear Brake | Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Brake Lever | Sram G2 RS, SwingLink, tool-free reach adjust |
Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shifters | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
Speed | 12 |
Rims | DT Swiss EX1700 Spline 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes |
Front Hub | DT 350, Boost 15x110mm, IS 6 bolts |
Rear Hub | DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub |
Spokes | DT Competition, straightpull |
Front Tyre | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Rear Tyre | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
Chainset | Sram GX Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm, 32T, CNC-machined alloy, X-SYNC 2 |
Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
Chain | Sram NX Eagle, 12s, Powerlock |
Cassette | Sram XG-1275, 10-52T, 12s |
Weight | 13,4 kg |
Mondraker Foxy Carabon 2022 Size Chart
Size |
Height (cm) |
Height (feet) |
S |
162 – 170 cm |
5’4” – 5’7” |
M |
167 – 180 cm |
5’6” – 5’11” |
L |
175 – 187 cm |
5’9” – 6’2” |
XL |
185 – 198cm |
6’1” – 6’6” |
Mondraker Foxy Carabon 2022 Geometry
FRAME SIZE |
S |
M |
L |
XL |
Seattube length |
375 mm |
415 mm |
445 mm |
500 mm |
Toptube length |
600 mm |
620 mm |
650 mm |
670 mm |
Bottom bracket drop |
-30 mm |
-30 mm |
-30 mm |
-30 mm |
Bottom bracket height |
345 mm |
345 mm |
345 mm |
345 mm |
Chainstay length |
445 mm |
445 mm |
445 mm |
445 mm |
Seat tube angle |
70° |
70° |
70° |
70° |
Effective seattube angle |
75.5° |
75.5° |
75.5° |
75.5° |
Headtube angle |
64.5° |
64.5° |
64.5° |
64.5° |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
Wheelbase |
1210 mm |
1233 mm |
1260 mm |
1286 mm |
Headtube length |
90 mm |
100 mm |
115 mm |
130 mm |
Reach |
445 mm |
465 mm |
485 mm |
505 mm |
Stack |
617 mm |
627 mm |
641 mm |
656 mm |
What size frame do I need if I am between sizes? - read here
