(no reviews)Product ID: 245705

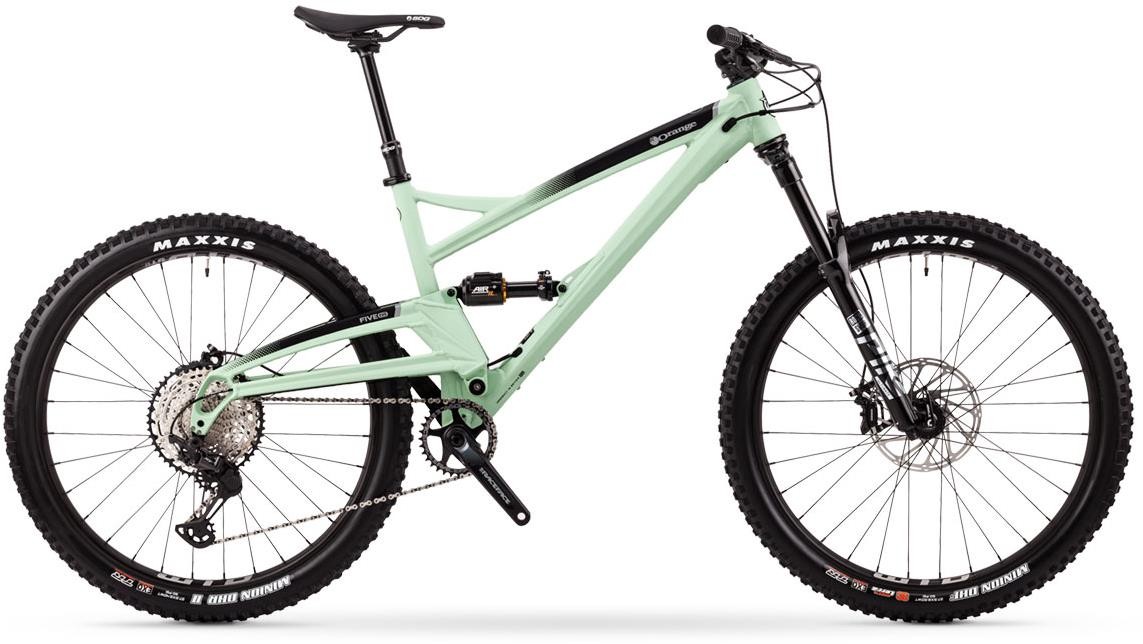

Orange Five Evo Pro Line 27.5" Mountain Bike 2023 - Trail Full Suspension MTB
The Orange Five Evo Pro Line encapsulates the pinnacle of short-travel brilliance, defying expectations with its exceptional performance that rivals longer travel bikes. Crafted with pride in Britain using 6061-T6 monocoque custom aluminium tubing, this bike stands out with its instantly recognizable Orange frame, a result of meticulous craftsmanship in Halifax Frame Works. The single-pivot suspension platform, a hallmark of Orange, is perfectly tuned for efficiency and reliability, while the Evo's innovative features like offset asymmetric pivot and reduced offset fork enhance chainline versatility, cockpit comfort, and overall trail prowess.
Key Features:
- Frame: Constructed with precision using 6061-t6 monocoque UK-formed custom aluminium tubing, the Orange Five Evo Pro Line boasts a robust yet agile frame design.
- Front Suspension: Equipped with a RockShox Pike Ultimate 140mm 27.5 fork, delivering responsive and controlled performance on varied terrains.
- Rear Suspension: Features a Cane Creek DB Air IL 190x45 shock, providing 130mm of rear travel for a plush and progressive ride.
- Drivetrain: The SRAM SX Eagle shifter and Shimano XT 12spd rear mech paired with a Race Face Aeffect 32t crankset deliver a reliable and efficient 1x12 drivetrain.
- Brakes: SRAM Guide RE brakes (200mm front/180mm rear) ensure powerful and consistent stopping performance for confident descents.
- Wheels: 27.5” WTB ST Light i30 rims with Hope Pro 4 hubs.
- Tyres: Maxxis Minion DHF/DHR II tires (2.5/2.4), for the perfect balance of grip and durability.
- Available with 0% APR finance, making it accessible for riders seeking premium performance without compromise.
The Evo geometry of the Five Evo Pro Line elevates trail biking, seamlessly blending the feel and confidence of big-travel enduro bikes with the agility of a short-travel trail machine. The extended cockpit, reduced offset fork, and slacker head angle create an astonishingly balanced and reactive ride, defying the norms of short-travel platforms. With a 5-year frame warranty and limited lifetime crash replacement, the Orange Five Evo Pro Line stands as a testament to British craftsmanship and trail bike evolution, promising riders an unparalleled experience on every twist and turn.
FRAME EVOLUTION
Instantly, you can see the frames are Orange, with our distinctive layout and profiles. They are fabricated in 6061-T6 Aluminium by the craftsmen at our Halifax Frame Works. Brand new tooling and jigs were specifically built and developed for these new models, leaving no stone unturned when it comes to new frames' feature list.
The laterally stiff single-pivot platform is a format we feel we own. We have more experience with this suspension system than any other bike company out there. For us, working with component manufacturers to achieve the perfect shock tunes for our frames is one of the most exciting aspects of the job. It’s a two-way street as the Orange single-pivot system is a perfectly clean platform for manufacturers to develop their shocks with too, So it’s a win-win situation for everyone.
The Evo frames have all the features you would expect from Orange and a few touches you probably may not notice at first glance. To mention a few:
The Evo’s offset asymmetric pivot gives us scope to run various sizes of chainring or chain-lines (hey, you never know).
The geometry is designed for a reduced offset fork which allows us to lengthen the cockpit and keep the riders weight balanced in the sweet spot, while making the most of the front wheel’s grip in turns.
Small details like bottle bosses, cleaner cable routing and space for piggy-back shocks - even on a short travel-platform, show we’ve been listening to our test riders’ feedback and implementing subtle changes that just make everything better.
THE EVO GEOMETRY CONCEPT
The thinking behind the Evo geometry on these two models is to bring the feel and confidence of the big-travel enduro bike into the realm of the aggressive short-travel trail bike. With a lighter frame construction and audacious angles these bikes are truly eye-opening.
The geometry has a familiar effective top tube length which means your cockpit is a comfortable space when climbing. Flip that gradient downwards, slam the dropper post and step-up out of the saddle to descend and the Evo comes into its own. The long reach gives the rider plenty of space to move around the bike, keeping the weight over the front wheel - this is also helped by the reduced offset fork.
The slacker Evo head angle lets the fork do its job, right it in the firing line, and keeps everything stable with its long wheel base.
Ultimately you will not believe this is a short-travel platform. Rapid, reactive and beautify balanced, the Evos defy logic. They are the Evolution of the trail bike as we know it.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing |
| Fork | RockShox Pike Ultimate 140mm 27.5 |
| Rear Shock | Cane Creek DB Air IL 190x45 |
| Headset | Cane Creek 49mm For Tapered Steerer |
| Stem | Burgtec Enduro Black 42.5mm |
| Bars | Burgtec RideWide Enduro 800mm |
| Front Brake | SRAM Guide RE 200/180 |
| Rear Brake | SRAM Guide RE 200/180 |
| Rear Mech | Shimano XT 12spd |
| Shifters | SRAM SX Eagle |
| Speed | 12 |
| Rims | WTB ST Light i30 |
| Front Hub | Hope Pro 4 (Black) 27 |
| Rear Hub | Hope Pro 4 (Black) 27 |
| Front Tyre | Maxxis Minion DHF 2.5 3C Exo 27.5 |
| Rear Tyre | Maxxis Minion DHR II 2.4 Exo 27.5 |
| Seat Post | SDG Tellis 150mm |
| Saddle | SDG Strange Bel Air III |
| Chainset | Race Face Aeffect 32t |
| Bottom Bracket | Race Face |
| Chain | KMC 12spd |
| Cassette | Shimano SLX 10-51t 12spd |
| Pedals | Resin Platform Pedals |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
