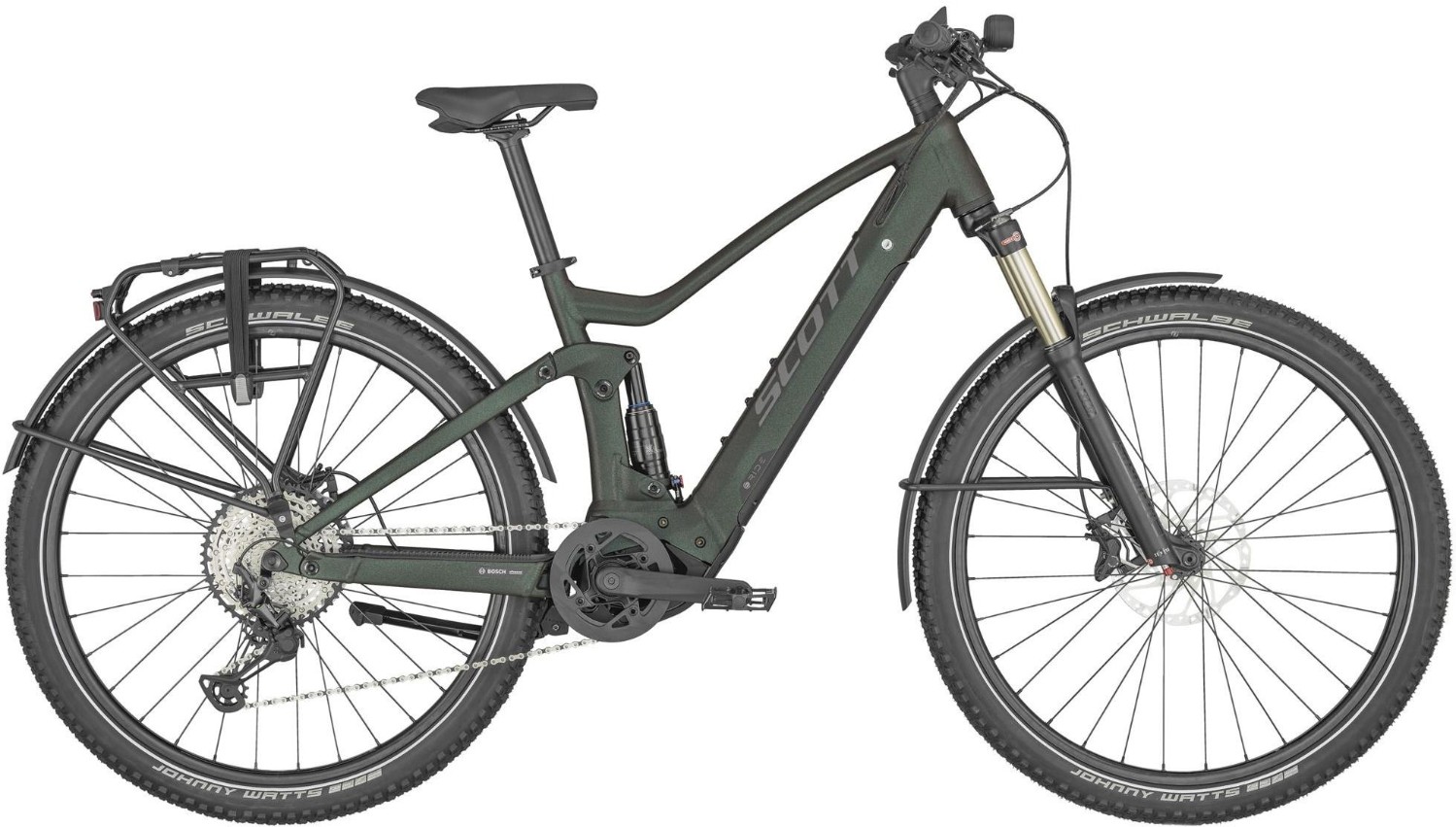

Scott Axis eRIDE FS 20 2024 - Electric Hybrid Bike
Please note that bike specifications are subject to change without prior notice.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Virtual 4 link kinematic VLK, 29" / Boost 148x12mm, 130mm travel / Bosch Integrated Battery, Range Booster Ready |
| Fork | Suntour XCR34 / Tapered / S-XL 29" / 130mm Travel / Maxle Lite / Remote Lock Out |
| Rear Shock | X-Fusion NUDE Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control -Descend, Reb. Adj., Travel 130-85-Lockout / 185X50mm |
| Headset | Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8", OD 50/62mm / ID 44/56mm |
| Stem | Syncros FL3.0 with front Light mount and Kiox mount |
| Bars | Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise |
| Front Brake | Shimano BR-MT520 4 Piston. F: Shimano SM-RT64 CL 203 mm, R: Shimano RT-EM600 CL 203 mm |
| Rear Brake | Shimano BR-MT520 4 Piston. F: Shimano SM-RT64 CL 203 mm, R: Shimano RT-EM600 CL 203 mm |
| Front Mech | SCOTT Chainguide |
| Rear Mech | Shimano RD M8100SGS / 12 Speed |
| Shifters | Shimano Deore Trigger SL-M6100RA |
| Speed | 12 |
| Rims | Syncros MAXX Disc / 32H, Tubeless ready |
| Front Hub | F: Formula CL-811 / 15x110mm, R: Formula MSC-148S / Boost 12x148mm |
| Rear Hub | F: Formula CL-811 / 15x110mm, R: Formula MSC-148S / Boost 12x148mm |
| Spokes | Sapim double butted |
| Front Tyre | Schwalbe Johnny Watts 29x2.35" Wired |
| Rear Tyre | Schwalbe Johnny Watts 29x2.35" Wired |
| Seat Post | Syncros FL3.0 / 31.6 |
| Saddle | Syncros Capilano |
| Chainset | FSA CK-745 IS GEN4 MTB 170MM |
| Chain | KMC E12S |
| Cassette | Shimano CS-M7100-12 10-51T 12S |
| Pedals | VP VPE-506 |
| Battery Size (WH) | PowerTube 625Wh |
| Motor | Bosch Performance CX BES2 |
| User Interface | Kiox Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
