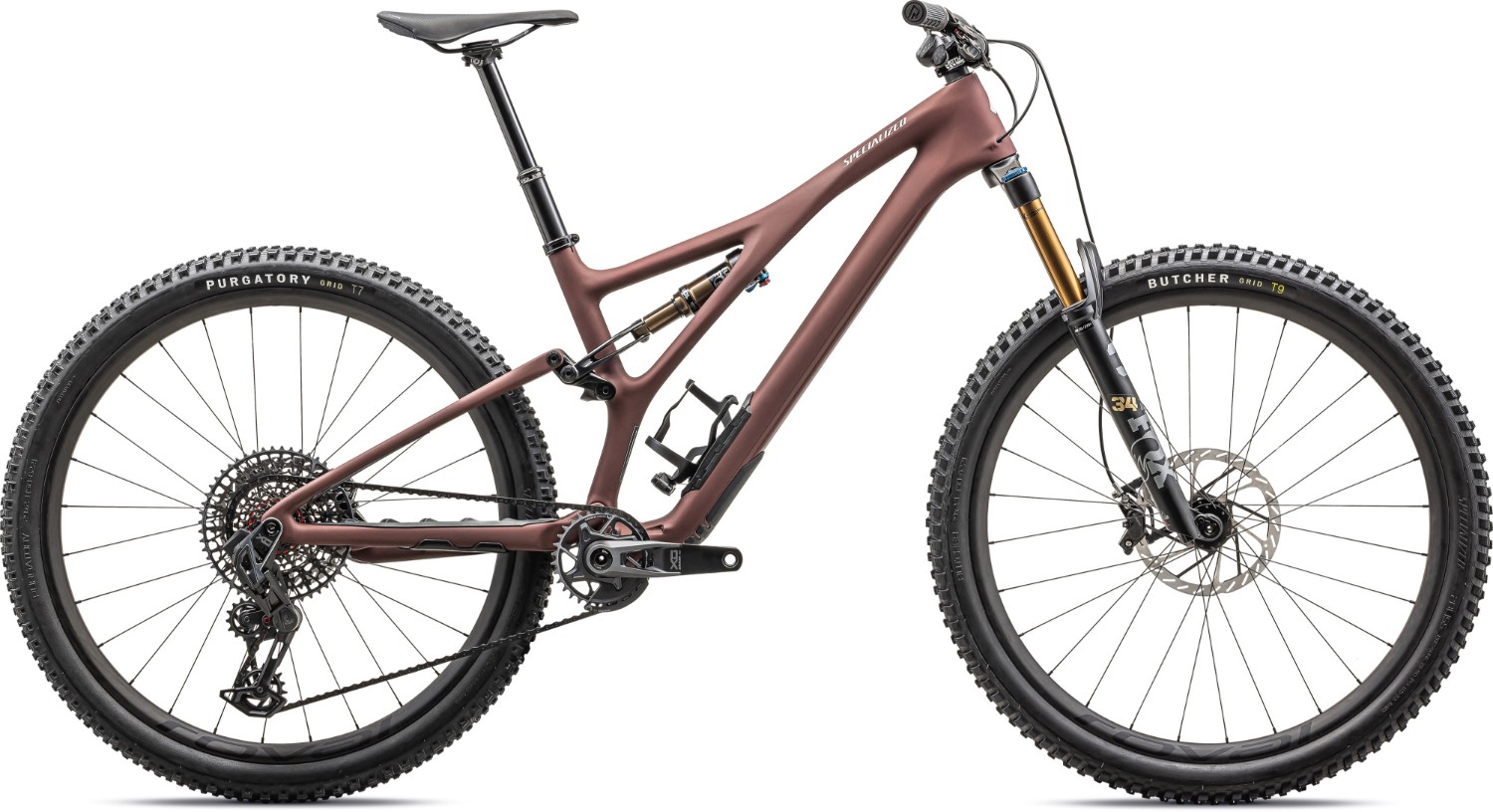

Specialized Stumpjumper Pro T-Type Mountain Bike 2023 - Trail Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm UDH compatible rear spacing |
| Fork | FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel |
| Rear Shock | FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm |
| Stem | Deity, 35.0mm |
| Bars | Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm |
| Front Brake | SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor |
| Rear Brake | SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor |
| Rear Mech | SRAM X0 Eagle Transmission Derailleur |
| Shifters | SRAM AXS POD Controller |
| Speed | 12 |
| Rims | Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready |
| Front Hub | DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h |
| Rear Hub | DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
| Front Tyre | Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3" |
| Rear Tyre | Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3" |
| Seat Post | Bike Yoke, Revive Max, 34.9 (S1:120mm, S2-S3:150mm, S4-S5: 185mm, S6:213mm) |
| Saddle | Bridge, 155/143mm, Hollow Ti-rails |
| Chainset | SRAM X0 Eagle Crankset, Alloy, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm, 32T |
| Bottom Bracket | SRAM DUB, BSA 73mm Wide, Threaded |
| Chain | SRAM X0 Eagle Transmission Flattop Chain |
| Cassette | SRAM X0 Eagle Transmission Cassette, 12spd, 10-52t |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Specialized Stumpjumper Pro T-Type Mountain Bike 2023 - Trail Full Suspension MTB.
This product is no longer available.
