(no reviews)Product ID: 257811

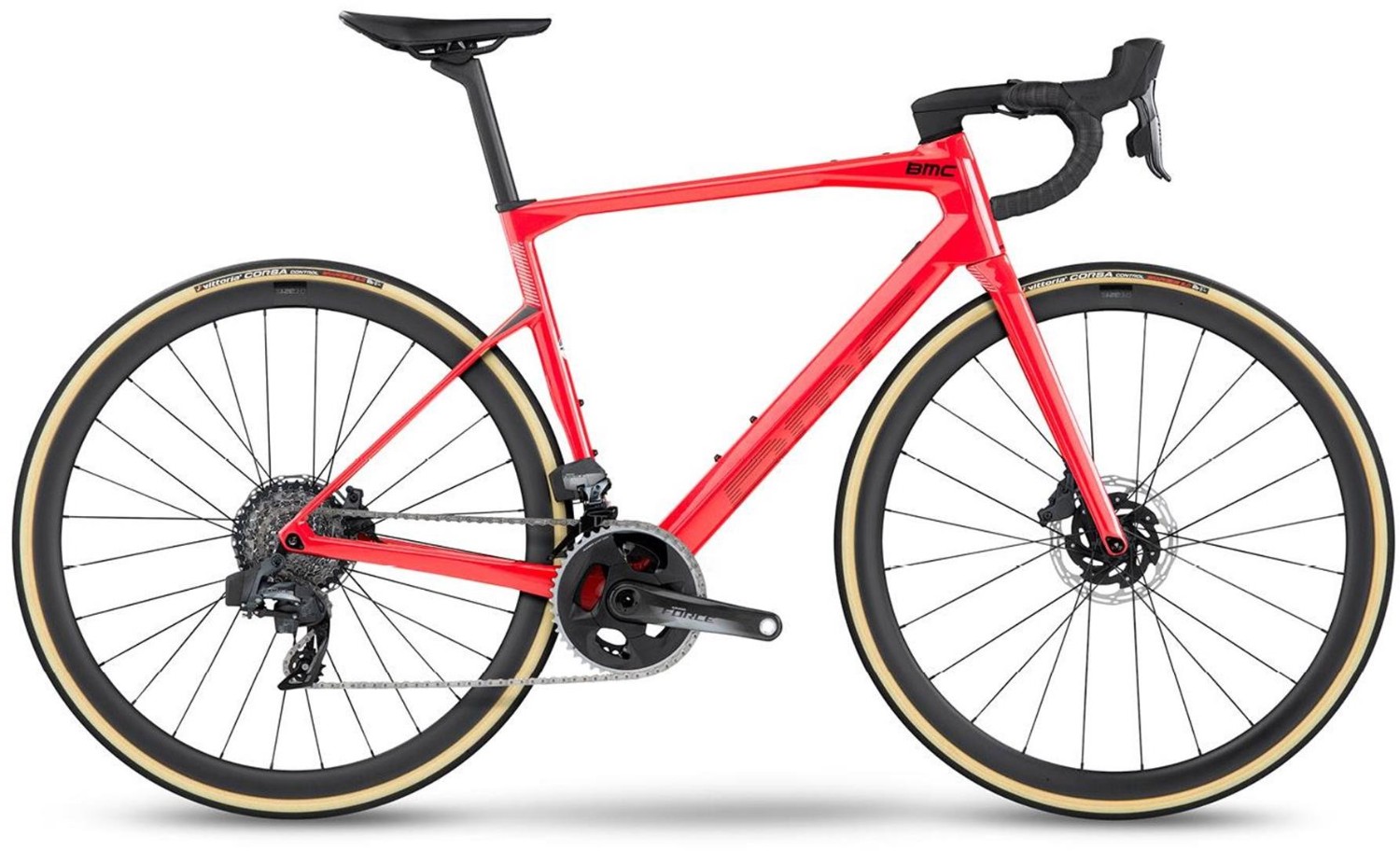

BMC Roadmachine 01 FOUR Force AXS HRD 2023 - Road Bike
The extraordinarily capable Roadmachine 01 combines relentless speed with indulgent comfort, so you can go further, faster. Its Premium Carbon frame and fork were designed using TCC Endurance technology, and feature ICS technology, Stealth Cable Routing and a Premium Carbon D-Shape seatpost. This model’s SRAM Force eTap AXS 12-speed groupset is very low geared for steep climbs, with 35mm CRD-321 tubeless ready wheels for reliable efficiency, and an ICS2 stem with aluminium bar for control.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance. ICS Technology Stealth Cable Routing. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle |
| Fork | Teammachine SLR Carbon. TCC Race Compliance Level. Internal Cable Routing. Flat Mount Disc. Stealth Dropout Design. 12x100mm Thru-Axle |
| Stem | BMC ICS2 - Integrated Cockpit Design |
| Bars | BMC RAB 02 - Ergo Top Shape - Compact Bend |
| Front Brake | SRAM FORCE eTap AXS HRD - Centerline X Rotors 160mm |
| Rear Brake | SRAM FORCE eTap AXS HRD - Centerline X Rotors 160mm |
| Brake Lever | SRAM FORCE eTap AXS HRD |
| Front Mech | SRAM Force eTap AXS |
| Rear Mech | SRAM Force eTap AXS |
| Shifters | SRAM FORCE eTap AXS HRD |
| Speed | 2x12 |
| Rims | CRD-321 SL Carbon - Tubeless Ready - 35mm |
| Front Hub | CRD-321 SL |
| Rear Hub | CRD-321 SL |
| Front Tyre | Vittoria Corsa N.EXT - 28mm |
| Rear Tyre | Vittoria Corsa N.EXT - 28mm |
| Seat Post | Roadmachine 01 Premium Carbon D-Shaped Seatpost |
| Saddle | Fizik Argo Tempo R5 (150mm) |
| Chainset | SRAM FORCE AXS 46-33T |
| Bottom Bracket | PF86 |
| Chain | SRAM FORCE 12 SPEED |
| Cassette | SRAM FORCE XG-1270 10-36T |
| Pedals | Resin Platform |
BMC Roadmachine 2023 Size Chart
| Size | Height (cm) | Height (Inches) |
| 47 | < 166 | < 5'5 |
| 51 | 166 - 174 | 5'5 - 5'8 |
| 54 | 172 - 180 | 5'8 - 5'11 |
| 56 | 178 - 186 | 5'10 - 6'1 |
| 58 | 184 - 192 | 6'0 - 6'3 |
| 61 | >190 | > 6'3 |
BMC Roadmachine 2023 Geometry
| SIZE | 47 | 51 | 54 | 56 | 58 | 61 |
| Top Tube MM (tt) | 522 | 532 | 546 | 556 | 568 | 583 |
| Wheelbase MM (wb) | 982 | 999 | 997 | 1008 | 1020 | 1035 |
| Seat Angle (sa) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seatpost Length MM | 330 | 380 | 380 | 380 | 380 | 430 |
| Stack MM | 516 | 541 | 562 | 586 | 610 | 644 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Reach MM (reach) | 374 | 382 | 386 | 390 | 394 | 398 |
| Head Tube MM (ht) | 112 | 139 | 156 | 181 | 206 | 242 |
| Head Angle (ha) | 71.2 | 71.2 | 72 | 72 | 72 | 72 |
| BB Drop MM (drop) | 71 | 71 | 71 | 71 | 71 | 71 |
| Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
| Seat Tube MM (st) | 420 | 457 | 500 | 522 | 539 | 573 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Post Offset MM | 15 | 15 | 15 | 15 | 15 | 15 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Rake MM (fr) | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center MM (fc) | 583 | 599 | 597 | 609 | 621 | 635 |
| Fork Length MM (fl) | 375 | 375 | 375 | 375 | 375 | 375 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
What size frame do I need if I am between sizes? - read here
