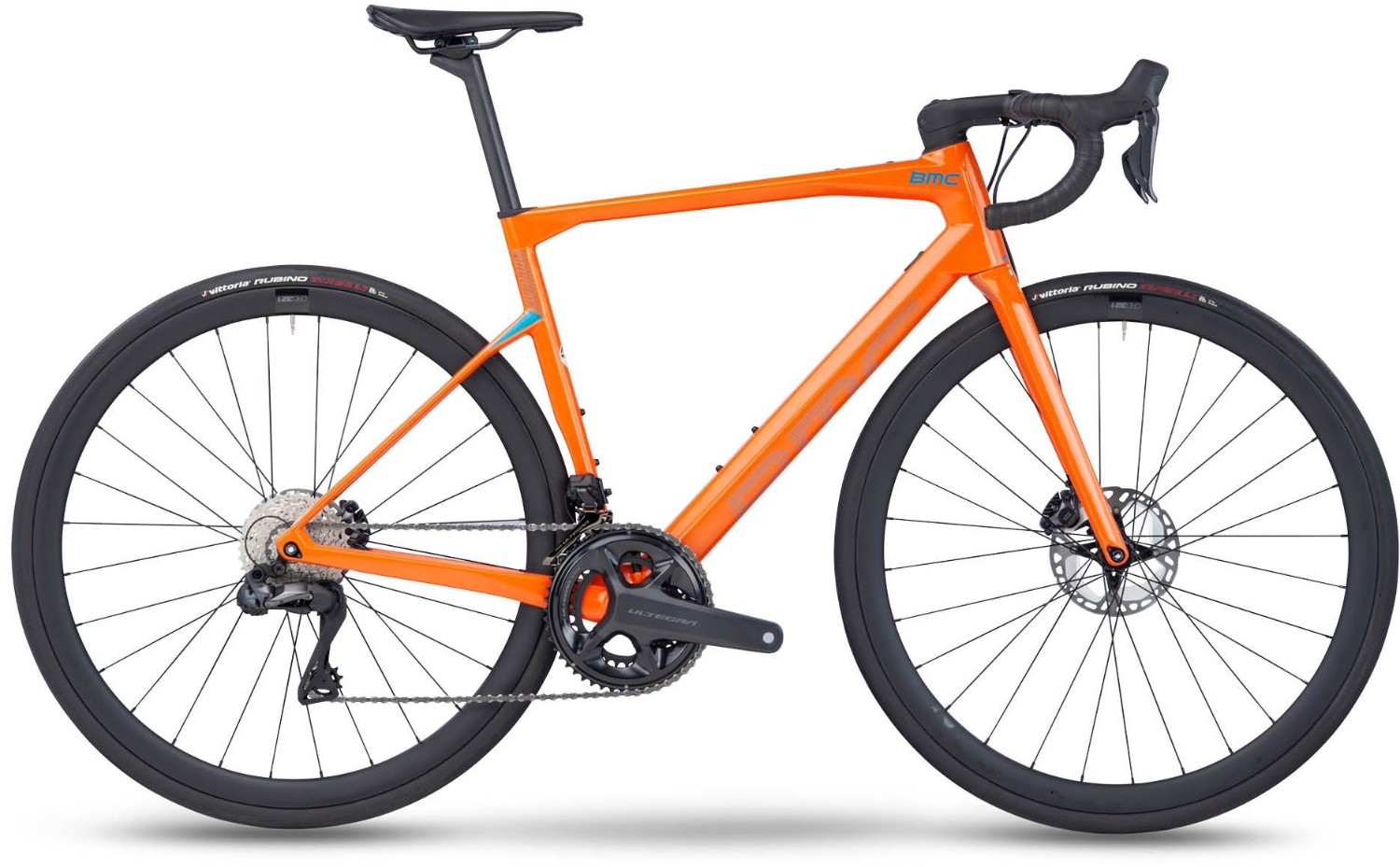

BMC Roadmachine ONE Ultegra Di2 2023 - Road Bike
The BMC Roadmachine 01 combines relentless speed with indulgent comfort, so you can go further and faster. Its Premium Carbon frame and fork were designed using TCC Endurance technology, and feature ICS technology, Stealth Cable Routing and a Premium Carbon D-Shape seatpost. From its premium carbon frame, to its Ultegra Di2 12-speed electronic groupset, and superb crd carbon wheelset with 28mm tires, this bike is a supreme endurance machine.
Key features:
- Roadmachine 01 Premium Carbon delivers additional compliance for a comfortable ride
- Teammachine SLR Carbon fork offers confident handling
- Shimano Ultegra Di2 drivetrain ensures consistent and reliable shifting
- Shimano Ultegra Hydraulic disc brakes offer all-weather braking performance
- Colours: Apricot/Petrol Blue
- Sizes: X Small (47cm), Small (51cm), Medium (54cm), Large (56cm), X Large (58cm), XX Large (61cm)
- The BMC Roadmachine ONE Ultegra Di2 is available with 0% APR finance
Tuned compliance concept (TCC) endurance
The most capable version of our TCC technology: take the edge off the roughest roads to push harder and ride further. The ultimate balance between comfort and performance for a ride that is both forgiving and fast.
Integrated Cockpit System (ICS)
The aesthetic simplicity and innovative functionality of the Integrated cockpit is the epitome of Swiss engineering and design. ICS keeps shifter wires and brake lines in their place - out of sight.
D-Shaped seat post
The new D-shaped compliance seat post’s carbon layup was designed using TCC endurance technology for tailored comfort.
Integrated seat clamp
The seamless and functional integrated seatpost clamp is hidden within the frame.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Roadmachine Premium Carbon with Tuned Compliance Concept Endurance. Internal Cable Routing. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle |
| Fork | Roadmachine Premium Carbon with Tuned Compliance Concept Endurance. Internal Cable Routing. Flat Mount Disc. 12x100mm Thru-Axle |
| Stem | BMC ICS1 |
| Bars | BMC RAB 02 - Ergo Top Shape - Compact Bend |
| Front Brake | SHIMANO Ultegra - RT-MT800 Rotors 160mm |
| Rear Brake | SHIMANO Ultegra - RT-MT800 Rotors 140mm |
| Brake Lever | Shimano Ultegra |
| Front Mech | SHIMANO Ultegra Di2 12spd |
| Rear Mech | SHIMANO Ultegra Di2 12spd |
| Shifters | SHIMANO Ultegra Di2 12spd |
| Speed | 2x12 |
| Rims | CRD-321 Carbon - Tubeless Ready - 35mm |
| Front Hub | CRD-321 |
| Rear Hub | CRD-321 |
| Front Tyre | VITTORIA RUBINO - 28mm |
| Rear Tyre | VITTORIA RUBINO - 28mm |
| Seat Post | Roadmachine Premium Carbon D-Shaped Seatpost |
| Saddle | Fizik Taiga |
| Chainset | SHIMANO Ultegra 12spd 50-34T |
| Bottom Bracket | PF86 |
| Chain | SHIMANO Ultegra 12spd |
| Cassette | SHIMANO Ultegra 12spd 11-34T |
| Pedals | Resin Platform |
BMC Roadmachine 2023 Size Chart
| Size | Height (cm) | Height (Inches) |
| 47 | < 166 | < 5'5 |
| 51 | 166 - 174 | 5'5 - 5'8 |
| 54 | 172 - 180 | 5'8 - 5'11 |
| 56 | 178 - 186 | 5'10 - 6'1 |
| 58 | 184 - 192 | 6'0 - 6'3 |
| 61 | >190 | > 6'3 |
BMC Roadmachine 2023 Geometry
| SIZE | 47 | 51 | 54 | 56 | 58 | 61 |
| Top Tube MM (tt) | 522 | 532 | 546 | 556 | 568 | 583 |
| Wheelbase MM (wb) | 982 | 999 | 997 | 1008 | 1020 | 1035 |
| Seat Angle (sa) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seatpost Length MM | 330 | 380 | 380 | 380 | 380 | 430 |
| Stack MM | 516 | 541 | 562 | 586 | 610 | 644 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Reach MM (reach) | 374 | 382 | 386 | 390 | 394 | 398 |
| Head Tube MM (ht) | 112 | 139 | 156 | 181 | 206 | 242 |
| Head Angle (ha) | 71.2 | 71.2 | 72 | 72 | 72 | 72 |
| BB Drop MM (drop) | 71 | 71 | 71 | 71 | 71 | 71 |
| Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
| Seat Tube MM (st) | 420 | 457 | 500 | 522 | 539 | 573 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Post Offset MM | 15 | 15 | 15 | 15 | 15 | 15 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Rake MM (fr) | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center MM (fc) | 583 | 599 | 597 | 609 | 621 | 635 |
| Fork Length MM (fl) | 375 | 375 | 375 | 375 | 375 | 375 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
