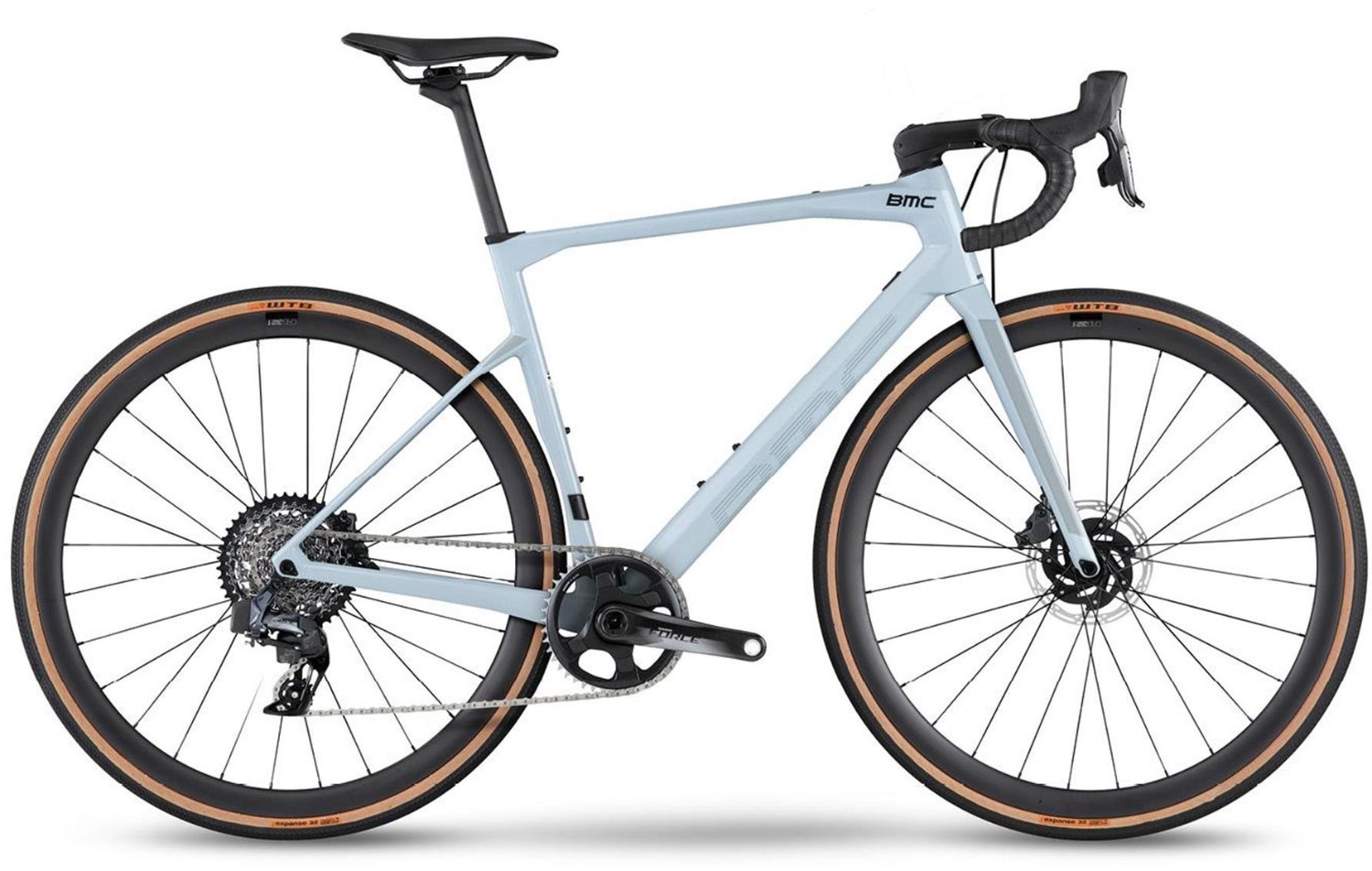

BMC Roadmachine X ONE Force AXS XPLR 2023 - Road Bike

Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Roadmachine X Premium Carbon with Tuned Compliance Concept Endurance. Internal Cable Routing. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle |
| Fork | Roadmachine X Premium Carbon with Tuned Compliance Concept Endurance. Internal Cable Routing. Flat Mount Disc. 12x100mm Thru-Axle |
| Stem | ICS MTT x Redshift Suspension Stem - Integrated Cockpit Design |
| Bars | BMC RAB 02 - Ergo Top Shape - Compact Bend |
| Front Brake | SRAM FORCE eTap AXS HRD - Centerline X Rotors 160mm |
| Rear Brake | SRAM FORCE eTap AXS HRD - Centerline X Rotors 160mm |
| Brake Lever | SRAM FORCE eTap AXS HRD |
| Rear Mech | SRAM FORCE XPLR eTap AXS |
| Shifters | SRAM FORCE eTap AXS HRD |
| Speed | 1x12 |
| Rims | CRD-321 Carbon - Tubeless Ready - 35mm |
| Front Hub | CRD-321 |
| Rear Hub | CRD-321 |
| Front Tyre | WTB Expanse - 32mm |
| Rear Tyre | WTB Expanse - 32mm |
| Seat Post | Roadmachine X Premium Carbon D-Shaped Seatpost |
| Saddle | Fizik Terra Argo X3 |
| Chainset | SRAM FORCE AXS 1 44T |
| Bottom Bracket | PF86 |
| Chain | SRAM FORCE 12 SPEED |
| Cassette | SRAM FORCE AXS XPLR XG-1271. 10-44T |
| Pedals | Resin Platform |
Roadmachine X Sizing
|
Size |
47 |
51 |
54 |
56 |
58 |
61 |
|
Rider height (cm) |
<166 |
166-174 |
172-180 |
178-186 |
184-192 |
>190 |
|
Stack (mm) |
525 |
550 |
571 |
585 |
604 |
628 |
|
Reach (mm) |
376 |
376 |
385 |
391 |
400 |
408 |
|
Seat tube length (mm) |
465 |
490 |
533 |
548 |
564 |
600 |
|
Top tube length (mm) |
532 |
539 |
554 |
564 |
579 |
594 |
|
Head tube length (mm) |
128 |
154 |
172 |
187 |
205 |
228 |
|
Seat angle |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
|
Head angle |
70.5 |
70.5 |
71.5 |
71.5 |
72 |
72.5 |
|
Rear centre (mm) |
420 |
420 |
420 |
420 |
420 |
420 |
|
Front centre (mm) |
589 |
598 |
607 |
615 |
625 |
640 |
|
Wheelbase (mm) |
998 |
1007 |
1016 |
1024 |
1034 |
1044 |
|
BB Drop (mm) |
71 |
71 |
71 |
71 |
71 |
71 |
|
Fork length (mm) |
369 |
369 |
369 |
369 |
639 |
369 |
|
Fork rake (mm) |
45 |
45 |
45 |
45 |
45 |
45 |
|
Trail (mm) |
73 |
73 |
66 |
66 |
63 |
60 |
|
Crank length (mm) |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
|
Stem length (mm) |
90 |
90 |
100 |
100 |
110 |
110 |
|
Stem angle |
8 |
8 |
8 |
8 |
8 |
8 |
|
Bar width (mm) |
400 |
420 |
420 |
420 |
440 |
440 |
|
Bar drop (mm) |
125 |
125 |
125 |
125 |
125 |
125 |
|
Bar reach (mm) |
70 |
70 |
70 |
70 |
70 |
70 |
|
Seatpost length (mm) |
250 |
250 |
310 |
310 |
310 |
310 |
|
Seatpost offset (mm) |
15 |
15 |
15 |
15 |
15 |
15 |
|
Standover height (mm) |
717 |
757 |
786 |
803 |
820 |
849 |
