(no reviews)Product ID: 257788

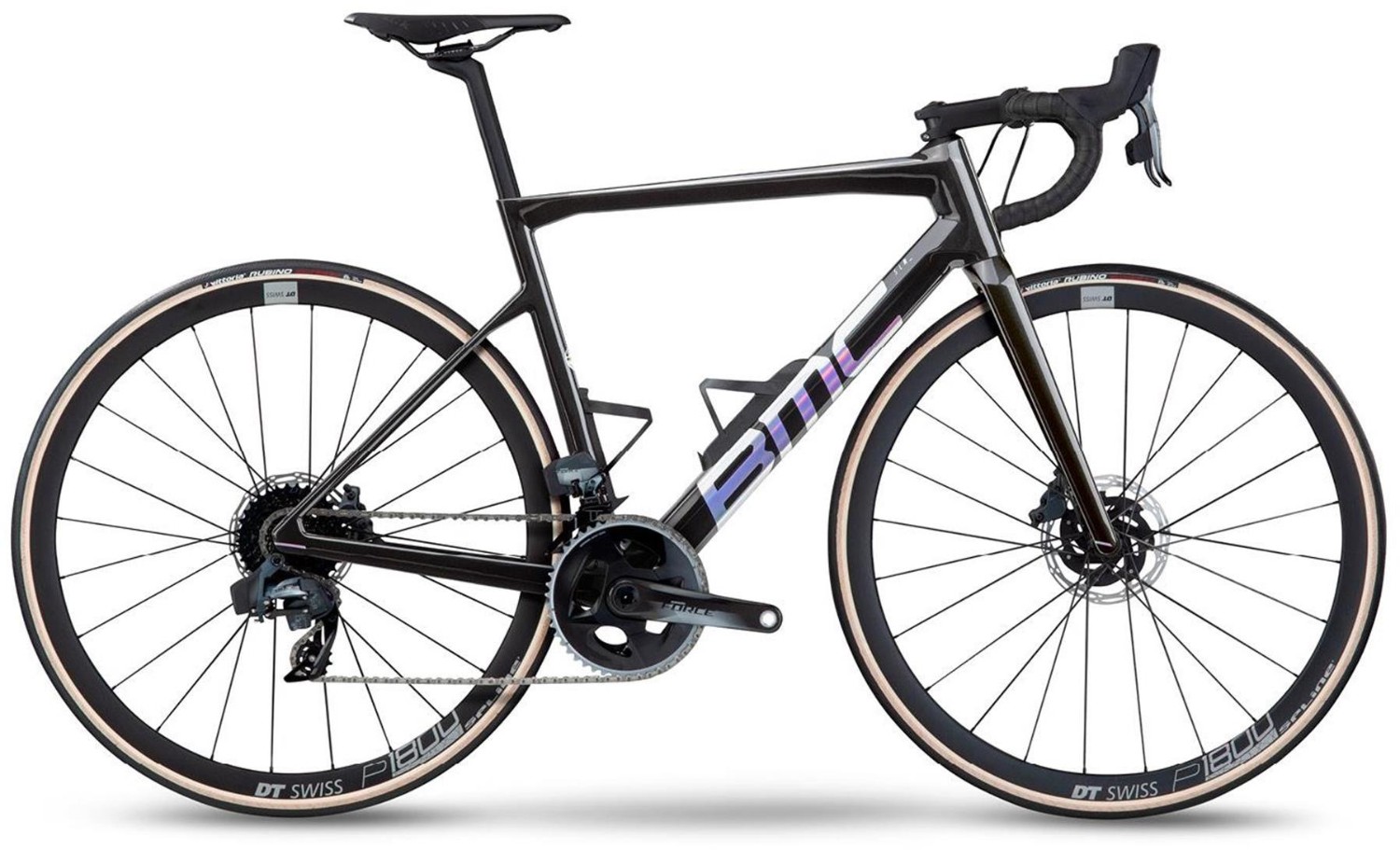

BMC Teammachine SLR TWO Force AXS HRD 2023 - Road Bike
The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. Enjoy the cleaner lines of SRAM’s Force eTap AXS wireless groupset when paired with the Teammachine SLR TWO’s conventional bar and stem, and spin freely on DT Swiss P1800 Disc wheels.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Teammachine SLR Carbon with Aerocore Design. Stealth Dropout Design. TCC Race Compliance Level. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle. Optimized for Aerocore Bottle Cages |
| Fork | Teammachine SLR Carbon. TCC Race Compliance Level. Internal Cable Routing. Flat Mount Disc. Stealth Dropout Design. 12x100mm Thru-Axle |
| Stem | BMC RSM01 |
| Bars | BMC RAB 02 - Ergo Top Shape - Compact Bend |
| Front Brake | SRAM FORCE eTap AXS HRD - Centerline XR Rotors 160mm |
| Rear Brake | SRAM FORCE eTap AXS HRD - Centerline XR Rotors 160mm |
| Brake Lever | SRAM FORCE eTap AXS HRD |
| Front Mech | SRAM Force eTap AXS |
| Rear Mech | SRAM Force eTap AXS |
| Shifters | SRAM FORCE eTap AXS HRD |
| Speed | 2x12 |
| Rims | DT SWISS P1800 Disc - 32mm |
| Front Hub | DT Swiss 370 Spline Disc |
| Rear Hub | DT Swiss 370 Spline Disc |
| Front Tyre | Vittoria Rubino - 25mm |
| Rear Tyre | Vittoria Rubino - 25mm |
| Seat Post | Teammachine SLR Carbon D-Shaped Seatpost |
| Saddle | Fizik Antares R7 |
| Chainset | SRAM FORCE AXS 48-35T |
| Bottom Bracket | PF86 |
| Chain | SRAM FORCE 12 SPEED |
| Cassette | SRAM FORCE XG-1270 10-33T |
| Pedals | Resin Platform |
BMC Teammachine SLR 2023 Size Chart
| Size | Height (cm) | Height (Inches) |
| 47 | >166 | > 5'5 |
| 51 | 166 - 174 | 5'5 - 5'9 |
| 54 | 172 - 180 | 5'8 - 5'11 |
| 56 | 178 - 186 | 5'10 - 6'1 |
| 58 | 184 - 192 | 6'0 - 6'4 |
| 61 | > 190 | > 6'3 |
BMC Teammachine SLR 2023 Geometry
| SIZE | 47 | 51 | 54 | 56 | 58 | 61 |
| Top Tube MM (tt) | 517 | 534 | 549 | 559 | 574 | 589 |
| Wheelbase MM (wb) | 968 | 986 | 989 | 1000 | 1015 | 1030 |
| Seat Angle (sa) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seatpost Length MM | 330 | 380 | N/A | 380 | 380 | 380 |
| Stack MM | 506 | 530 | 550 | 565 | 584 | 608 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Reach MM (reach) | 367 | 377 | 386 | 392 | 401 | 409 |
| Head Tube MM (ht) | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Angle (ha) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.5 |
| BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
| Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
| Seat Tube MM (st) | 423 | 468 | 504 | 524 | 545 | 574 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Post Offset MM | 15 | 15 | 380 | 15 | 15 | 15 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Rake MM (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center MM (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
| Fork Length MM (fl) | 368 | 368 | 368 | 368 | 368 | 368 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the BMC Teammachine SLR TWO Force AXS HRD 2023 - Road Bike.
This product is no longer available.
