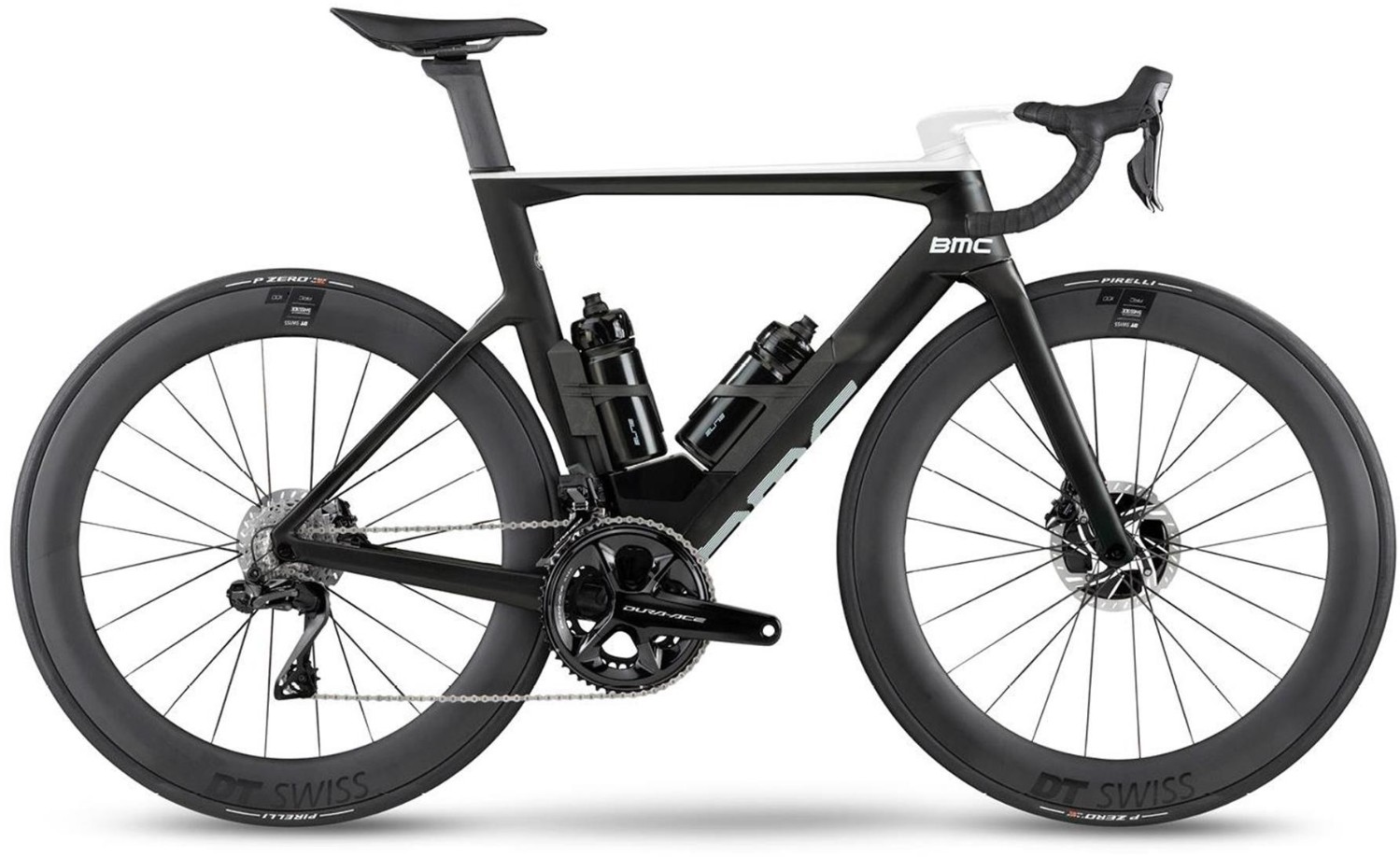

BMC Timemachine 01 ROAD ONE Dura Ace Di2 2023 - Road Bike

Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Timemachine Road 01 Premium Carbon with Aero Module Tuned Compliance Concept Speed. ICS Aero Technology Stealth Cable Routing. PF86 Bottom Bracket. Flat Mount Disc. 12x142mm Thru-Axle |
| Fork | Timemachine Road 01 Premium Carbon with Integrated Aero Cover Tuned Compliance Concept Speed. ICS Technology Stealth Cable Routing. Flat Mount Disc. 12x100mm Thru-Axle |
| Stem | ICS Carbon Aero - One-Piece Full Carbon Cockpit |
| Bars | ICS Carbon Aero - One-Piece Full Carbon Cockpit |
| Front Brake | SHIMANO Dura Ace - RT-MT900 Rotors 160mm |
| Rear Brake | SHIMANO Dura Ace - RT-MT900 Rotors 140mm |
| Brake Lever | SHIMANO Dura Ace |
| Front Mech | SHIMANO Dura Ace Di2 12spd |
| Rear Mech | SHIMANO Dura Ace Di2 12spd |
| Shifters | SHIMANO Dura Ace Di2 12spd |
| Speed | 2x12 |
| Rims | DT Swiss ARC 1100 62mm |
| Front Hub | DT Swiss 180 Straightpull - Ratchet EXP 36 - SINC Ceramic Bearings |
| Rear Hub | DT Swiss 180 Straightpull - Ratchet EXP 36 - SINC Ceramic Bearings |
| Front Tyre | Pirelli P ZERO RACE TLR SL - 26mm |
| Rear Tyre | Pirelli P ZERO RACE TLR SL - 26mm |
| Seat Post | Timemachine Road 01 Premium Carbon Aero Seatpost. 0, 15, 30mm Adjustable Offset |
| Saddle | Fizik Argo Vento R1 (140mm) |
| Chainset | SHIMANO Dura Ace 12spd 52-36T |
| Bottom Bracket | PF86 |
| Chain | SHIMANO Dura Ace 12spd |
| Cassette | SHIMANO Dura Ace 12spd 11-30T |
| Pedals | Resin Platform |
Timemachine 01 Road Sizing
|
size |
47 |
51 |
54 |
56 |
58 |
61 |
|
rider height |
<166 |
166-174 |
172-180 |
178-186 |
184-192 |
>190 |
|
stack mm |
496 |
520 |
540 |
555 |
574 |
598 |
|
reach mm |
373 |
381 |
390 |
395 |
405 |
413 |
|
seat tube st mm |
480 |
518 |
548 |
568 |
588 |
611 |
|
top tube tt‘ mm |
520 |
535 |
550 |
560 |
575 |
590 |
|
head tube ht mm |
71.2 |
71.2 |
72 |
72 |
72 |
72 |
|
seat angle sa ° |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
|
head angle ha ° |
71.2 |
71.2 |
72 |
72 |
72 |
72 |
|
rear center rc mm |
410 |
410 |
410 |
410 |
410 |
410 |
|
front center fc mm |
577 |
592 |
594 |
604 |
620 |
636 |
|
wheelbase wb mm |
975 |
991 |
994 |
1004 |
1020 |
1036 |
|
bb drop mm |
70 |
70 |
70 |
70 |
70 |
70 |
|
fork length fl mm |
379 |
379 |
374 |
374 |
374 |
374 |
|
fork rake fr mm |
50 |
50 |
45 |
45 |
45 |
45 |
|
trail mm |
62 |
62 |
62 |
62 |
62 |
62 |
|
crank length mm |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
|
stem length mm |
100 |
100 |
110 |
110 |
120 |
120 |
|
stem angle ° |
-15 |
-15 |
-15 |
-15 |
-15 |
-15 |
|
bar width mm |
400 |
400 |
420 |
420 |
440 |
440 |
|
bar drop mm |
122 |
122 |
122 |
122 |
122 |
122 |
|
bar reach mm |
66 |
66 |
66 |
66 |
66 |
66 |
|
post length mm |
210 |
210 |
270 |
270 |
270 |
270 |
|
post offset mm |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
0-15-30 |
|
standover height mm |
743 |
774 |
799 |
816 |
834 |
858 |
