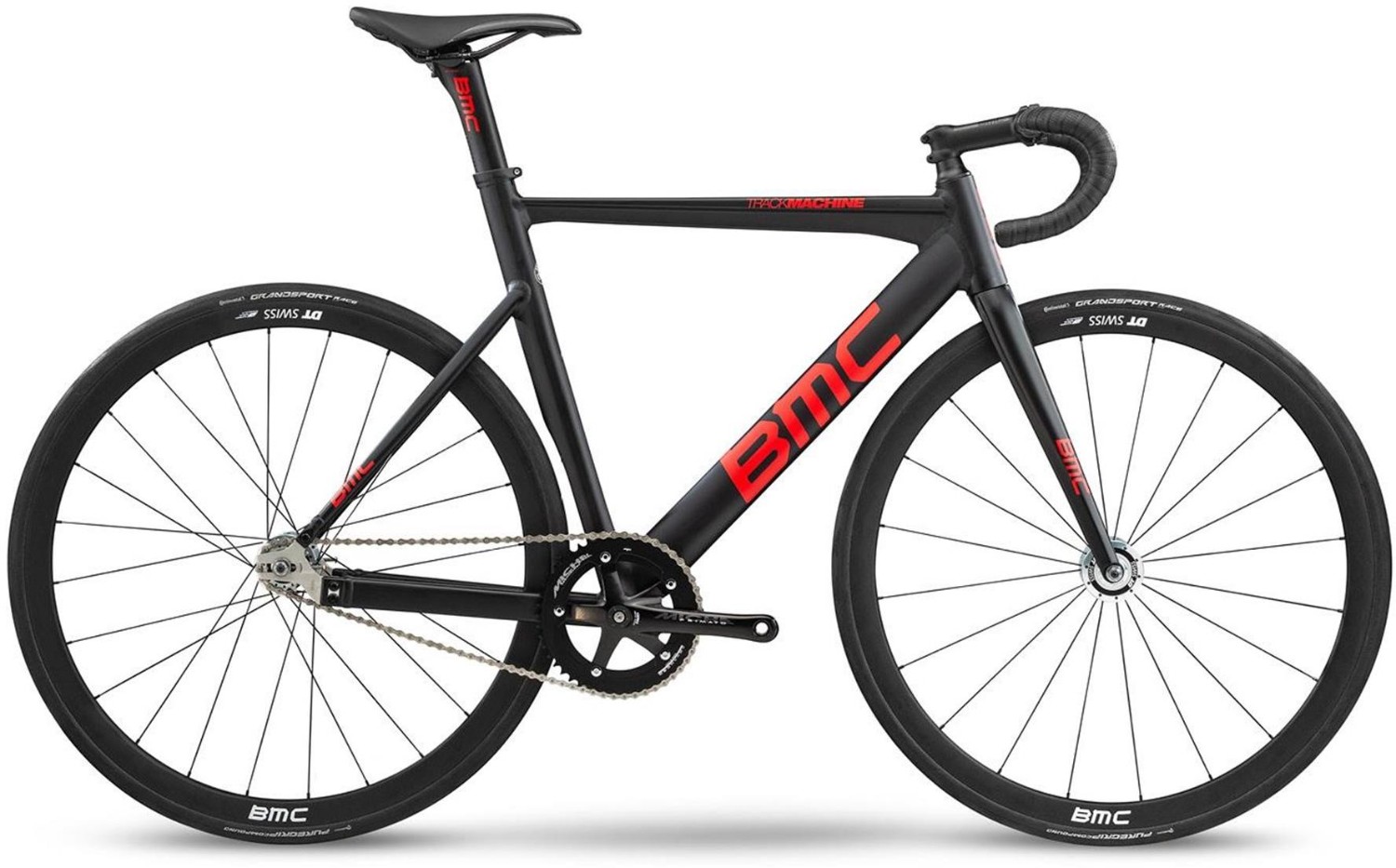

BMC Trackmachine AL ONE Miche 2023 - Road Bike

Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Trackmachine AL Premium Aluminium with Vmax Aero Design |
| Fork | Trackmachine Carbon subA Aero Technology |
| Stem | BMC RSM 03 |
| Bars | BMC RAB 03 - Ergo Top Shape - Compact Bend |
| Front Brake | NONE SUPPLIED |
| Rear Brake | NONE SUPPLIED |
| Brake Lever | NONE SUPPLIED |
| Rear Mech | N/A |
| Shifters | N/A |
| Speed | Single |
| Rims | DT Swiss |
| Front Hub | DT Swiss |
| Rear Hub | DT Swiss |
| Front Tyre | Continental Grand Sport Race SL - 23mm |
| Rear Tyre | Continental Grand Sport Race SL - 23mm |
| Seat Post | Trackmachine Carbon Airfoil Seatpost |
| Saddle | Velo |
| Chainset | MICHE Advanced Pista 48T |
| Chain | MICHE Pista 1/8" |
| Cassette | MICHE Pista Steel 15T |
| Pedals | Resin Platform |
BMC Trackmachine Sizing and Geometry
|
Size |
XS |
S |
M |
L |
|
Stack |
476 |
490 |
525 |
563 |
|
Reach |
387 |
395 |
402 |
413 |
|
Seat tube |
490 |
520 |
550 |
585 |
|
Top tube |
528 |
540 |
558 |
580 |
|
Head tube |
95 |
110 |
138 |
178 |
|
Seat angle |
73.5 |
73.5 |
73.5 |
73.5 |
|
Head angle |
73 |
73 |
73 |
73 |
|
Rear centre |
390-420 |
390-420 |
390-420 |
390-420 |
|
Front centre |
564 |
577 |
592 |
616 |
|
Wheelbase |
949 |
956 |
975 |
999 |
|
BB Drop |
50 |
50 |
58 |
58 |
|
Fork length |
364 |
364 |
364 |
364 |
|
Fork rake |
43 |
43 |
43 |
43 |
|
Trail |
58 |
58 |
58 |
58 |
|
Crank length |
165 |
165 |
170 |
170 |
|
Stem length |
90 |
100 |
110 |
120 |
|
Stem angle |
6 |
6 |
6 |
6 |
|
Bar width |
380 |
380 |
400 |
400 |
|
Bar drop |
125 |
125 |
125 |
125 |
|
Bar reach |
70 |
70 |
70 |
70 |
|
Post length |
320 |
320 |
320 |
320 |
|
Post offset |
15 |
15 |
15 |
15 |
|
Standover |
725 |
749 |
780 |
807 |
