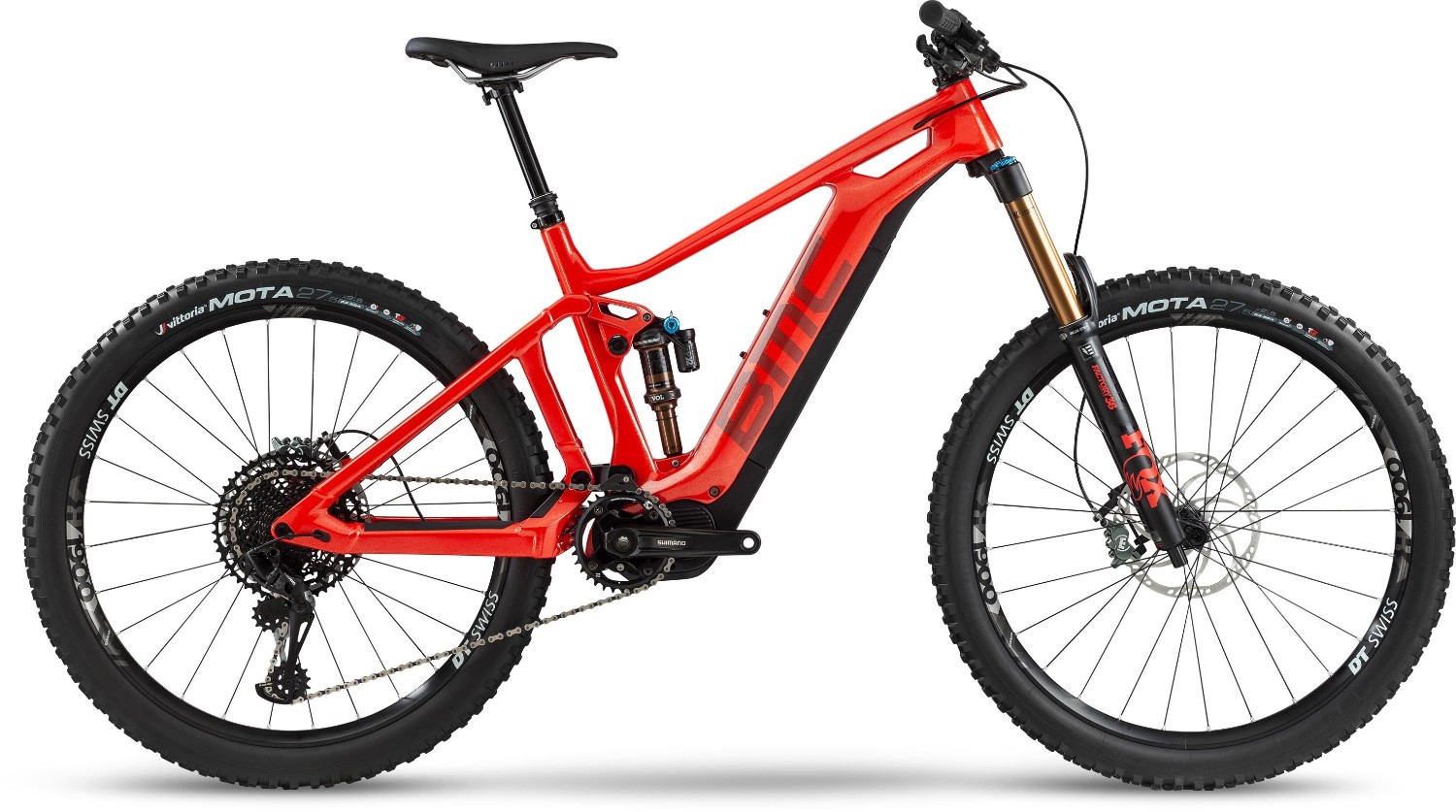

BMC Trailfox AMP SX One 27.5" 2020 - Electric Mountain Bike
It’s the first hot day of spring and David slams the shed door shut with a new optimism.
“Parenthood mixed with a career left me wanting,” David opens, pedalling in the direction of the woods. “Having to focus on family and work meant I was left with no time to ride. Sure, you can be selfish when you’re young. But when others rely on you, you need to make sacrifices. I figured that the buzz of a rapid descent would just be a souvenir from my youth, shelved until later in life when the kids move out.”
But after discovering the Trailfox AMP David could reassess: “You wouldn’t believe how much easier it is to steal back those free hours now. I can condense so much more into 60 minutes that it’s like I’ve been given more time. And the best thing is that I know I’m doing something good for everyone, rather than feeling selfish that I’m focusing on me and letting other priorities slide.” David adds, revealing a familiar glint of excitement that comes from energetically greeting his kids after an hour of fresh loamy turns.
E-specific Advanced Pivot System
An efficient, plush suspension system with an e-MTB tune that blends your power with that of the bike.
Twin Hollow-core Technology
Hides the battery pack in the downtube while supporting a stiff front triangle.
E-Specific Geo Concept
Adjusted to the needs of an e-mountainbiker, to provide the full all-mountain experience.
Shimano E-8000
A powerful drive unit made with mountain biking in mind. The Shimano E-8000 provides strong, yet sensitive engagement while maintaining true mountain bike geometry.
Integrated Speed Sensor
Hidden in the rearstay and disc for a clean look and accurate speed measurement.
650b+ wheels and tires
The ultimate wheel and tire combination for all-conditions traction, smooth rolling, and maximum control.
Occasionally, without notice, manufacturers change product design and/or specifications.
Trailfox AMP sizing
Size |
S |
M |
L |
Rider height (cm) |
<170 |
170 – 185 |
>180 |
Stack (mm) |
595 |
606 |
620 |
Reach (mm) |
405 |
445 |
469 |
Seat tube length (mm) |
400 |
440 |
480 |
Top tube length (mm) |
573 |
616 |
645 |
Head tube length (mm) |
91 |
103 |
118 |
Seat tube angle ° |
74 |
74 |
74 |
Head angle ° |
66 |
66 |
66 |
Rear centre (mm) |
445 |
445 |
445 |
Front centre (mm) |
715 |
760 |
791 |
Wheelbase (mm) |
1162 |
1207 |
1238 |
BB Drop (mm) |
17 |
17 |
17 |
Fork length (mm) |
561 |
561 |
561 |
Fork rake (mm) |
51 |
51 |
51 |
Trail (mm) |
103 |
103 |
103 |
Crank length (mm) |
170 |
170 |
170 |
Stem length (mm) |
50 |
50 |
50 |
Stem angle ° |
0 |
0 |
0 |
Bar width (mm) |
780 |
780 |
780 |
Bar rise (mm) |
20 |
20 |
20 |
Bar sweep ° |
9 |
9 |
9 |
Seatpost length (mm) |
125x375 |
150x440 |
150x440 |
Seatpost offset ° |
0 |
0 |
0 |
Standover (mm) |
745 |
730 |
771 |
