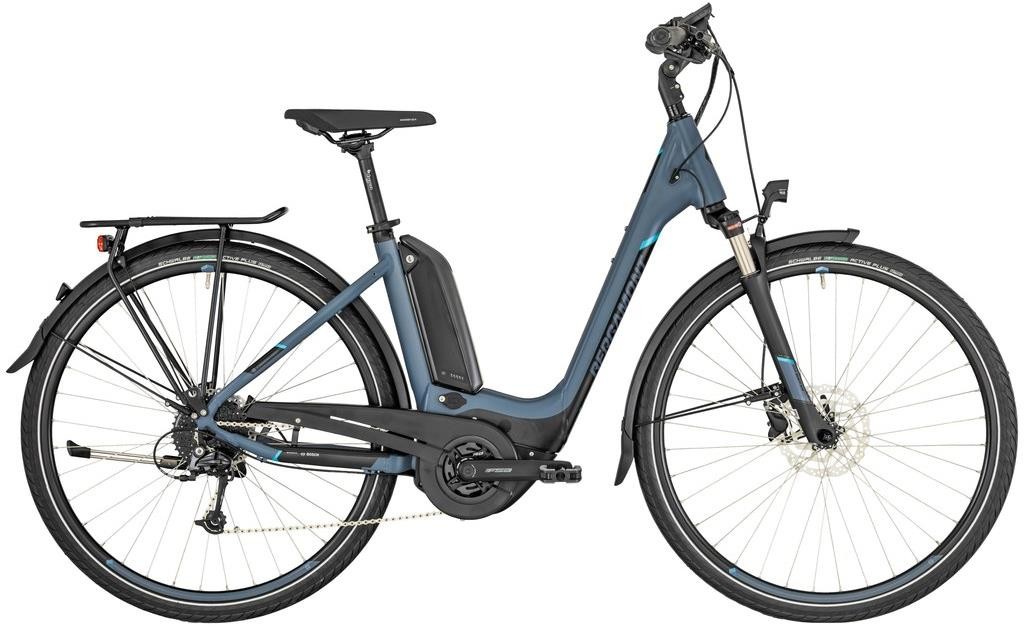

Bergamont E-Horizon 7 Wave 500 2019 - Electric Hybrid Bike
Key Features:
- Evolution of the Bergamont low-step through frame with the innovative Box Flange construction.
- Wide and low step-through
- Elegant appearance thanks to a seamless integration of the Bosch drive unit
- Smooth and quiet Bosch Active Line Plus Drive Unit
- High grade components with busch+müller lighting system, hydraulic Shimano disc brakes and Selle Royal saddle
- Sizes: 48cm, 52cm, 56cm
- Colour: Blue Grey/Black (Matte)
Drive Information:
- Motor: Bosch Drive Unit Active Line Plus
- Battery: Bosch 36 V Li Ion, 500 Wh
- User interface: Bosch Intuvia display & remote
- Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5km/h)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 28" E-bike, AL-6061 lite tubing, box flange II concept, hydro fluid forming, internal cable routing |
| Fork | Suntour NCX-D LO, 1 1/8", 63mm, lockout |
| Headset | FSA NO.57SC-1, A-Headset, semi-integrated, tapered |
| Stem | BGM E-Bike, adjustable |
| Bars | BGM Pro, riserbar, rise: 15mm |
| Front Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160mm |
| Brake Lever | Shimano BL-MT200, hydraulic disc brake |
| Front Mech | Shimano, centerlock, disc, quick release |
| Rear Mech | Shimano, centerlock, disc, quick release |
| Shifters | Shimano Deore, SL-M590, 1x9-speed, rapidfire plus-shifter |
| Speed | 9 |
| Rims | Mach1 ER-20, disc, eyelets |
| Front Hub | Shimano, centerlock, disc, quick release |
| Rear Hub | Shimano, centerlock, disc, quick release |
| Spokes | Sapim Leader |
| Front Tyre | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
| Rear Tyre | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
| Seat Post | BGM Pro |
| Saddle | Selle Royal Essenza lady |
| Chainset | Shimano CS-HG200-9, 11-36t |
| Bottom Bracket | Bosch |
| Chain | KMC X9eS EPT |
| Pedals | Trekking alloy |
| Battery Size (WH) | 500 Wh |
| Motor | Bosch |
| User Interface | Bosch Intuvia |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
