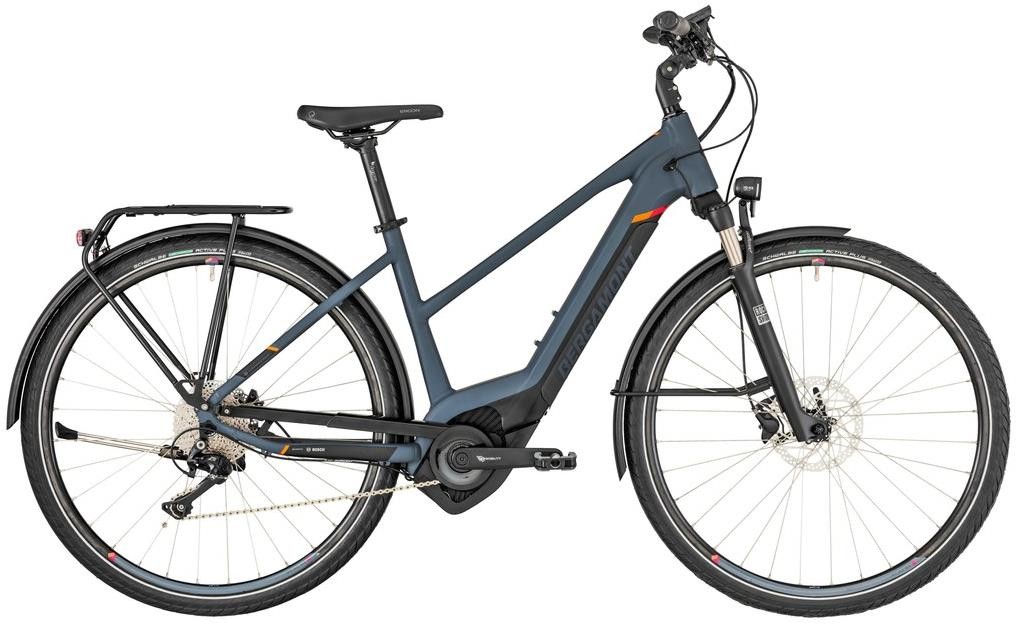

Bergamont E-Horizon Edition Womens 2019 - Electric Hybrid Bike
Key Features:
- E-Trekking all-rounder. Revolutionary Universal Chassis Concept with seamlessly integrated Bosch PowerTube battery.
- Maximum integration level of motor and Bosch PowerTube battery
- Dynamic Bosch Performance Drive Unit
- Reliable Shimano Deore shifting technology
- Uncompromising RockShox Paragon Silver suspension fork
- Ergonomically shaped grips, Ergon ST10 saddle
- Sizes: 44cm, 48cm, 52cm, 56cm
- Colour: Dark Grey/Black/Blue (Matte)
Drive Information:
- Motor: Bosch Drive Unit Performance Line
- Battery: Bosch 36 V Li Ion, 500 Wh
- User interface: Bosch Intuvia display & remote
- Assistance Modes: Eco (+50%), Tour (+120%), Sport (+190%), Turbo (+275%), Walk Assist (-5km/h)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 28" E-bike, AL-6061 ultra lite tubing, hydro fluid forming, internal cable routing, Powertube battery |
| Fork | Rock Shox Paragon Silver, 1 1/8", 63mm, lockout |
| Headset | FSA NO.57SC-1, A-Headset, semi-integrated, tapered |
| Stem | BGM Pro, adjustable, 17°-25° |
| Bars | BGM Pro, riserbar, rise: 15mm |
| Front Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/160mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/160mm |
| Brake Lever | Shimano BL-MT201, hydraulic disc brake |
| Front Mech | Shimano HB-MT200, centerlock, disc, quick release |
| Rear Mech | Shimano FH-MT200, centerlock, disc, quick release |
| Shifters | Shimano Deore, SL-T6000, 1x10-speed, rapidfire plus-shifter |
| Speed | 10 |
| Rims | Mach1 ER-20, disc, eyelets |
| Front Hub | Shimano HB-MT200, centerlock, disc, quick release |
| Rear Hub | Shimano FH-MT200, centerlock, disc, quick release |
| Spokes | Sapim Leader |
| Front Tyre | Schwalbe Energizer Addix Plus, reflective stripe, 47-622 |
| Rear Tyre | Schwalbe Energizer Addix Plus, reflective stripe, 47-622 |
| Seat Post | BGM Pro |
| Saddle | Ergon ST10 |
| Chainset | Shimano CS-HG50, 11-36T |
| Bottom Bracket | Bosch |
| Chain | KMC X10eS EPT |
| Pedals | Trekking alloy |
| Battery Size (WH) | 500 Wh |
| Motor | Bosch |
| User Interface | Bosch Intuvia |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Bergamont E-Horizon Edition Womens 2019 - Electric Hybrid Bike.
This product is no longer available.
