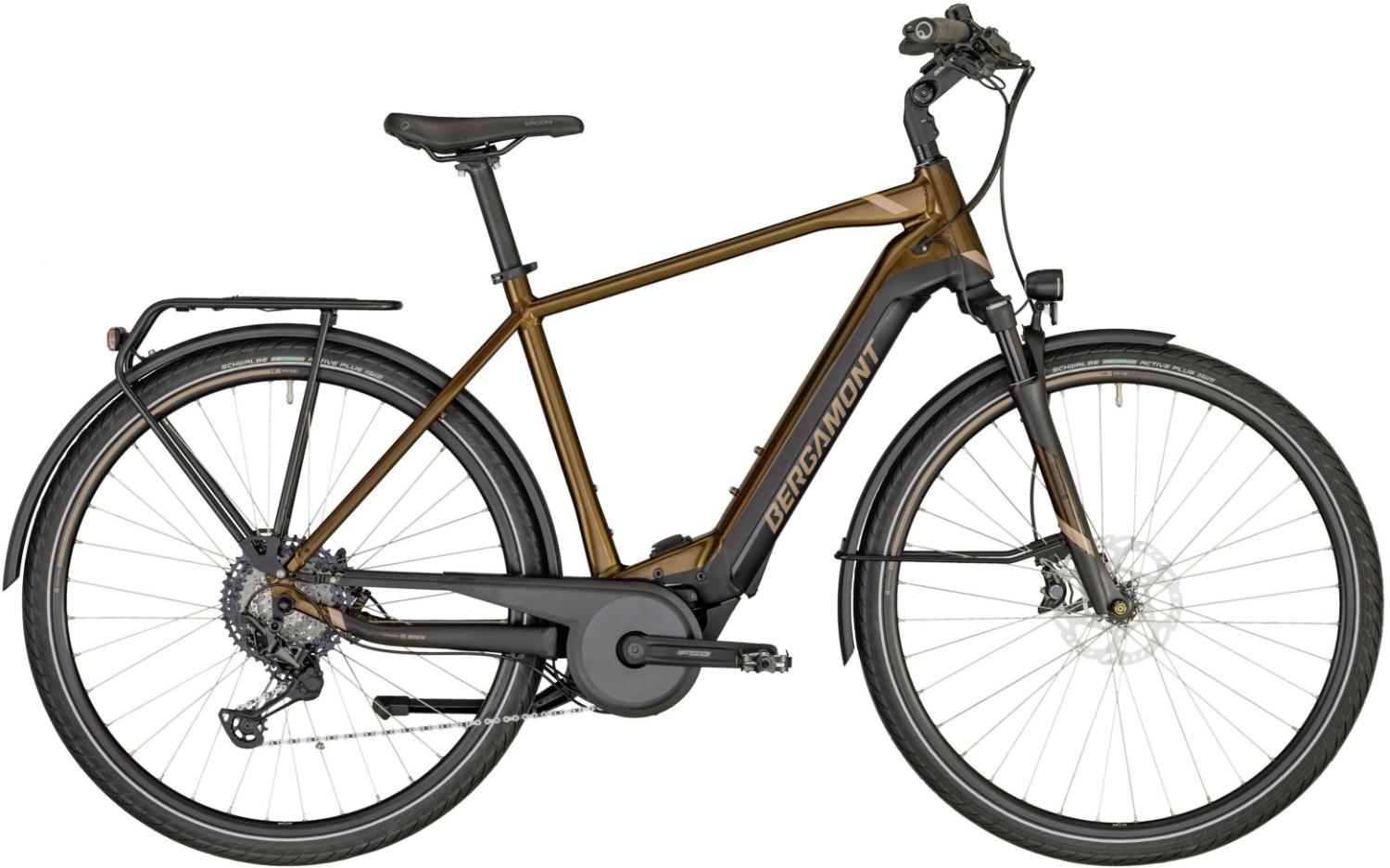

Bergamont E-Horizon Elite 2020 - Electric Road Bike
- E-Trekking all-rounder with maximum integration level of the latest generation Bosch drive unit and battery.
- Sportive and powerful 4th generation Bosch CX drive unit with 75 Nm torque
- Extended range with the new 625 Wh Bosch PowerTube battery
- Reliable Shimano XT 1x12 shifting technology
- Comfortable, reliable Suntour NCX-D suspension fork
- Compact, scratch-resistant and multifunctional Bosch Kiox Display
Frame | 28", ultra lite AL-6061 tubing, PowerTube battery |
Fork | Suntour NCX E Air, 63 mm, lockout |
Rear Derailleur | Shimano Deore XT, RD-M8100, Shadow Plus |
Shifter | Shimano Deore XT, SL-M8100, 1x12-speed, rapidfire plus-shifter |
Cassette | Shimano SLX, CS-M7100, 10-51t |
Chain | Shimano SLX, CN-M7100 |
Crankset | FSA CK-320, Shimano CRE80-12, 38t |
Bottom Bracket | Bosch, Isis |
Motor | Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h |
Battery | Bosch 36 V Li Ion, 625 Wh, PowerTube |
Display | Bosch Kiox |
Assistance Modes | Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h) |
Brake | Shimano Deore XT, BR-M8000, hydraulic disc brake, SM-RT70 rotor: 180/180 mm |
Brake Levers | Shimano Deore XT, BL-T8000, hydraulic disc brake |
Rims | Mach 1 ER20, disc, eyelets |
Front Hub | Shimano HB-MT400, centerlock, disc, 15x100 mm axle |
Rear Hub | Shimano FH-MT500, centerlock, disc, quick release |
Spokes | Sapim Leader |
Tires | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
Tubes | Schwalbe AV17A Light |
Headset | FSA NO.57SC-1, A-Headset, semi-integrated, tapered |
Handlebar | BGM Pro, riserbar, backsweep: 15°, rise: 5 mm |
Stem | BGM E-Bike, adjustable, for Kiox integration |
Grip | Ergon GP10 |
Saddle | Ergon ST10 |
Seatpost | BGM Pro |
Fender | Racktime Wingee |
Carrier | BGM / Racktime |
Chaincasecover | SKS Chainbow |
Front light | B&M IQ-XS, 70 Lux, LED, E-Bike Version |
Rear light | B&M Toplight 2 C, LED |
Stand | Syncros |
Pedals | Trekking alloy |
Approx. weight | 24,1 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
