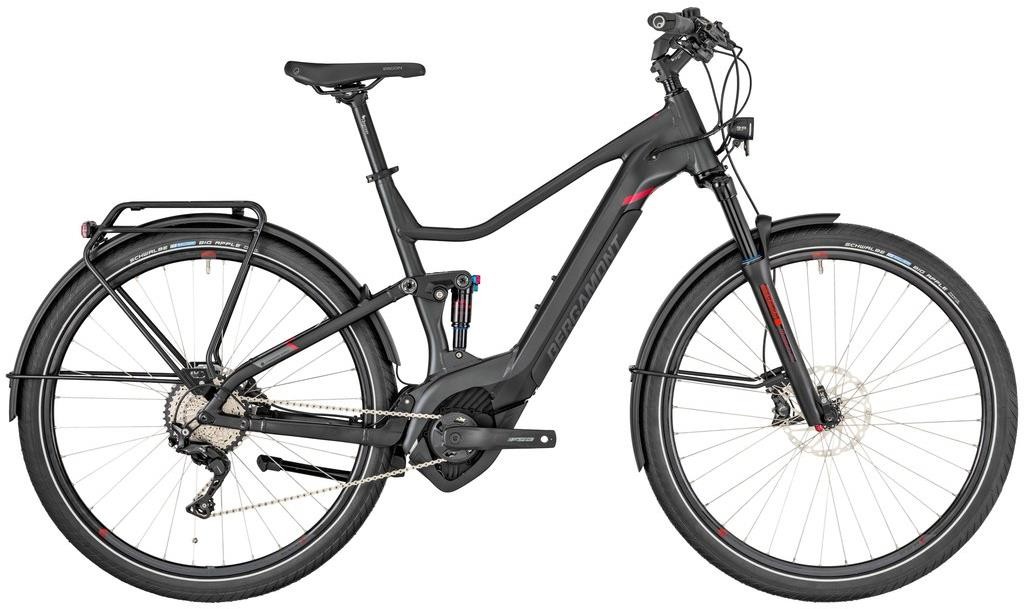

Bergamont E-Horizon FS Elite 2019 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 28" E-bike, 80mm rear travel, AL-6061 ultra lite tubing, hydro fluid forming, 4-link design, internal cable routing, Powertube battery |
| Fork | Suntour Mobie 25 Air, RLR DS, 100mm |
| Rear Shock | Suntour UNAir LO R8, 80mm |
| Headset | FSA NO.57SC-1, A-Headset, semi-integrated, tapered |
| Stem | BGM Pro, adjustable, 17°-25° |
| Bars | BGM Pro, riserbar, rise: 15mm |
| Front Brake | Shimano Deore XT, BR-M8000, hydraulic disc brake, SM-RT64 rotor: 180/180mm |
| Rear Brake | Shimano Deore XT, BR-M8000, hydraulic disc brake, SM-RT64 rotor: 180/180mm |
| Brake Lever | Shimano Deore XT, BL-T8000, hydraulic disc brake |
| Front Mech | Shimano Deore XT, HB-M8010, centerlock, disc, 15x100mm axle |
| Rear Mech | Shimano Deore XT, FH-M8010, centerlock, disc, 12x148mm axle |
| Shifters | Shimano SLX, SL-M7000, 1x11-speed, rapidfire plus-shifter |
| Speed | 11 |
| Rims | Mach1 ER-20, disc, eyelets |
| Front Hub | Shimano Deore XT, HB-M8010, centerlock, disc, 15x100mm axle |
| Rear Hub | Shimano Deore XT, FH-M8010, centerlock, disc, 12x148mm axle |
| Spokes | Sapim Leader |
| Front Tyre | Schwalbe Energizer Addix Plus, reflective stripe, 47-622 |
| Rear Tyre | Schwalbe Energizer Addix Plus, reflective stripe, 47-622 |
| Seat Post | BGM Pro |
| Saddle | Ergon ST10 |
| Chainset | Shimano SLX, CS-M7000, 11-42t |
| Bottom Bracket | Bosch |
| Chain | KMC E11 S EPT |
| Pedals | Wellgo C128 |
| Battery Size (WH) | 500 Wh |
| Motor | Bosch |
| User Interface | Bosch Kiox |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
