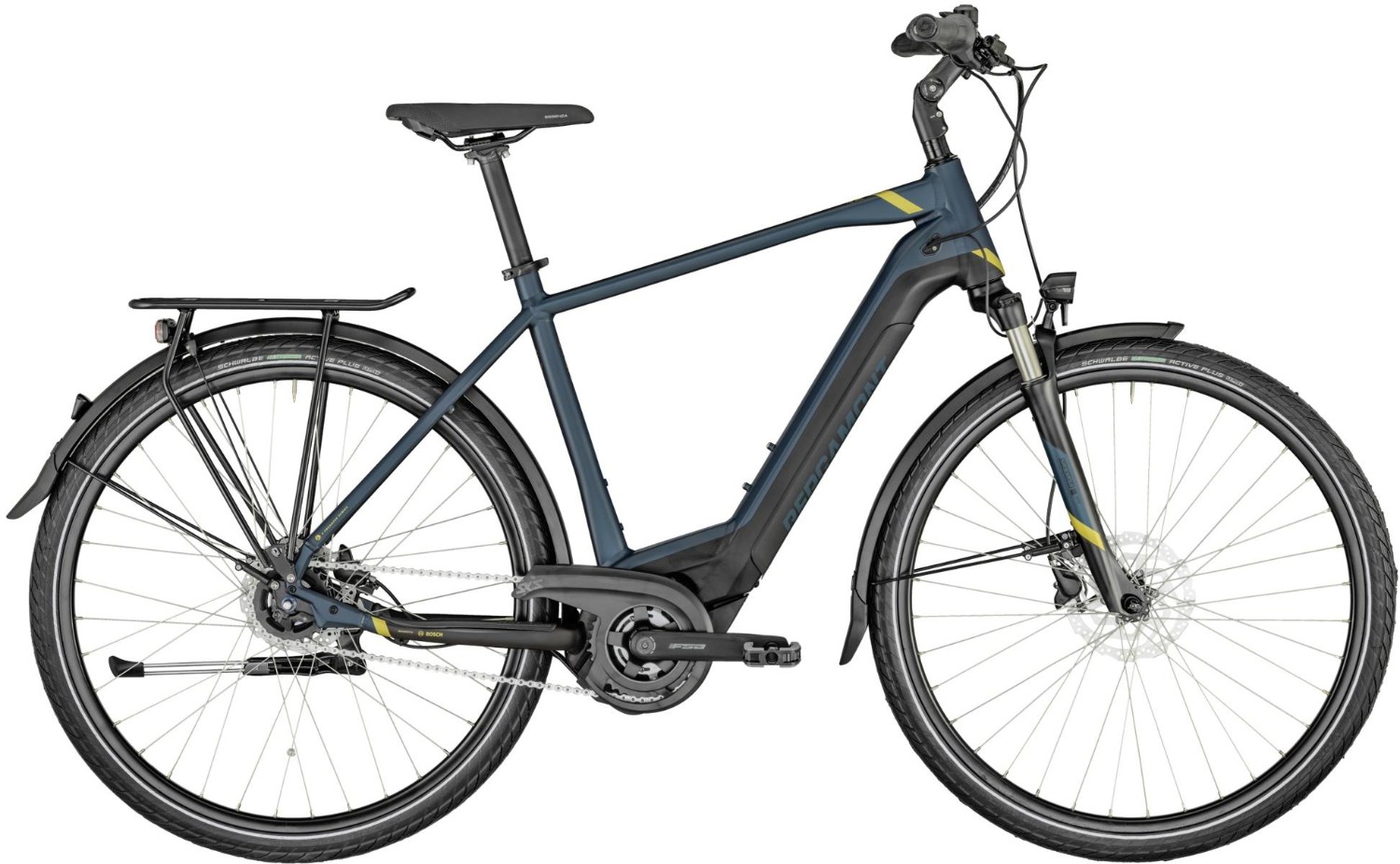

Bergamont E-Horizon N5e FH 500 2021 - Electric Hybrid Bike
Reliable E-Trekking all-rounder with modern Bosch PowerTube battery integration and E-bike-specific, low-maintenance Shimano N5e 5-speed hub gears with maximum deployment and outstanding shifting comfort.
Key Features:
- Low-maintenance Shimano Nexus 5-speed internal gear hub
- E-bike specific Schwalbe Energizer Active Plus tyres with maximum durability, low rolling resistance and perfect grip
- Comfortable Selle Royal Essenza Plus saddle and BGM Comfort lock-on grips
- Bosch Gen. 3 Performance Line Cruise Drive Unit
- Bosch 500 Wh integrated battery
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 28", ultra lite AL-6061 tubing, PowerTube battery |
| Fork | Suntour NCX D LO, 63 mm, lockout |
| Headset | FSA NO.57SC-1, A-Headset, semi-integrated, tapered |
| Stem | BGM Pro, adjustable, 17°-25° |
| Bars | BGM Pro, riserbar, backsweep: 15°, rise: 5 mm |
| Front Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160mm |
| Brake Lever | Shimano BL-MT200, hydraulic disc brake |
| Shifters | Shimano Nexus, SL-C7000, 5-speed, revo-shifter |
| Speed | 5 |
| Rims | Ryde Rival 23, disc, eyelets |
| Front Hub | Shimano, centerlock, disc, quick release |
| Rear Hub | Shimano Nexus, SG-C7000-5, freehub, centerlock, disc |
| Spokes | Sapim Leader |
| Front Tyre | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
| Rear Tyre | Schwalbe Energizer Active Plus, reflective stripe, 47-622 |
| Seat Post | BGM Pro |
| Saddle | Selle Royal Essenza Plus, gent |
| Chainset | FSA CK-200, 38t |
| Bottom Bracket | Bosch, Isis |
| Chain | KMC Z1eHX Wide EPT |
| Cassette | Shimano CS-C7000, 27t |
| Pedals | Trekking alloy |
| Battery Size (WH) | Bosch 36 V Li Ion, 500 Wh, PowerTube |
| Motor | Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h |
| User Interface | Bosch Purion |
Bergamont E-Horizon FS Speed/Elite/Expert/Edition 2021 Sizing
|
Size |
Height (cm) |
Height (inches) |
| 46 | < 165 - 167 | < 5'5 - 5'6 |
| 50 | 165 - 175 | 5'6 - 5'9 |
| 54 | 175 - 185 | 5'9 - 6'1 |
| 58 | 185 - < 195 | 6'1 - < 6'5 |
Bergamont E-Horizon Gent 2021 Sizing
|
Size |
Height (cm) |
Height (inches) |
| 48 | < 165 - 170 | < 5'5 - 5'7 |
| 52 | 170 - 177 | 5'7 - 5'10 |
| 56 | 177 - 187 | 5'10 - 6'2 |
| 60 | 187 - < 195 | 6'2 - < 6'5 |
Bergamont E-Horizon Lady/Amsterdam/Wave 2021 Sizing
|
Size |
Height (cm) |
Height (inches) |
| 44 | < 165 - 170 | < 5'5 - 5'7 |
| 48 | 170 - 177 | 5'7 - 5'10 |
| 52 | 177 - 187 | 5'10 - 6'2 |
| 56 | 187 - < 195 | 6'2 - < 6'5 |
What size frame do I need if I am between sizes? - read here
