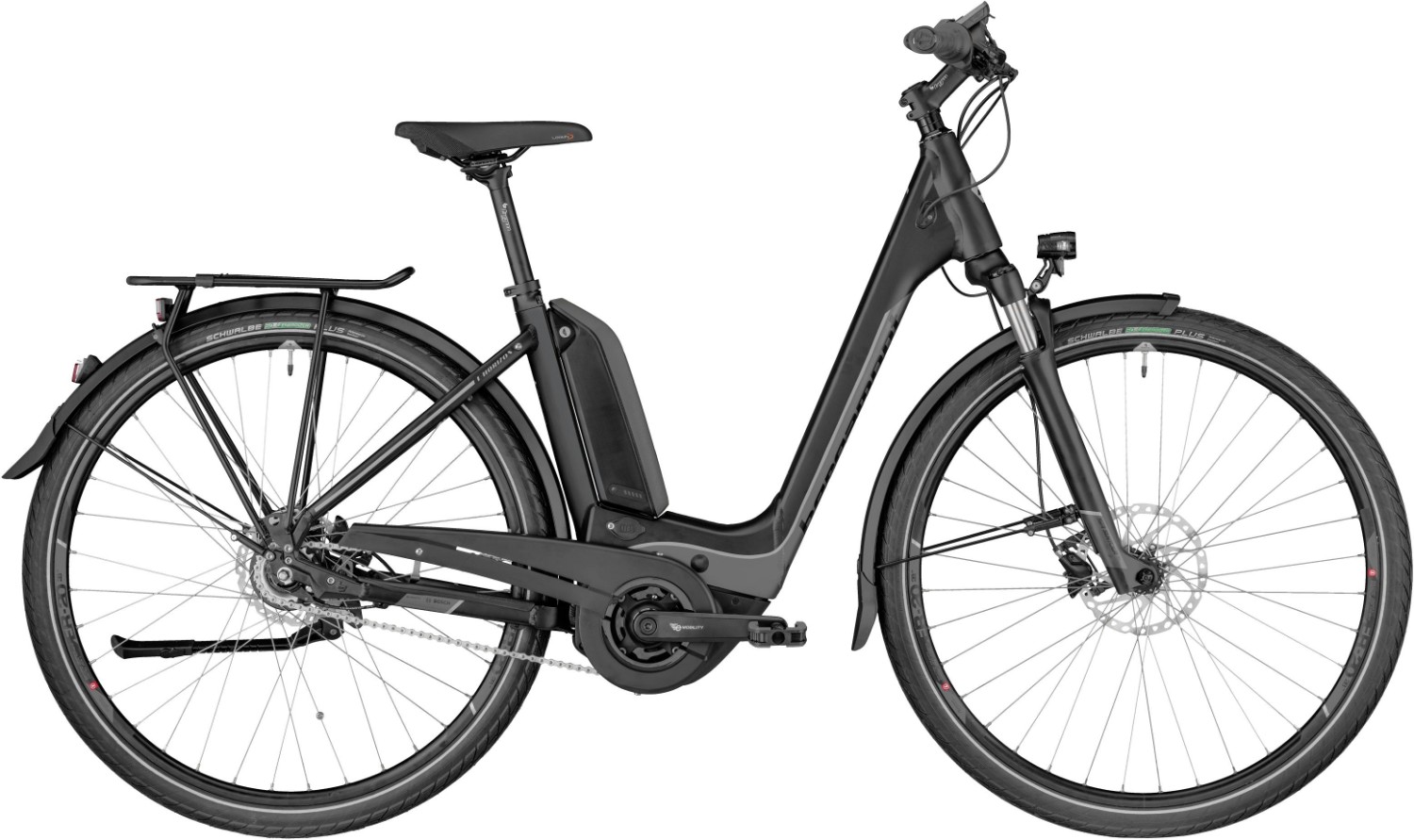

Bergamont E-Horizon N7 FH 400 Wave 2018 - Electric Hybrid Bike

Bergamont E-Horizon N7 FH 400 Wave 2018 - Electric Hybrid Bike

Out of Stock Sorry, you missed it. But you still have options...

Recommended alternatives We've found some items that may interest you...

Top Rated

Best Deals

New in Electric Urban Bikes

Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

Integration for all! The UNIVERSAL CHASSIS CONCEPT permits the tried-and-tested Bosch PowerPack technology to be integrated to its full potential – without making any compromises. The frame cover, which has been developed in-house, follows the clear-cut lines of the frame design, protects the battery from moisture and dust and allows the PowerPack to be installed and removed with ease. Alongside the Power Tube versions, the powerful Bosch engines deliver pure riding enjoyment and safe handling when combined with the optimised geometry and the disc brake system which is installed as standard.

Universal Chassis Concept
We always made an extra effort when creating frame geometries and features to achieve superior riding capabilities. Using this knowledge we created a universal e-bike frame platform that perfectly integrates modern batteries and drive units.

Clever Enginge Cover
We always aim to make what is good even better. This led us to design our very own, unique motor housing and bash guard for our e-bikes.

Finite Element Method
To simulate and analyze individual frame components even before the first samples are fabricated, the Bergamont engineers use the latest FEM computer software.

E.Drive System:
  • Motor: Bosch Drive Unit Active Line, for freewheel, 250W, 36V, max. 25 km/h
  • Display: Bosch Intuvia
  • Battery: Bosch 36 V Li Ion, 400 Wh, frame-type
  • Range: 400Wh: 45-175km, depending on assistance mode and riding conditions
  • Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+225%), Walk Assist (-5km/h)

Occasionally, without notice, manufacturers change product design and/or specifications.


Frame:28" E-bike, AL-6061 ultra lite butted tubing, T4/T6 heat treated, hydro fluid forming, double butted, 3D-dropout, tapered headtube, internal cable routing, Internal Battery, E-bike-comfort geometry
Fork:Suntour NEX HLO-P 28", 1 1/8", 63mm, coil, hydraulic lockout
Headset:FSA NO.57SC-1, A-Headset, semi integrated, tapered
Stem:BGM Pro, 17°-25°
Bars:BGM Pro, riser bar
Front Brake:Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 180mm
Rear Brake:Shimano BR-M315, hydraulic disc brake, SM-RT10 rotor: 160mm
Brake Lever:Shimano BL-M315, hydraulic disc brake
Shifters:Shimano Nexus, SL-C3000
Rims:Mach-1 ER-20, disc, eyelets
Front Hub:Shimano HB-M3050, center lock, disc, quick release
Rear Hub:Shimano Nexus, SG-C3001-7, freehub
Spokes:Sapim Leader, stainless, silver
Front Tyre:Schwalbe Energizer Plus, reflective stripe, 47-622
Rear Tyre:Schwalbe Energizer Plus, reflective stripe, 47-622
Seat Post:BGM Pro, 2-bolt design
Chainset:BGM Pro, 38t
Bottom Bracket:Bosch, Isis
Chain:KMC Z610HXRB, antirust, heavy duty
Cassette:Shimano, 20t
Pedals:Wellgo C128
