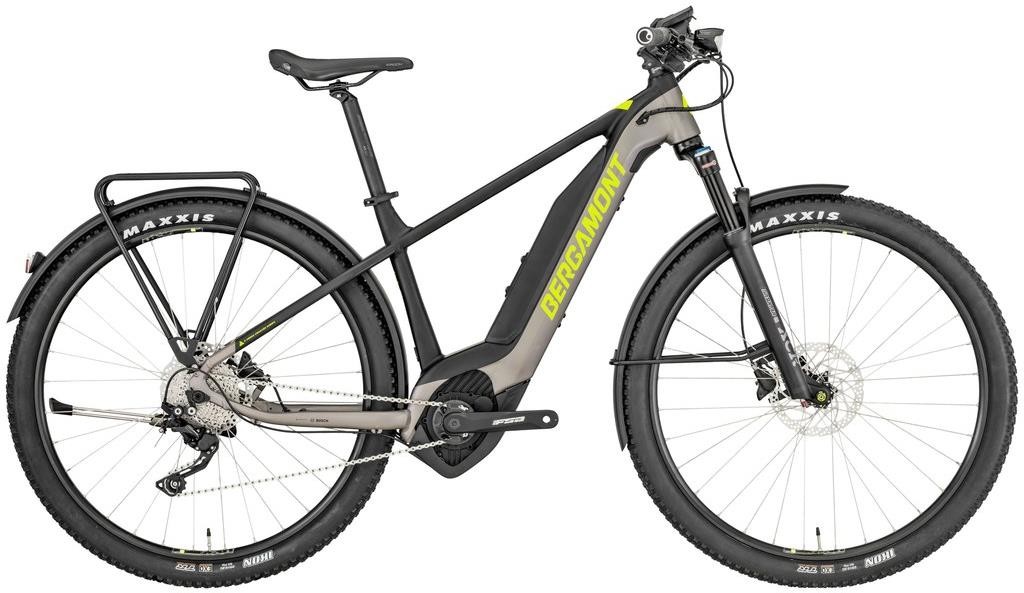

Bergamont E-Revox 7 EQ 29er 2019 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 29"/27.5" E-MTB, AL-6061 ultra lite tubing, internal cable routing, fender-mounting rivets, internal battery |
| Fork | Suntour XCR-32 Air, 1 1/8", 100mm, rebound adjust, 15x110mm axle |
| Headset | Acros AZX-212, A-Headset, semi-integrated, tapered |
| Stem | Syncros FL2.0, 60mm |
| Bars | Syncros FL2.0, riserbar, rise: 12mm, width: 740mm (frame size "S": 720mm) |
| Front Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/180mm |
| Brake Lever | Shimano BL-MT201, hydraulic disc brake |
| Front Mech | Shimano HB-MT400, centerlock, disc, 15x110mm axle |
| Rear Mech | Shimano FH-MT400, centerlock, disc, 12x148mm axle |
| Shifters | Shimano Deore, SL-M6000, 1x10-speed, rapidfire plus-shifter |
| Speed | 10 |
| Rims | Mach1 Karma, disc, eyelets, width: 21mm |
| Front Hub | Shimano HB-MT400, centerlock, disc, 15x110mm axle |
| Rear Hub | Shimano FH-MT400, centerlock, disc, 12x148mm axle |
| Spokes | Sapim Leader |
| Front Tyre | Maxxis Ikon, folding, Tubeless ready, 29x2.20" |
| Rear Tyre | Maxxis Ikon, folding, Tubeless ready, 29x2.20" |
| Seat Post | Syncros M3.0 |
| Saddle | Ergon SM10 E-Mountain Sport |
| Chainset | Shimano CS-HG50, 11-36T |
| Bottom Bracket | Bosch |
| Chain | KMC X10eS EPT |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 500 Wh |
| Motor | Bosch |
| User Interface | Bosch Intuvia |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Bergamont E-Revox 7 EQ 29er 2019 - Electric Mountain Bike.
This product is no longer available.
