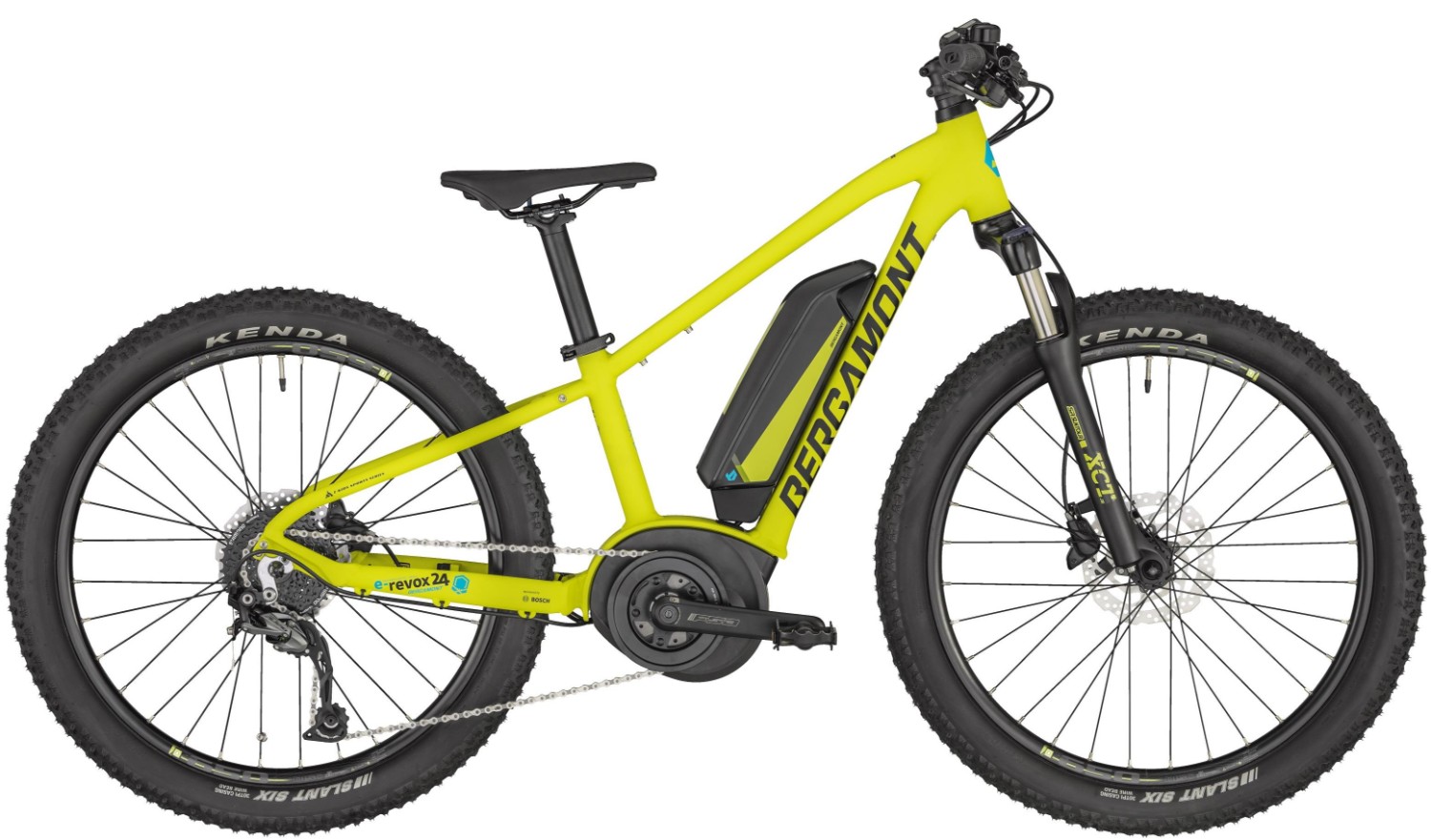

Bergamont E-Revox Junior 24w 2020 - Electric Mountain Bike
- Getting started in E-MTB riding is child's play with a child-specific frame geometry and safe 24" Plus tires.
- Permanent power with a Bosch Active Line drive unit and 400 Wh PowerPack battery
- 165 mm crank arm length makes pedalling easy for children
- Shimano hydraulic braking system with reliable braking performance
- Durable, adjustable Suntour XCT Plus suspension fork
- High-grade Syncros components
Frame | 24", ultra lite AL-6061 tubing, PowerPack battery |
Fork | Suntour XCT Air Plus, 70 mm, rebound adjust |
Rear Derailleur | Shimano RD-M4000, Shadow |
Shifter | Shimano SL-M2010, 1x9-speed, rapidfire plus-shifter |
Cassette | Shimano CS-HG200-9, 11-34t |
Chain | KMC e9S |
Crankset | FSA CK-400, with alloy cover, 36t, 155 mm |
Bottom Bracket | Bosch, Isis |
Motor | Bosch Drive Unit Active Line, Gen. 3, 250 W, 36 V, max. 20 km/h |
Battery | Bosch 36 V Li Ion, 400 Wh, PowerPack |
Display | Bosch Purion |
Assistance Modes | Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5 km/h) |
Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm |
Brake Levers | Shimano BL-MT200, hydraulic disc brake |
Rims | Mach1 650, disc, tubeless ready, width: 23 mm |
Front Hub | Shimano, centerlock, disc, quick release |
Rear Hub | Shimano, centerlock, disc, quick release |
Spokes | steel, black |
Tires | Kenda Slant Six, 24x2.60" |
Tubes | Kenda |
Headset | BGM, A-Headset |
Handlebar | Syncros M15, flatbar, width: 620 mm |
Stem | Syncros, length: 50 mm |
Grip | Syncros MTB |
Saddle | Syncros |
Seatpost | Syncros |
Pedals | VP |
Approx. weight | 19,8 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Bergamont E-Revox Junior 24w 2020 - Electric Mountain Bike.
This product is no longer available.
