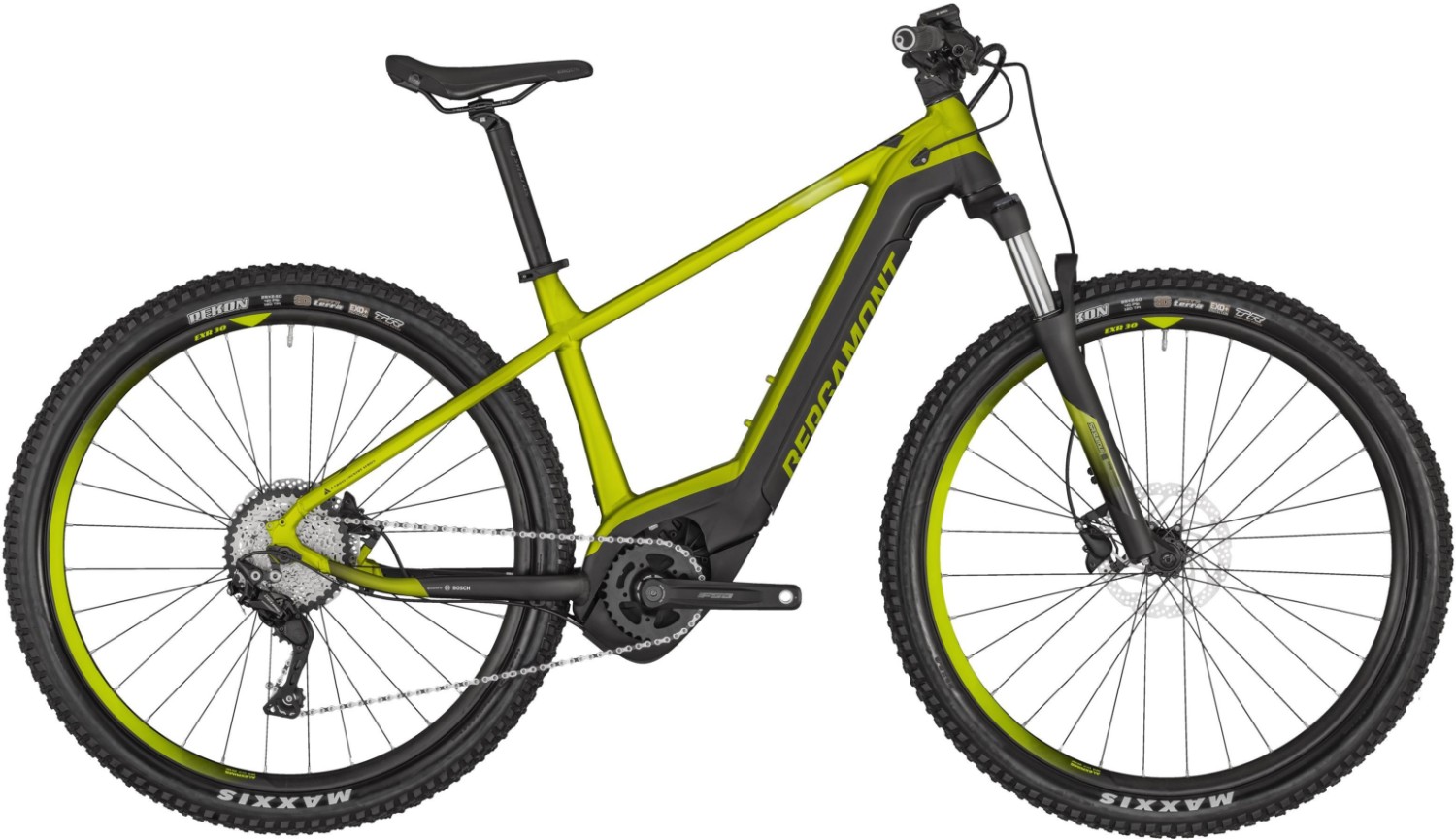

Bergamont E-Revox Sport 29" 2020 - Electric Mountain Bike
- Innovative e-hardtail featuring a Bosch PowerTube battery with maximum level of integration thanks to the revolutionary Universal Chassis Concept.
- Latest generation of the dynamic Bosch Performance Line drive unit
- Efficient and durable Shimano Deore shifting technology
- Shimano hydraulic braking system with reliable braking performance
Frame | 29", ultra lite AL-6061 tubing, PowerTube battery |
Fork | Suntour XCM 34, 100 mm, rebound adjust, 15x110 mm axle |
Rear Derailleur | Shimano Deore, RD-M6000, Shadow Plus |
Shifter | Shimano Deore, SL-M6000, 1x10-speed, rapidfire plus-shifter |
Cassette | Shimano CS-HG500, 11-42T |
Chain | KMC e10S |
Crankset | FSA CK-320, 34t, 170mm |
Bottom Bracket | Bosch, Isis |
Motor | Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h |
Battery | Bosch 36 V Li Ion, 500 Wh, PowerTube |
Display | Bosch Purion |
Assistance Modes | Eco (+50%), Tour (+120%), eMTB (+120 - 275%), Turbo (+275%), Walk Assist (-5 km/h) |
Brake | Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/180 mm |
Brake Levers | Shimano BL-MT201, hydraulic disc brake |
Rims | Alex EXR 30, disc, eyelets, width: 30 mm |
Front Hub | Shimano HB-MT400, centerlock, disc, 15x110 mm axle |
Rear Hub | Shimano FH-MT400, centerlock, disc, 12x148 mm axle |
Spokes | Sapim Leader |
Tires | Maxxis Rekon, 3C-EXO+, folding, Tubeless ready, 120 TPI, 29x2.60" |
Tubes | Schwalbe SV19FB Light |
Headset | Prestine PT F13X, A-Headset, semi-integrated, tapered |
Handlebar | Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S |
Stem | Syncros FL2.0, +/-6° |
Grip | Ergon GA20 |
Saddle | Ergon SM10 E-Mountain |
Seatpost | Syncros M3.0 |
Approx. weight | 23,5 kg |
Occasionally, without notice, manufacturers change product design and/or specifications.
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Bergamont E-Revox Sport 29" 2020 - Electric Mountain Bike.
This product is no longer available.
